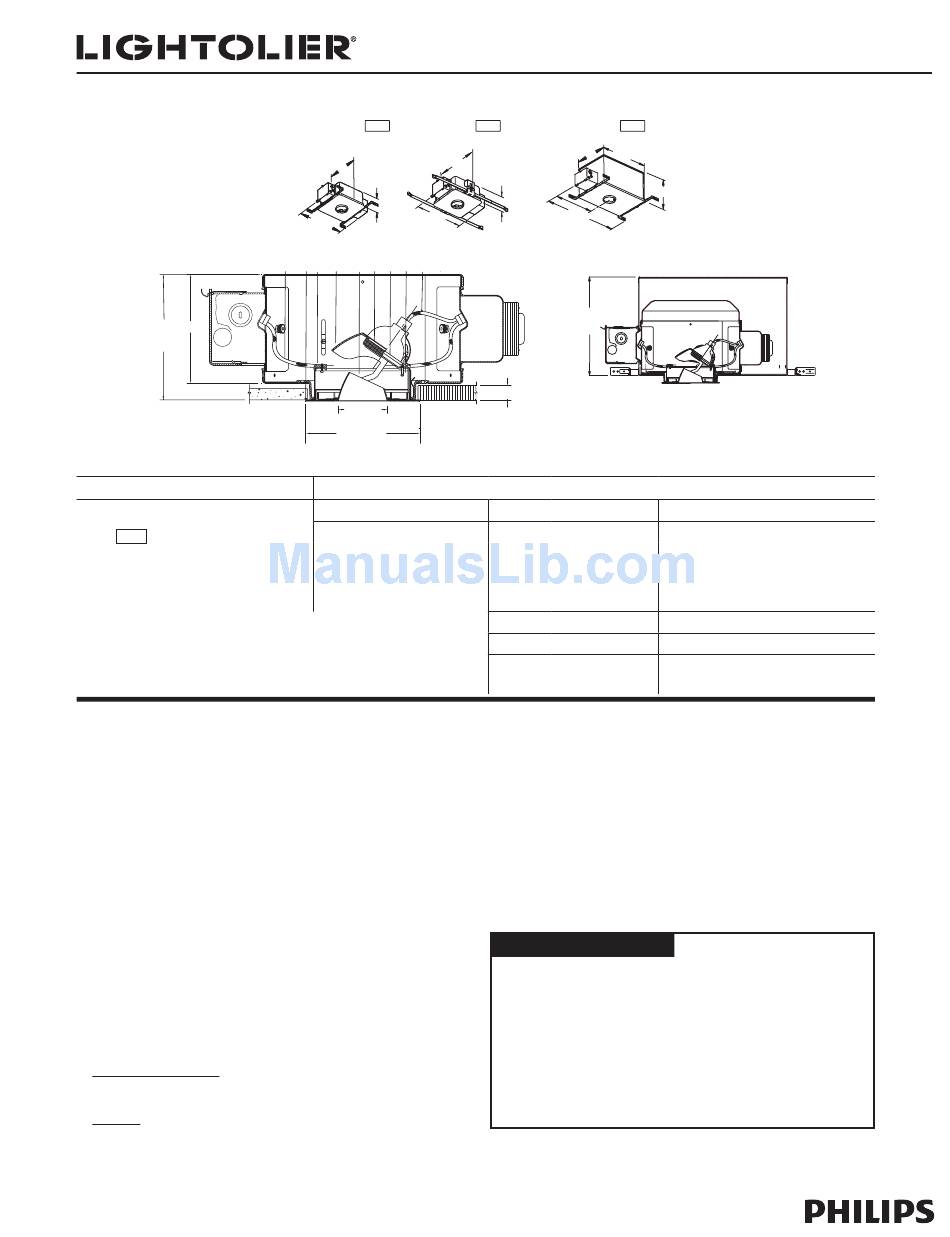

Page 1 of 2
* 6" min. is for up to 3/4" thick ceiling.
5 1/4"
6" min.*
6 1/2" max.
Ceiling Cutout: 5 1/16" (129 mm) Dia.
Reflector Trim
C4MR2 CLW
Specular Clear, White Flange
Add suffix. See options for
C4MR2
other finishes.
Note: Magnetic transformers may produce audible sound when used with
dimmers, which may be objectionable in acoustically critical areas.

Features

1. Aperture Cone: 16 ga. aluminum. 2" diameter reflector minimizes view into
the fixture. Permanently fastened to trim plate. Interchangeable with other
Evolution 4 1/2" low voltage trims.
2. Trim Plate: Die-cast aluminum plate (matte white) overlaps ceiling cutout for
clean look in finishing ceiling.
3. Lampholder Assembly: Die-cast aluminum. Built-in aperture shield blocks
view into fixture. 45° vertical tilt (35° max. with remodel Frame-In Kit), 360°
horizontal rotation; lockable. Hot aiming is possible using a phillips screwdriver.
Matte black finish. Lamp shield keeps interior of fixture dark.
4. Lamp Support: Die-formed aluminum with knurled surface for easy gripping
during relamping. Spring tension clips hold lamp and lens and allow fast
snap-in, snap-out relamping. Matte black finish. Accepts up to two 2" dia.
louver, color filter and spread lens accessories. (Two color filters cannot be
used together; primary color filters are not compatible).
5. Cover Glass: High temperature, tempered soft focus lens.
6. Vertical /Horizontal Locking: Single screw adjustment; independent
locking system.
7. Socket Harness: Porcelain bi-pin socket. Pre-wired with No. 18 Teflon
8. Power Harness: Provides power to transformer.
9. Frame-In Kit: Compatible frame-in kits are listed above. See separate
frame-in kit specification sheets for details.
Non-IC and Non-IC AirSeal
sides and wiring compartments, and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal
- Fixture may be in direct contact with insulation.
®
10. Maximum Ceiling Thickness: .875", 1.75" with C4TCA2 accessory
(see C4TCA2 specification sheet for details.)
Lightolier is a Philips group brand
C4ALV
9 5/8"
(245mm)
5" (127mm)
14 3/8"
(365mm)
2
6
3
4 5
8
1
2 3/8"
Dia.
5 7/16"
Dia.
Frame-In Kit
Non-IC 120V/277V
C4LVMU
Magnetic 120/277V
C4LVE1
Electronic 120V
C4LVE2
Electronic 277V
42-75W
MR16(12V)
- Insulation must be kept 3" away from fixture
®
Calculite
Evolution Adjustable Pinhole
®
C4LV
C4AICLV
10 1/8"
(257mm)
12 5/8"
(321mm)
11 3/16"
5" (127mm)
(284mm)
22 3/8"
14 3/8"
(568mm)
(365mm)
6
7
9
9 1/4"
.875" Max. Ceiling Thk.
C4MR2CLW / C4LV or
C4MR2CLW / C4ALV
Non-IC AirSeal
120V/277V
®
C4ALVMU Magnetic 120/277V
C4ALVE1
Electronic 120V
42-75W
Lensed, Horizontal
MR16(12V)

Lamping

Remodel Frame-In Kit

Non-IC 120V
C4LVE1RM 50W Max.
MR16 (12V)
Options & Accessories

Reflector Finishes

Clear: CL
Comfort Clear Diffuse: CCD
Champagne Bronze: CCZ
Gold: GD
White: WH
Black: BK
Labels
CULUS Listed (Suitable for damp locations), I.B.E.W.
Teflon
is a registered trademark of E.I. DuPont.
®
US and Foreign Patents Pending.
Job Name:
Cat. No.:
leads.
®
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • H0808
2" Aperture Pinhole MR16 Reflector Trim
14 5/8"
(372mm)
9" (229mm)
C4MR2CLW / C4AICLV
IC AirSeal
120V
®
C4AICLVM1
Magnetic 120V
C4AICLVE1
Electronic 120V
20-50W
MR16(12V)
See separate specification sheet for more
information.

Flange Options

White: W
Type:
C4MR2
