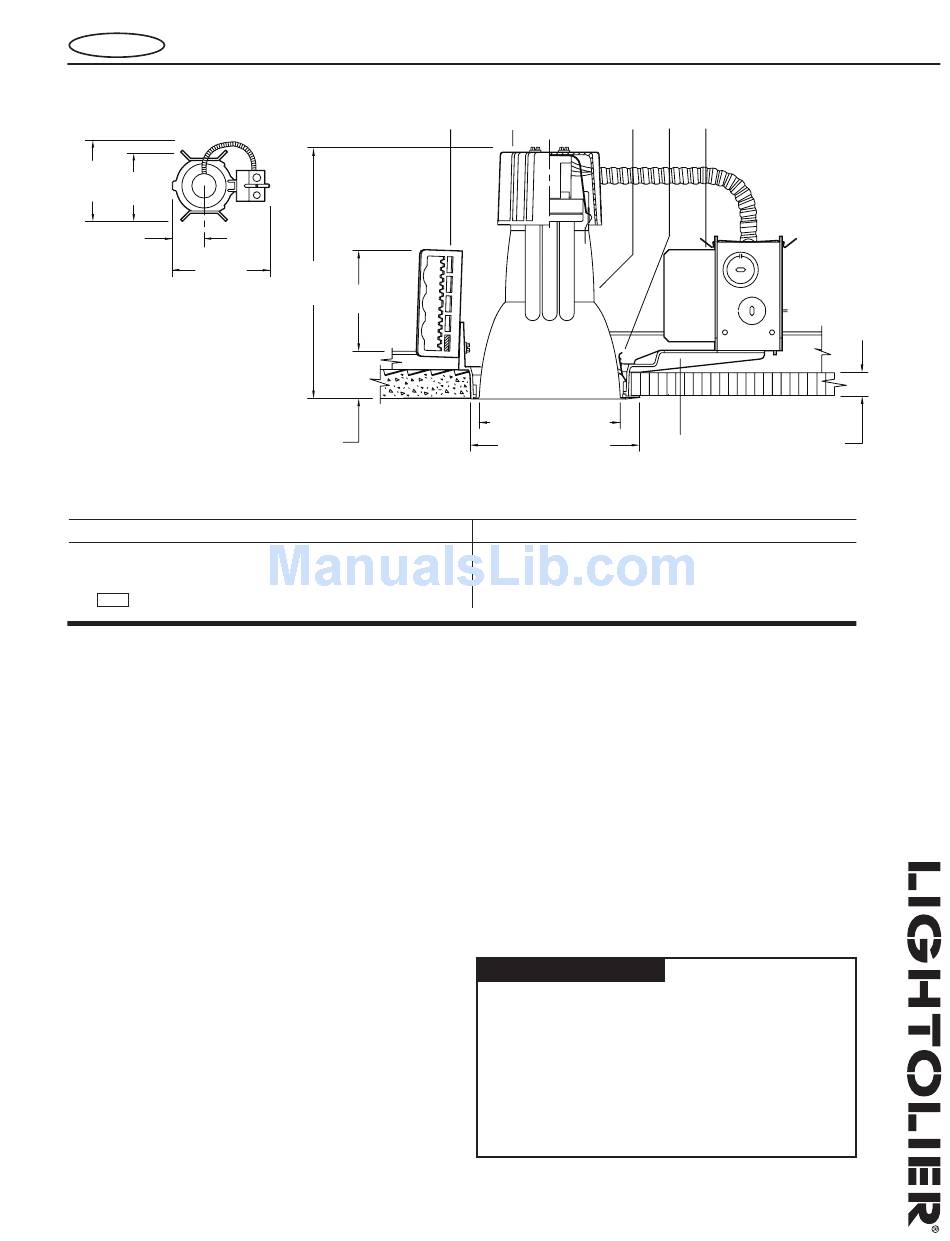

Lightolier Compact 8011 Specification

Page 1 of 2
11 1/2"
8 1/16"
(292 mm)
(210 mm)
3 3/8"
(86 mm)
10 1/2"
(267 mm)
Top View
Ceiling Cutout: 5 1/16" (129 mm) Dia.
Reflector Trim
8011CCLW Comfort Clear , White Flange
™
8011CCLP Comfort Clear , Polished Flange
™
8011CCL Comfort Clear , Molded Trim Ring
™
8011 Add suffix. See options for other finishes.
Features
1. Reflector: 16 ga. Alzak aluminum, 50° visual cutoff to lamp and lamp
®
image, medium distribution. Comfort Clear
flanged or flangeless with molded white trim ring (field paintable).
2. Socket Cup: Die-cast aluminum cup effectively dissipates heat and
positions lamp holder. Snaps onto reflector neck to assure consistently
correct optical alignment without tools.
3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector
to mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90°C
supply conductors.

Options and Accessories

Comfort Clear Finishes
™ 1
Diffuse CCD
Champagne Bronze CCZ
Other Finish
WH
White
Specular Clear CL
Specify desired flange
1
W White, P Polished
Blank - Molded Ring
Calculite Compact Fluorescent Open Downlight
®
18W
8 1/8"
3"
(207 mm)
(76 mm)
1" (25 mm) min.
2 1/8" (54 mm) max.
low iridescence finish. Self-
™
4 1/2" Aperture Triple Tube Vertical Lamp
5
2
4 1/2" (115 mm) Dia.
Flush Overlap
5" (127 mm) 5 3/4" (147 mm)
Frame-In Kit
4118VU Electronic 120V - 277V
Options and Accessories (continued)
Emergency Add suffix EM
Chicago Plenum Add suffix LC
Emergency Ltg. Kit FA EM3E*
FA EM4E*
Add suffix F
Fuse (Slow Blow)
*See Spec. Sheet: FAEM
Mounting Bars & Accessories; see Specification Sheet MBA. Sloped Ceiling
Adapters; see Specification Sheet SCA.
IC Frame available; see C4CFL18 Specification Sheet.
Labels
UL listed for damp locations, I.B.E.W.
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
4 6
1
1 1/8" (29 mm) max.
3
Ceiling Thickness
Lamp
18W Triple Tube
4-Pin (Amalgam)
Type:
www.lightolier.com
8011
