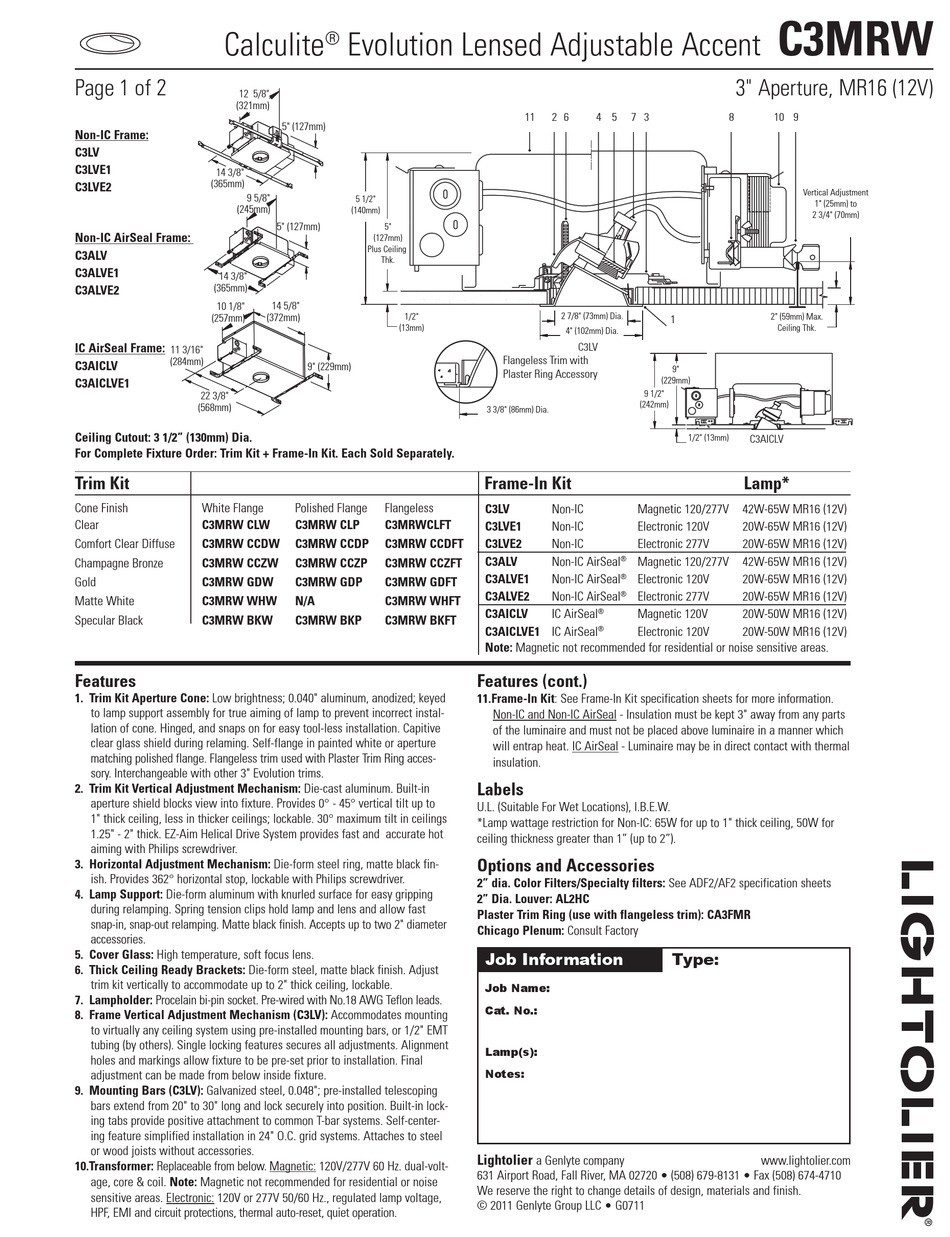

Lightolier Calculite C3MRW Specification

Spec. Sheet
Calculite
C3MRW
Page 1 of 2
12 5/8"
(321mm)
Non-IC Frame:
Non-IC:
C3LV
C3LV
C3LVE1
C3LVE1
14 3/8"
C3LVE2
(365mm)
C3LVE2
9 5/8"
(245mm)
Non-IC AirSeal Frame:
Non-IC AirSeal:
C3ALV
C3ALV
C3ALVE1
C3ALVE1 C3ALVE2
14 3/8"
(365mm)
C3ALVE2
10 1/8"
(257mm)
IC AirSeal Frame:
11 3/16"
IC AirSeal:
(284mm)
C3AICLV
C3AICLV
C3AICLVE1
22 3/8"
(568mm)
Ceiling Cutout: 3 1/2" (130mm) Dia.
For Complete Fixture Order: Trim Kit + Frame-In Kit. Each Sold Separately.
Spec. Sheet
Trim Kit
C3MRW
Cone Finish White Flange
Clear C3MRW CLW
Comfort Clear Diffuse C3MRW CCDW
Champagne Bronze C3MRW CCZW
Gold C3MRW GDW
Matte White C3MRW WHW
Specular Black C3MRW BKW
Features
1. Trim Kit Aperture Cone: Low brightness; 0.040" aluminum, anodized; keyed
to lamp support assembly for true aiming of lamp to prevent incorrect instal-
lation of cone. Hinged, and snaps on for easy tool-less installation. Capitive
clear glass shield during relaming. Self-flange in painted white or aperture
matching polished flange. Flangeless trim used with Plaster Trim Ring acces-
sory. Interchangeable with other 3" Evolution trims.
2. Trim Kit Vertical Adjustment Mechanism: Die-cast aluminum. Built-in
aperture shield blocks view into fixture. Provides 0° - 45° vertical tilt up to
1" thick ceiling, less in thicker ceilings; lockable. 30° maximum tilt in ceilings
1.25" - 2" thick. EZ-Aim Helical Drive System provides fast and accurate hot
aiming with Philips screwdriver.
3. Horizontal Adjustment Mechanism: Die-form steel ring, matte black fin-
ish. Provides 362° horizontal stop, lockable with Philips screwdriver.
4. Lamp Support: Die-form aluminum with knurled surface for easy gripping
during relamping. Spring tension clips hold lamp and lens and allow fast
snap-in, snap-out relamping. Matte black finish. Accepts up to two 2" diameter
accessories.
5. Cover Glass: High temperature, soft focus lens.
6. Thick Ceiling Ready Brackets: Die-form steel, matte black finish. Adjust
trim kit vertically to accommodate up to 2" thick ceiling, lockable.
7. Lampholder: Procelain bi-pin socket. Pre-wired with No.18 AWG Teflon leads.
8. Frame Vertical Adjustment Mechanism (C3LV): Accommodates mounting
to virtually any ceiling system using pre-installed mounting bars, or 1/2" EMT
tubing (by others). Single locking features secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below inside fixture.
9. Mounting Bars (C3LV): Galvanized steel, 0.048"; pre-installed telescoping
bars extend from 20" to 30" long and lock securely into position. Built-in lock-
ing tabs provide positive attachment to common T-bar systems. Self-center-
ing feature simplified installation in 24" O.C. grid systems. Attaches to steel
or wood joists without accessories.
10.Transformer: Replaceable from below. Magnetic: 120V/277V 60 Hz. dual-volt-
age, core & coil. Note: Magnetic not recommended for residential or noise
sensitive areas. Electronic: 120V or 277V 50/60 Hz., regulated lamp voltage,
HPF, EMI and circuit protections, thermal auto-reset, quiet operation.
Evolution Lensed Adjustable Accent
®
5" (127mm)
5 1/2"
(140mm)
5" (127mm)
5"
(127mm)
Plus Ceiling
Thk.
14 5/8"
(372mm) 1/2"
(13mm)
9" (229mm)
Polished Flange Flangeless
C3MRW CLP C3MRWCLFT
C3MRW CCDP C3MRW CCDFT
C3MRW CCZP C3MRW CCZFT
C3MRW GDP C3MRW GDFT
N/A C3MRW WHFT
C3MRW BKP C3MRW BKFT
11 2 6 4 5 7 3
2 7/8" (73mm) Dia.
4" (102mm) Dia.
C3LV
Flangeless Trim with
Plaster Ring Accessory
9 1/2"
(242mm)
3 3/8" (86mm) Dia.
Frame-In Kit
C3LV Non-IC Magnetic 120/277V
C3LVE1
Non-IC Electronic 120V
C3LVE2 Non-IC Electronic 277V
C3ALV Non-IC AirSeal Magnetic 120/277V
®
C3ALVE1 Non-IC AirSeal Electronic 120V
®
C3ALVE2 Non-IC AirSeal Electronic 277V
®
C3AICLV
IC AirSeal ® Magnetic 120V
C3AICLVE1 IC AirSeal Electronic 120V
®
Note: Magnetic not recommended for residential or noise sensitive areas.
Features (cont.)
11. Frame-In Kit: See Frame-In Kit specification sheets for more information.
Non-IC and Non-IC AirSeal - Insulation must be kept 3" away from any parts
of the luminaire and must not be placed above luminaire in a manner which
will entrap heat. IC AirSeal - Luminaire may be in direct contact with thermal
insulation.
Labels
U.L. (Suitable For Wet Locations), I.B.E.W.
*Lamp wattage restriction for Non-IC: 65W for up to 1" thick ceiling, 50W for
ceiling thickness greater than 1" (up to 2").

Options and Accessories

2" dia. Color Filters/Specialty filters: See ADF2/AF2 specification sheets
2" Dia. Louver: AL2HC
Plaster Trim Ring (use with flangeless trim): CA3FMR
Chicago Plenum: Consult Factory
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • G0711
C3MRW
3" Aperture, MR16 (12V)
8 10 9
Vertical Adjustment
1" (25mm) to
2 3/4" (70mm)
2" (59mm) Max.
1
Ceiling Thk.
9"
(229mm)
1/2" (13mm) C3AICLV
Lamp*
42W-65W MR16 (12V)
20W-65W MR16 (12V)
20W-65W MR16 (12V)
42W-65W MR16 (12V)
20W-65W MR16 (12V)
20W-65W MR16 (12V)
20W-50W MR16 (12V)
20W-50W MR16 (12V)
Type:
www.lightolier.com
