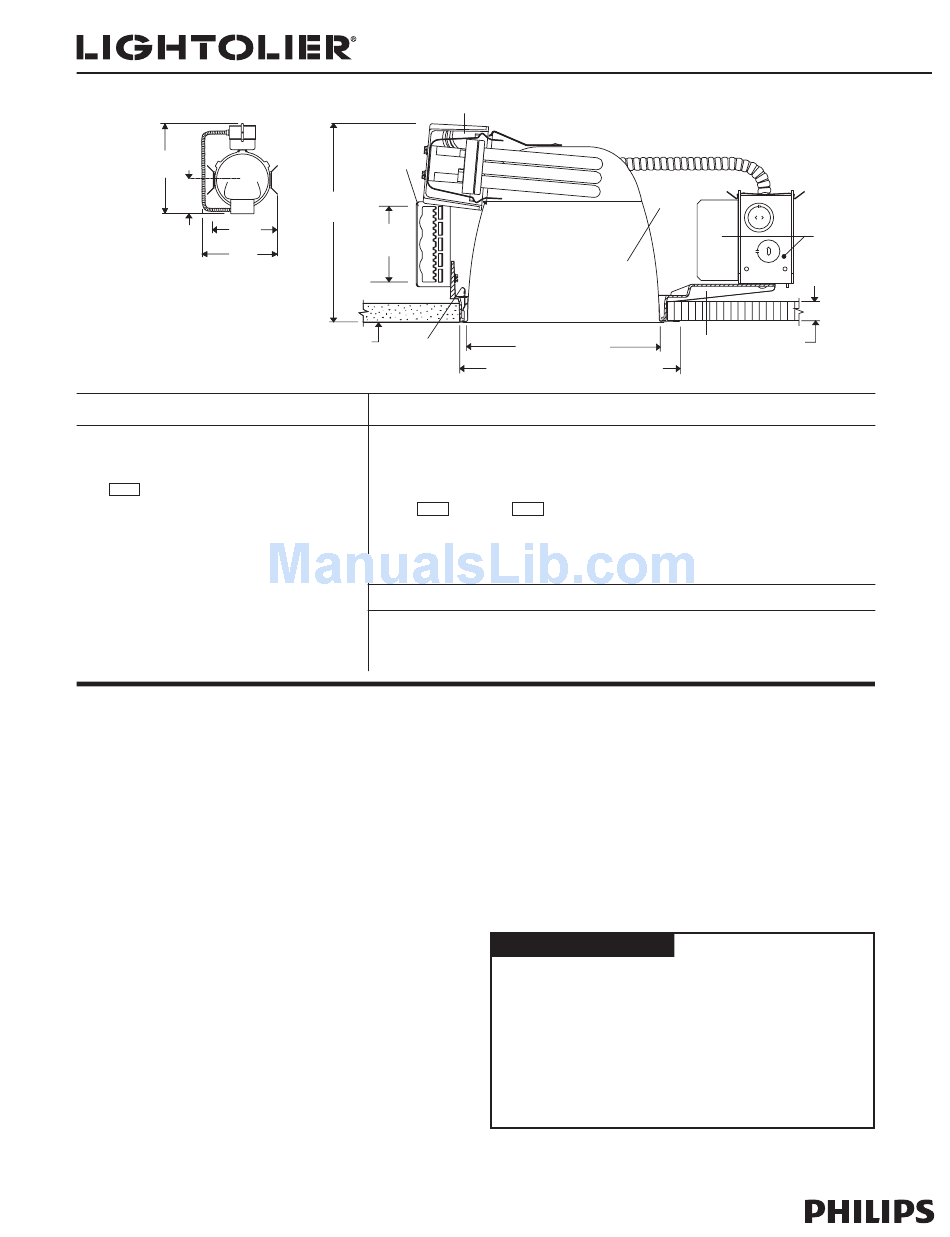

Lightolier Calculite 8037 Specification

Page 1 of 2
15"
(381 mm)
5 3/4"
(146 mm)
Ceiling Cutout: 8" (203 mm) Dia.
Reflector Trim
8037CLW Clear Iridescence Free, White Flange
8037CLP Clear Iridescence Free, Polished Flange
8037CL Clear Iridescence Free, Molded Trim Ring
8037 Add suffix. See options for other finishes.
Features
1. Reflector: 16 ga. Alzak
image, wide distribution. Iridescence Free finish. Self-flanged or flangeless
with molded white trim ring (field paintable).
2. Socket Cup: Snaps onto reflector neck to assure consistently correct
optical alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector
to mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
Electrical
Note: Note: For ballast electrical data and latest lamp/ballast compatibility refer
to "Ballast" specification sheet for complete electrical data.
UL Listed for through branch circuit wiring with max of (8) No 12 AWG, 90
degree C supply conductors.

Options and Accessories

Comfort Clear Finishes
™
Clear CCL
Diffuse CCD
Champagne Bronze CCZ
Specify desired flange
1
W White, P Polished
Blank - Molded Ring
Lightolier is a Philips group brand
7 3/4"
(197 mm)
11 3/8"
(289 mm)
(76 mm)
12"
(318 mm)
Top View
1" (25 mm) min.-
2 1/8" (54 mm) max.
(Ceiling Runner)
Frame-In Kit
S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7132BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S7132B
CU3
J2LD3
J1MX
Other dimming product available, please consult factory
Remodeler Frame-In Kits
7126BURM
7132BURM
7142BURM
aluminum, 55° visual cutoff to lamp and lamp
®
Other Finishes
1
White WH
Multigroove MG
Calculite
2
5
3"
7 3/8" (187 mm) Dia.
4
7 7/8" Trimless
(200 mm)
or S7142B
Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
Lutron 5% Dimming (277V)
Mark 10 Dimming (120V)
7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
Emergency
Chicago Plenum
Existing/Thk. Ceiling FA EC7*
Emergency Ltg. Kit
Fuse (Slow Blow)
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
UL listed for damp locations, I.B.E.W.
Alzak is a registered trademark of ALCOA
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0209
CFL Open Downlight
®
7 3/8" Triple Tube Horizontal Lamp
1
1 1/8" (29 mm) max.
3
Ceiling Thickness
8 5/8" Self-Flanged Trim
(209 mm)
JUM7 Mark 7 Dimming (120/277V)
J2MX Mark 10 Dimming (277V)
Add suffix EM*
Add suffix LC
FA EM3E*
FA EM4E*
Add Suffix F
Type:
8037
6
