Lightolier Walmaster WMRL244120SB Specification

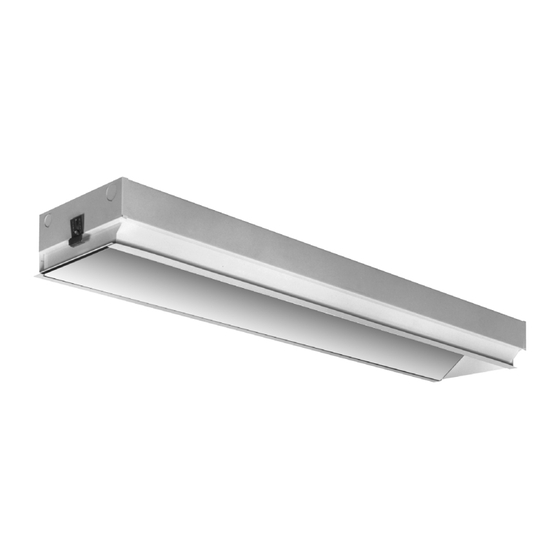

High performance, 4', recessed wallwasher/accent light two twin-tube tt5 lamps
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
Page 1 of 2
Features
• Low iridescent semi-specular reflective system for precise
controlled light output.
• Evenly lights vertical surfaces or displays (no scallops).
• 87% energy savings vs. incandescent.
• Less than 3:1 maximum to minimum wall illumination when
installed 6 feet on center.
• 20,000 hours lamp life requires less maintenance than incandescent.
• Can be installed only 2 feet from wall to farthest edge of fixture (3'
maximum.
• Fits all standard and narrow grid ceiling systems.
• One-piece body and integral hanger for easy, quick installation.
• UL-Listed access plate.
• Meets NYC Code requirements.
Features
Mounting Methods
narrow grid.
1-1/2"
standard grid
1-1/2"
9/05
High Performance, 4', Recessed Wallwasher/Accent Light
integral hanger
WMRL244120SB
Walmaster
Dimensions
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 a Genlyte company
Two Twin-Tube TT5 Lamps
Type:
www.lightolier.com
Section 5/Folio K10-16 Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Walmaster WMRL244120SB and is the answer not in the manual?

Questions and answers

Related Manuals for Lightolier Walmaster WMRL244120SB

Summary of Contents for Lightolier Walmaster WMRL244120SB

  • Page 1 Job Name: Cat. No.: Lamp(s): Volts/Ballast: 1-1/2" Lightolier a Genlyte Company www.lightolier.com Technical Information: (978) 657-7600 • Fax (978) 658-0595 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

  • Page 2: Specifications

    Job Information Type: Electrical: Rapid start HPF, thermally protected class “P” ballast (Biax type). If K.O. is within 3" of ballast, use wire suitable for at least 90°. Lightolier a Genlyte Company www.lightolier.com Labels: I.B.E.W./UL and ULc Listed. Technical Information: (978) 657-7600 • Fax (978) 658-0595 631 Airport Road, Fall River, MA 02720 •...
