Lightolier SLB2SFSVA432 Specification page 2

SLB Surface Box 2' x 4' Fluorescent
Page 2 of 2

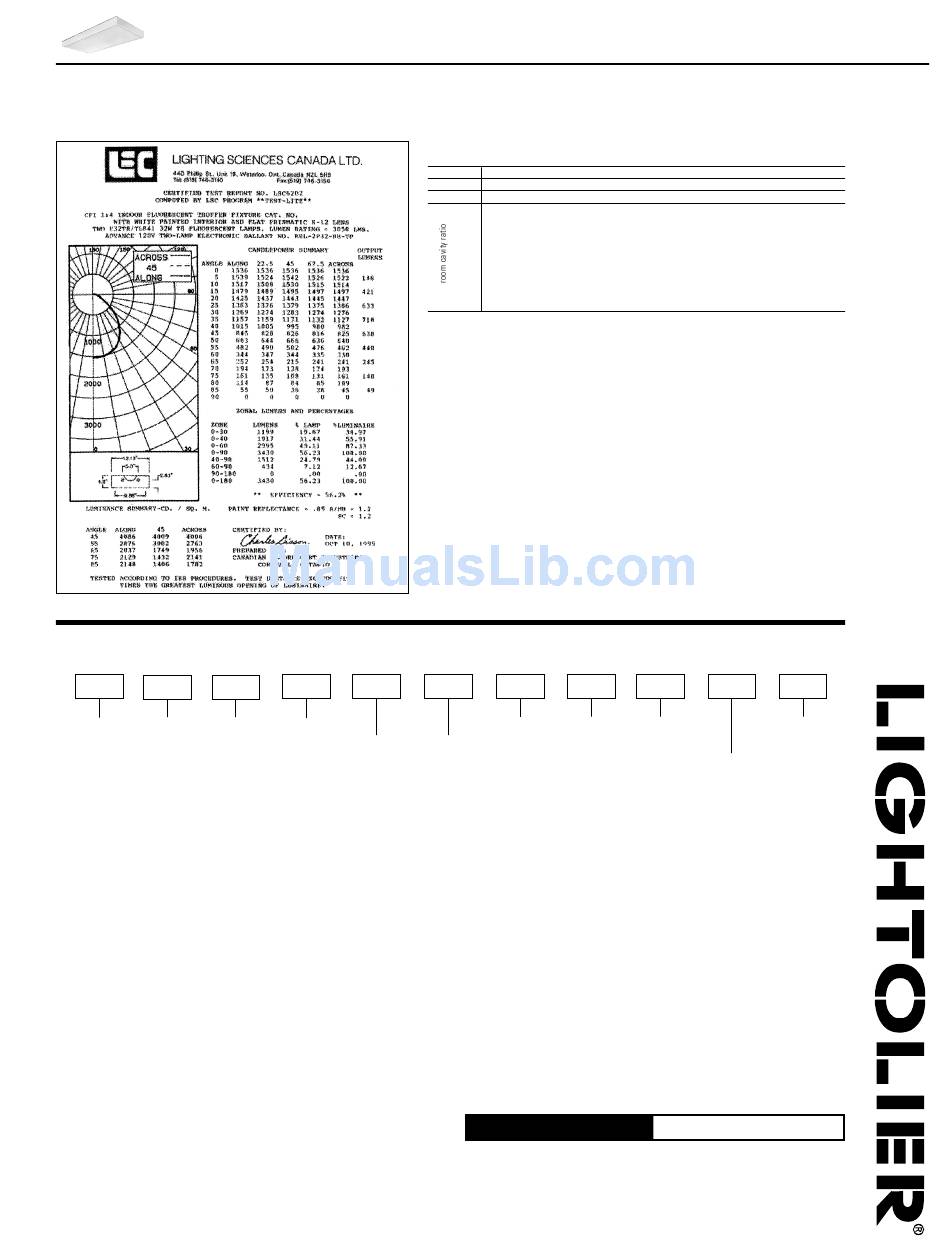

Photometry
Ordering Information
Explanation of Catalog Number. Example: SLB2SFSVA432120O4
SL
B 2
SLB Surface:
Body Style: Fixture
Lens Frame
Surface Box Width
Surface
Fluorescent
Options & Accessories
Fusing: Internal fast-blow fusing. Suffix: GLR.
Internal slow-blow fusing. Suffix: GMF.
Electrical/Wiring Options: Consult factory.
Radio Interference Filter: 120 or 277 volt, 50 or 60 Hz. One per fixture.
Suffix: R. One per ballast, Suffix: B.
Stem and Canopy Sets: Suspends fixture 6", 12" 18" or 24" from surface. (Four
per fixture is recommended. Catalog Number: ASC6 CSP (6"), ASC12 CSP (12"),
ASC18 CSP (18"), ASC24 CSP (24").
Specifications
Performance: In an installation of 4 lamp 32W luminaires in a room cavity
ratio of 1, with a reflectance of 80% ceiling, 50% wall, 20% floor, the C.U. shall
not be less than .60. To prevent glare the average brightness at 65° shall not
exceed 2457 candelas per square meter. To control veiling reflections, luminaire
output in the 30–90° zone shall be not less than 68%.
Materials: Chassis parts are die-formed 20 gauge cold rolled steel.
Finish: White baked polyester powder coat.
Electrical: Thermally protected class "P" ballast C.B.M. approved, non PCB. If
K.O. is within 3" of ballast, use wire suitable for at least 90°.
Labels: I.B.E.W./UL and C-UL.
Flat Steel or Regressed Aluminum Frame, 2, 3, or 4 Lamp T8 or T12
Model No. SLB2SFSVA432120O4
coefficients of utilization — zonal cavity method
SLB2SFSVA432120O4
S VA
Ceiling Type:
S = Surface
Lens Lens
Frame: Shielding Type:
FS = Flush full- VA = Pattern 12
size steel lens, .095"
frame nominal pris-
RA = Regressed matic lens
flush full- (standard).
size see options
aluminum and consult
frame factory.
RF 20
RC 80
RW 70 50 30 50
1 74 71 69 67
2 68 64 60 60
3 63 57 52 54
4 58 51 46 49
5 54 46 40 44
6 50 41 36 40
7 46 37 32 36
8 42 34 30 32
9 39 30 25 29
10 36 28 22 26
Lamp Lamp/Fixture
Quantity: Length:
2 = 2 Lamp 32 = T8
3 = 3 Lamp 34 = T12
4 = 4 Lamp (Nominal 48")
Job Information
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2002 Lightolier
