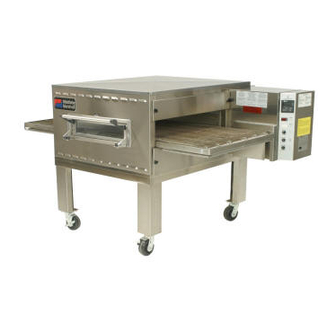

Middleby Marshall PS540G SERIES Parts Manual

Middleby Marshall PS540G SERIES Parts Manual

Domestic and standard export ovens, wiring diagrams
Hide thumbs Also See for PS540G SERIES:

Advertisement

Quick Links

A MIDDLEBY COMPANY
Parts Manual
with Wiring Diagrams
for domestic and standard export ovens
©2005 Middleby Marshall Inc.
Table of Contents: Page 2
www.middleby.com
email: techsupport@middleby.com
1-847-741-3300 fax 1-847-741-4406 (Parts Department)
PS540G SERIES GAS FIRED:
SPL100505-PF-BD
October 5, 2005
Serial Tag Location
PS540G-Double-
Shown with "New
Style" Front Window
Assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS540G SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Middleby Marshall PS540G SERIES

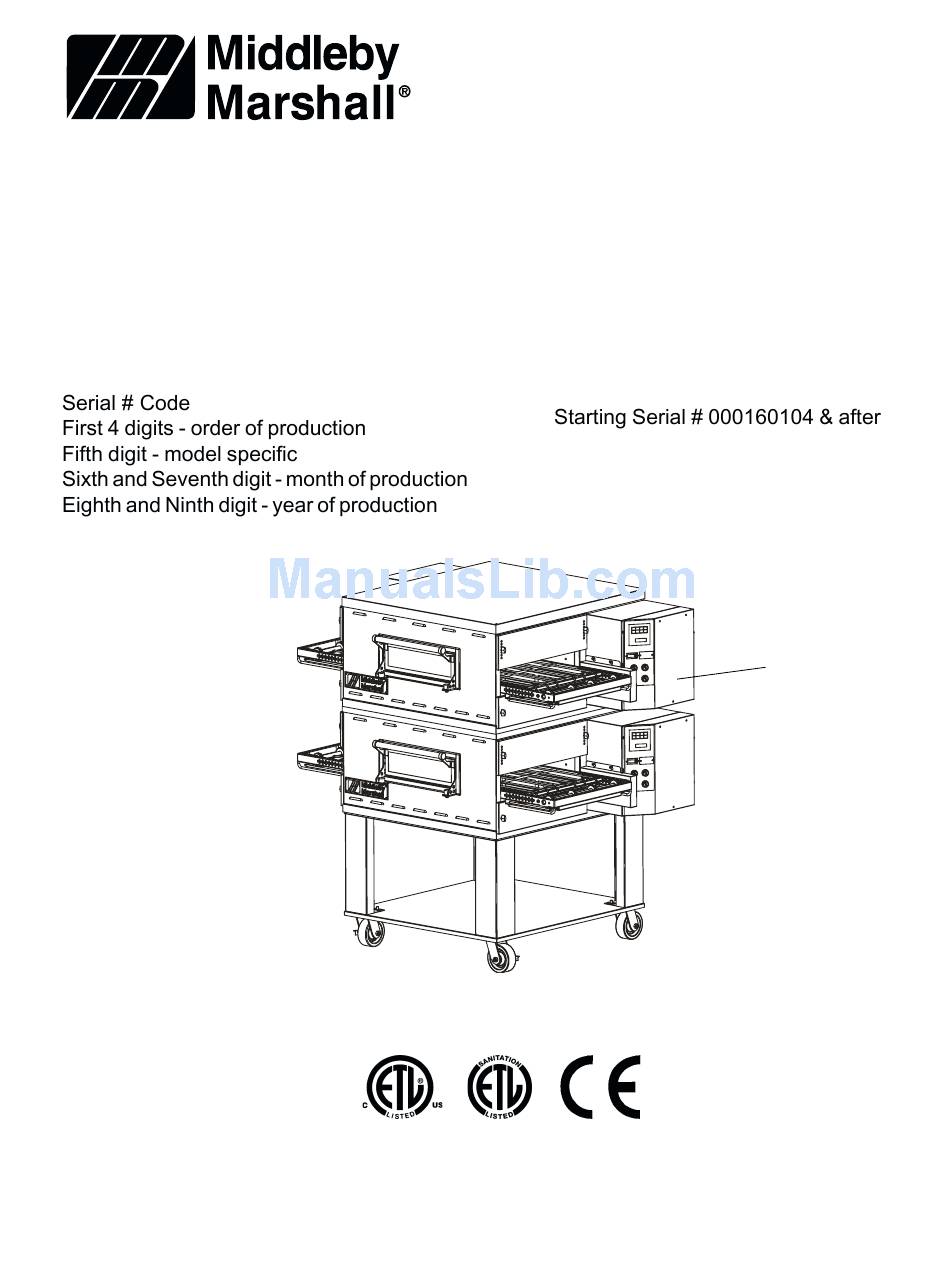

  • Page 1 PS540G SERIES GAS FIRED: SPL100505-PF-BD October 5, 2005 A MIDDLEBY COMPANY Parts Manual with Wiring Diagrams for domestic and standard export ovens Serial Tag Location PS540G-Double- Shown with “New Style” Front Window Assembly. Table of Contents: Page 2 www.middleby.com email: techsupport@middleby.com 1-847-741-3300 fax 1-847-741-4406 (Parts Department) ©2005 Middleby Marshall Inc.
