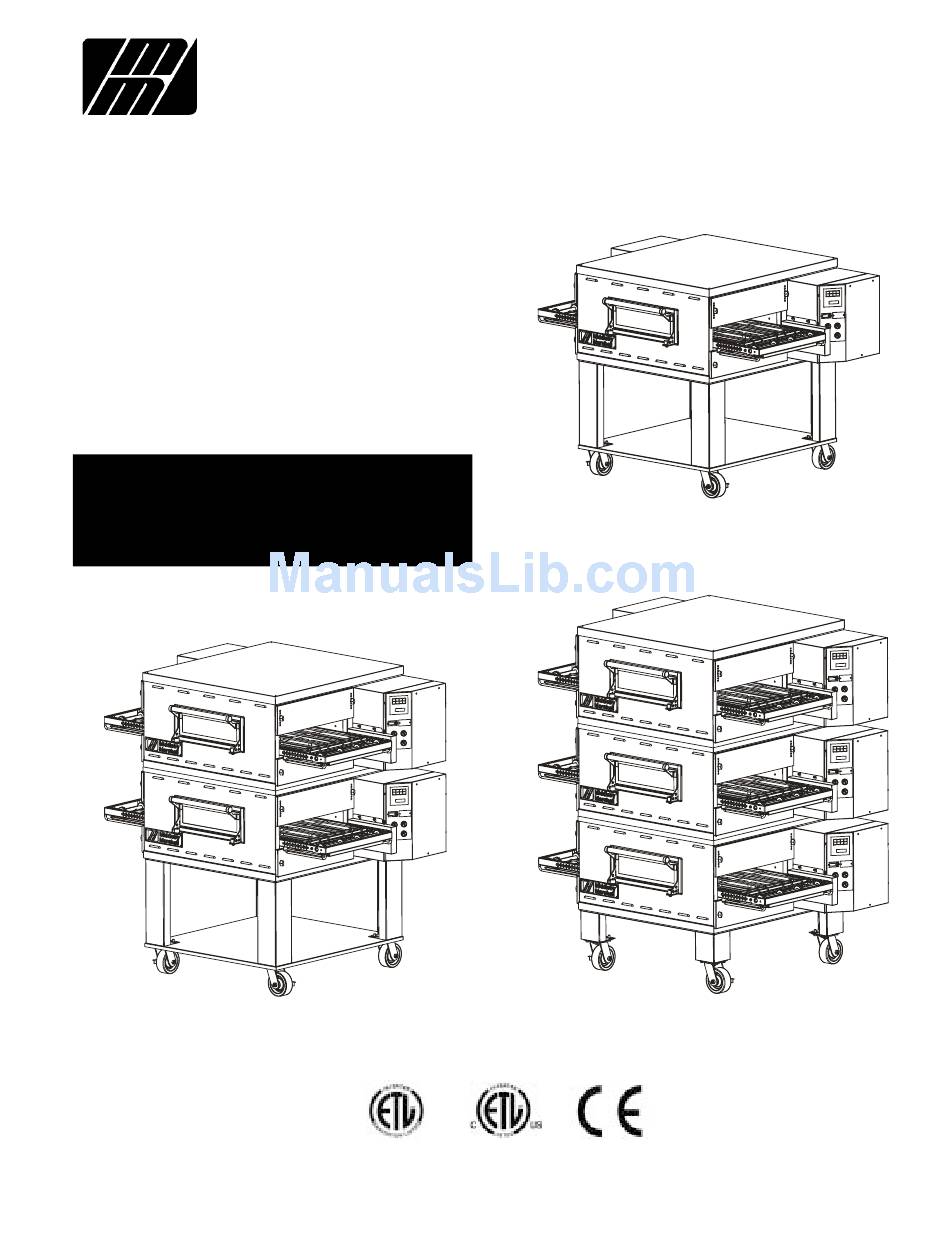

owner's
operating
& installation
manual
PS536-Series OVENS
Model PS536ES
PS536ES (Double)
©2005 Middleby Marshall
®
Inc.
PS536-Series Electric Ovens: English

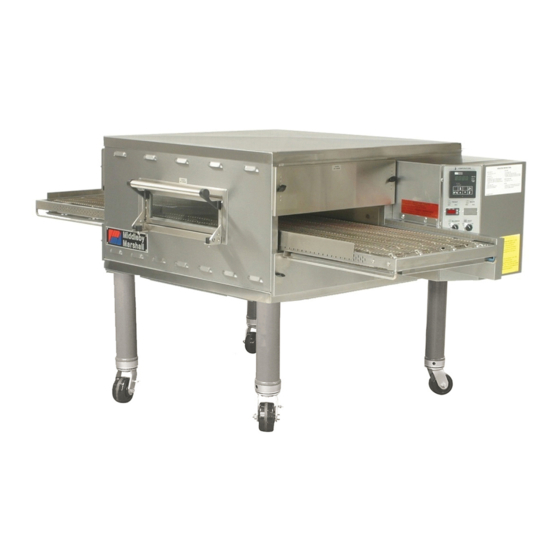

PS536ES (Single)
PS536ES (Triple)
Part No. 58367
Price $30.00
P: 10/06
