- Page 1 PS650 Visual Presenter User Manual [Important] Please visit Lumens http://www.lumens.com.tw/goto.htm download the latest software, drivers, and documentation English -0...
-
Page 2: Table Of Contents
System Diagram ................. 8 Connecting to a Projector or Monitor..........9 Connecting to a Computer and Use Lumens Software ...... 9 Connecting to an Interactive Whiteboard (IWB) ....... 10 Connecting to a Projector, 2 PCs, and a Monitor at the Same Time 10 Connecting to a TV ................ - Page 3 I would like to automatically adjust the image to have best brightness and focusing performance (AUTO TUNE) ...... 23 I would like to capture images (CAPTURE) ........24 8.10 I would like to view captured images ..........25 8.11 I would like to delete the captured images ........25 8.12 I would like to automatically delete the captured images whenever it is turned off (AUTO ERASE) ............
-
Page 4: Copyright Information
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Visual Presenter: 1. Do not place visual presenter in tilted position. 2. Do not place the Visual Presenter on an unstable trolley, stand or table. 3. - Page 6 Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This visual presenter has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet.
-
Page 7: Chapter 2 Package Contents
Chapter 2 Package Contents PS650 Quick Start Guide Extender Adapter (For download of other language versions, please visit Lumens website) VGA Cable Remote Control Audio Cable USB Cable Power Cord Appearance may vary depending on country/region Microscope Adapter Backlight (Optional) -
Page 8: Chapter 3 Product Overview

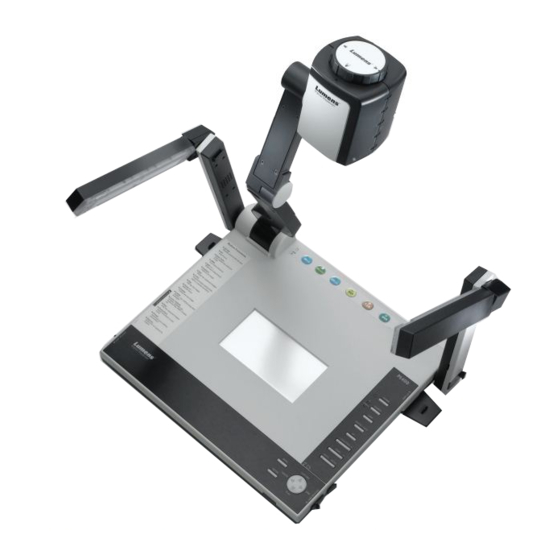

Chapter 3 Product Overview Lens Camera arm Auxiliary floodlight and lamp arm Backlight Remote control slot DIP Switch Settings Lampstand latch Control panel Function keys instructions Remote sensor Input/output port English -7... -
Page 9: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System Diagram Speaker Monitor (Or connect to an additional amplifier before connecting to the speaker) Projector or LCD TV monitor English -8... -
Page 10: Connecting To A Projector Or Monitor
4.2 Connecting to a Projector or Monitor VGA Cable Power Cord Projector or monitor Power Outlet 4.3 Connecting to a Computer and Use Lumens Software USB Cable Projector Power Cord VGA Cable Power Outlet Computer English -9... -
Page 11: Connecting To An Interactive Whiteboard (Iwb)
Power Cord VGA Cable USB Cable Power Outlet Computer Drivers and software can be downloaded from the Lumens website. 4.5 Connecting to a Projector, 2 PCs, and a Monitor at the Same Time Power Cord VGA Cable VGA Cable... -
Page 12: Connecting To A Tv
4.6 Connecting to a TV DIP Switch Extender Adapter Power Cord C-Video Cable Power Outlet NTSC: U.S.A., Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico. PAL: Countries/regions not listed above. You must re-start for DIP switching configuration to take effective. <Note>: It doesn’t support C-Video and VGA simultaneously. -
Page 13: Connecting To A Computer With Rs232
4.8 Connecting to a Computer with RS232 Extender Adapter RS232 Cable Power Cord Power Outlet Computer 4.9 Connecting to Audio Input and Output Power Cord Audio Cable Audio Cable Power Outlet Speaker Computer (1) Computer (2) <Remark>: Or connect to an additional amplifier before connecting to the speaker. -
Page 14: Installing Application Software
4.10 Installing application software After installing the USB driver and application software, you can use the following functions: Control the Visual Presenter. Capture and record images. Annotate the image, highlight important details and save it. Support the full screen function. <Note>: Please refer to software user manual for installation steps and software operation. -
Page 15: Chapter 5 Start Using
When using the remote control, aim at the receptor on the PS650, and press the power button. Once PS650 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED is not on. English -14... -
Page 16: Chapter 6 Dip Switch Settings
Chapter 6 DIP Switch Settings <Note>: You must re-start PS650 for DIP switching configuration to take effective. 6.1 Connecting to a Projector or Monitor 6.1.1 SXGA 60Hz output (default values): 6.1.2 XGA 60Hz output 6.1.3 HDTV 720P 60Hz output 6.1.4 Special Mode output... -
Page 17: Connecting To A Tv
6.2 Connecting to a TV 6.2.1 NTSC Settings: U.S.A., Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico. 6.2.2 PAL Settings: Countries/regions not listed above. <Remark>: It doesn’t support C-Video and VGA simultaneously. Once C-Video is on, VGA is not supported. English -16... -
Page 18: Chapter 7 Control Panel/Remote Control And Setting Menu
Chapter 7 Control Panel/Remote Control and Setting Menu 7.1 Functions of control panel and remote control <Note>: OSD is not available at C-VIDEO mode. Certain buttons on the panel and the remote control will be disabled as well. <Remark>: The functions below are listed alphabetically. Name Function Descriptions Operation... - Page 19 0°/90°/180°/270°) Control panel Select Image Mode. PHOTO/TEXT Remote control Rotate the image by 0°/90°/180°/270° ROTATE / Control panel Remote control Shows the photos or videos stored in the internal SLIDE SHOW memory in slide mode. Switch between different sources of signals: Remote control SOURCE / Control panel...
-
Page 20: Setting Menu
7.2 Setting Menu <Remark>: Press [Menu] on the remote control or control panel to enter the setting menu; The bold underlined values in the following table are defaults. Level Level Level Function Descriptions Major Minor Items Adjustment Items values Adjust the image to the optimal Auto Tune Enter condition. - Page 21 USB transfer mode. 1. Camera USB Transfer 1. Camera: connecting the 2. Storage device PS650 to view live image. 2. Storage device: Internal memory for users to read files. Regardless of outside environment, the machine will On/Off adjust the brightness to the optimal condition.
- Page 22 English English 繁體中文 Traditional Chinese German Deutsch French Français Spanish Español Русский Russian Dutch Nederlands Finnish Suomi Language Polish Polski Italian 10. Italiano Portuguese 11. Português Swedish 12. Svenska 13. ČESKY Czech Use the left and right arrow keys in the language option to select the preferred language.
-
Page 23: Chapter 8 Descriptions Of Major Functions
8.1 I would like to switch image sources The default of image source is Live Image. Press [SOURCE] on the remote control or the control panel to switch settings and PS650 will switch among the following three modes in turn: 1. -
Page 24: I Would Like To Zoom In/Out Images (Zoom)
8.4 I would like to zoom in/out images (ZOOM) 1. Press [ZOOM+] on the remote control or control panel to zoom in images. 2. Press [ZOOM-] on the remote control or control panel to zoom out images. 8.5 I would like to use the auto focus (AF) 1. -
Page 25: I Would Like To Capture Images (Capture)
8.9 I would like to capture images (CAPTURE) 8.9.1 Setting the quality of captured images 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Storage] menu. 3. Press [] to find [Image Quality]. 4. -
Page 26: I Would Like To View Captured Images
8.10 I would like to view captured images 1. Press [SOURCE] on the remote control or control panel to display thumbnails of all captured images. 2. Press [] or [] or [] or [] to select the thumbnail you want you browse. 3. -
Page 27: I Would Like To Play The Slides (Slide Show)
8.14 I would like to play the slides (SLIDE SHOW) 8.14.1 Setting the slide show effect: 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Storage] menu. 3. -
Page 28: I Would Like To Compare Images (Compare Live Images With Captured Images (Pbp))
8.15 I would like to compare images (compare live images with captured images (PBP)) This function will compare and contrast a live image with a captured image. Captured image Live image If you use the remote control or the control panel: 1. -
Page 29: I Would Like To Set / Change The Password (Lock Down)
8.17 I would like to set / change the password (LOCK DOWN) 8.17.1 Setting the password 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Advance] menu. 3. -
Page 30: I Would Like To Adjust The Volume (Vol)
8.17.2 Changing the password 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Advance] menu. 3. Press [] to [Lock Down]. 4. Press [] or [] to select [Off] and deactivate the password setting function. -
Page 31: Computer-Related Functions
Ensure that the USB cable is connected and the drivers are installed before using the computer-related functions. Refer to 4.3 Connecting to a Computer and Use Lumens Software under Chapter 4 Installation and Connections in this user manual. 8.19.1 I would like to insert a photo in MS-Paint 1. - Page 32 2. Select [Visual Presenter V2] and click [Custom Insert]. 3. Click [Get Picture]. It will capture the photo of live image. 8.19.3 I would like to change the setting of the PS650 and then capture a photo in MS-Word 1. Click [Insert/Image/From Scanner or Camera] in MS-Word.
- Page 33 3. A window showing a live image (see below) will be displayed. 4. Press [Setting]. To control the PS650 via the Camera Settings interface. The operating procedure is the same with the remote control and control panel of the PS650. Refer to...
- Page 34 8.19.4 I would like to set the PS650 as a webcam for Skype The PS650 can be used as a webcam for teleconferencing software such as Skype and MSN. With Skype as an example, operating instructions are provided below: 1. Open Skype and enter [Tools] > [Options].
- Page 35 8.19.5 I would like to set the PS650 as a PC Camera 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Setting] menu. 3. Press [] to find [USB Transfer].
- Page 36 4. Press [] or [] to select [Camera]. 5. Press [MENU] to exit. 8.19.7 I would like to connect an Interactive Whiteboard To connect an Interactive Whiteboard, go to Lumens website to download the reference guide for a specific brand: http://www.lumens.com.tw/goto.htm...
-
Page 37: Chapter 9 Connecting To Microscope
Ø 28mm, Ø 31mm, Ø 33mm, and Ø 34mm. 2. The lens of PS650 connects with the microscope adapter. If the eyepiece is Ø 33mm or Ø 34mm, If the eyepiece is Ø 28mm or Ø 31mm, you only one Lumens microscope need two microscope adapters. -
Page 38: Chapter 10 Packing The Machine
Chapter 10 Packing the Machine 1. Insert the remote control into the left slot of the machine. 2. Rotate and position the lamp arms on both sides. 3. Pull down the lamp arm back to the latches. 4. Bend the lamp arm inwards and adjust the lens to be parallel to the platform. 5. -
Page 39: Chapter 11 Troubleshooting
Chapter 11 Troubleshooting This chapter describes problems you may encounter while using PS650. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
