- Page 1 PS400 Digital Visualizer User Manual English - 0...
-
Page 2: Table Of Contents
COPYRIGHT INFORMATION ................3 CHAPTER 1 PRECAUTIONS ................4 ....................5 AFETY RECAUTIONS FCC W .......................5 ARNING EN55022 (CE R ..............5 ADIATION ARNING CHAPTER 2 PACKAGE CONTENT..............7 CHAPTER 3 PRODUCT OVERVIEW ..............8 ................8 RONT I/O C .....................9 ONNECTOR DIP S ..................10 WITCH ETTING ..................11 ONTROL ANEL... - Page 3 5.4.3 Using USB and RS232................20 ...................21 TORAGE AFTER CHAPTER 6 Q & A ....................22 English - 2...
-
Page 4: Copyright Information
Disclaimer: Lumens Corporation shall not be liable for technical or editorial errors or omissions English - 3... -
Page 5: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the Digital Visualizer: 1. Do not place the Digital Visualizer on an unstable trolley, stand or table. 2. Do not use the Digital Visualizer near water or source of heat. 3. -
Page 6: Safety Precautions
If the power cable or plug becomes damaged or frayed. If liquid is spilled into it or the Digital Visualizer has been exposed to rain or water. Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. - Page 7 in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium. If this device certainly causes interference to radio or television, users can modify the interference with the following methods: ♦...
-
Page 8: Chapter 2 Package Content
Chapter 2 Package Content Please make sure the package comes with the following items when you unpack: PS400 Quick start guide User Manual Download Card Power Cable USB Cable C-Video Cable VGA Cable Remote Control English - 7... -
Page 9: Chapter 3 Product Overview

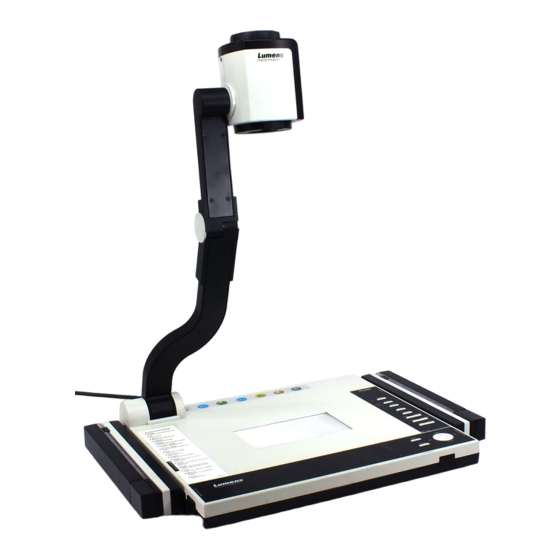

Chapter 3 Product Overview 3.1 Front View/ Rear View Camera Head Camera Arm Lamp Backlight Remote Control Slot CF card slot Lamp lock Control Panel Button Function Guide 10. IR Sensor (used for Remote Control) 11. Input/Output Port (including DIP Setting) English - 8... -
Page 10: I/O Connector
3.2 I/O Connector 1. VGA IN Connect to VGA-out of other device, for example PC 2. VGA OUT Connect to VGA-in of another visual device 3. DVI OUT Digital & Analog Receptacle Connector 4. S-VIDEO S-Video for video output 5. C-VIDEO C-Video for video output 6. -
Page 11: Dip Switch Setting
3.3 DIP Switch Setting 3.3.1 RGB & XGA Output (Default ) (Default) 3.3.2 Video Output (NTSC) NTSC Setting：USA、Taiwan、 Panama、Philippine、Canadian、 Chile、Japan、Korea、Mexico 3.3.3 Video Output (PAL ) PAL Setting: Besides above NTSC listed countries. 3.3.4 SVGA Output English - 10... -
Page 12: Control Panel
3.4 Control Panel Power Power on/off Source Select PC or Camera to output Image Change between Photo or Text mode Mode Select Normal／Film／Slide／Microscope Capture Capture image to internal memory Play, Delete Recall/delete the saved images in the Digital Visualizer FLIP Rotate the image by 180°... -
Page 13: Remote Control
3.5 Remote Control Power Freeze Power on/off Freeze the image on screen Source Select PC or Camera to Auto Focus Output 10. Capture Menu Capture image to internal memory Access into the OSD menu. 11. Play Press direction buttons to select Recall the saved images in one menu and click Enter to get the Digital Visualizer... -
Page 14: Chapter 4 Installation
Chapter 4 Installation 4.1 Setup the Digital Visualizer Pull up the arm. The camera head should aim at the center of the Visualizer. Press and hold the Lamp release on both side of the Visualizer and push the Lamp release outside to pull up the lamp. Turning the camera head toward the platform according to the direction of the arrows below. -
Page 15: Chapter 5 Operation
Chapter 5 Operation 5.1 Basic Functions 5.1.1 Source The default input source is set as "Digital Visualizer", press 『Source』 to switch. Control Panel Remote Control Monitor Notebook Projector 5.1.2 Zoom In/Out Zoom in/out by pressing continuously Control Panel Remote Control English - 14... -
Page 16: Auto Focus
5.1.3 Auto Focus Execute AF by pressing once. Control Panel Remote Control 5.1.4 Brightness 5.1.5 Lamp Switch / on / off the lamp and backlight English - 15... -
Page 17: Photo/Text/Gray
5.1.6 Photo/Text/Gray 5.1.7 Capture Control Panel Remote Control 5.1.8 Accessing into OSD Menu Control Panel Remote Control English - 16... -
Page 18: Advanced Functions
5.2 Advanced Functions 5.2.1 Play Back Captured Images Remote Control or Control Panel： Press『Play』to display all the captured images miniature. Press『 』to select the miniature that you want. Press『Enter』to display the image in full screen. Press『 』to view the up and down image. Press『Play』to return to main screen. -
Page 19: Osd Function Introduction
Press『 』to select『on/off)』 Press『Menu』to exit. 5.3 OSD Function Introduction 5.3.1 Using OSD Menu Remote Control or Control Panel： 1. Press『Menu』to enter OSD menu. 2. Press『 』to select function menu. 3. Press『Enter』to enter menu. 4. Press『 』to choose function. 5. 『 』... -
Page 20: Osd Menu
5.3.2 OSD Menu Layer 1 Layer 2 Layer 3 Description Lamp ON (default)/OFF ON (default)/OFF Expose image automatically Display Execute Auto white balance. Focus Adjust image focus Digital Zoom ON/OFF (default) Delete All Execute Delete all captured images Format Execute Format Storage On / Off... -
Page 21: Other Functions
5.4 Other Functions 5.4.1 Viewing Remote Objects Remote Control / Control Pad: 1. Press『Zoom+』or 『Zoom-』to view the scene that you want. 2. If the remote image is inverted, please press『Menu』to open OSD menu and choose『Flip』. 5.4.2 Viewing Positive/Negative Images 1. The objects must be placed on the backlight board. 2. - Page 22 5.5 Storage after Use Fold the arm and camera head until they touch the stage Turn the camera until it is parallel with the stage. Turn the upper lamps toward the supporting arms Insert the remote control into the slot on the right of the Digital Visualizer. Fold them to both sides of the Digital Visualizer until they lock in both sides.
- Page 23 Chapter 6 Q & A This chapter describes the problems you might have encountered when you use this Digital Visualizer. If you have a problem, refer to the appropriate section and follow all the suggestions that apply to your problem. If none of the suggested solutions solves the problem, call your dealer or your service center.
