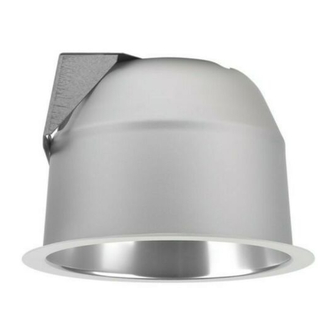

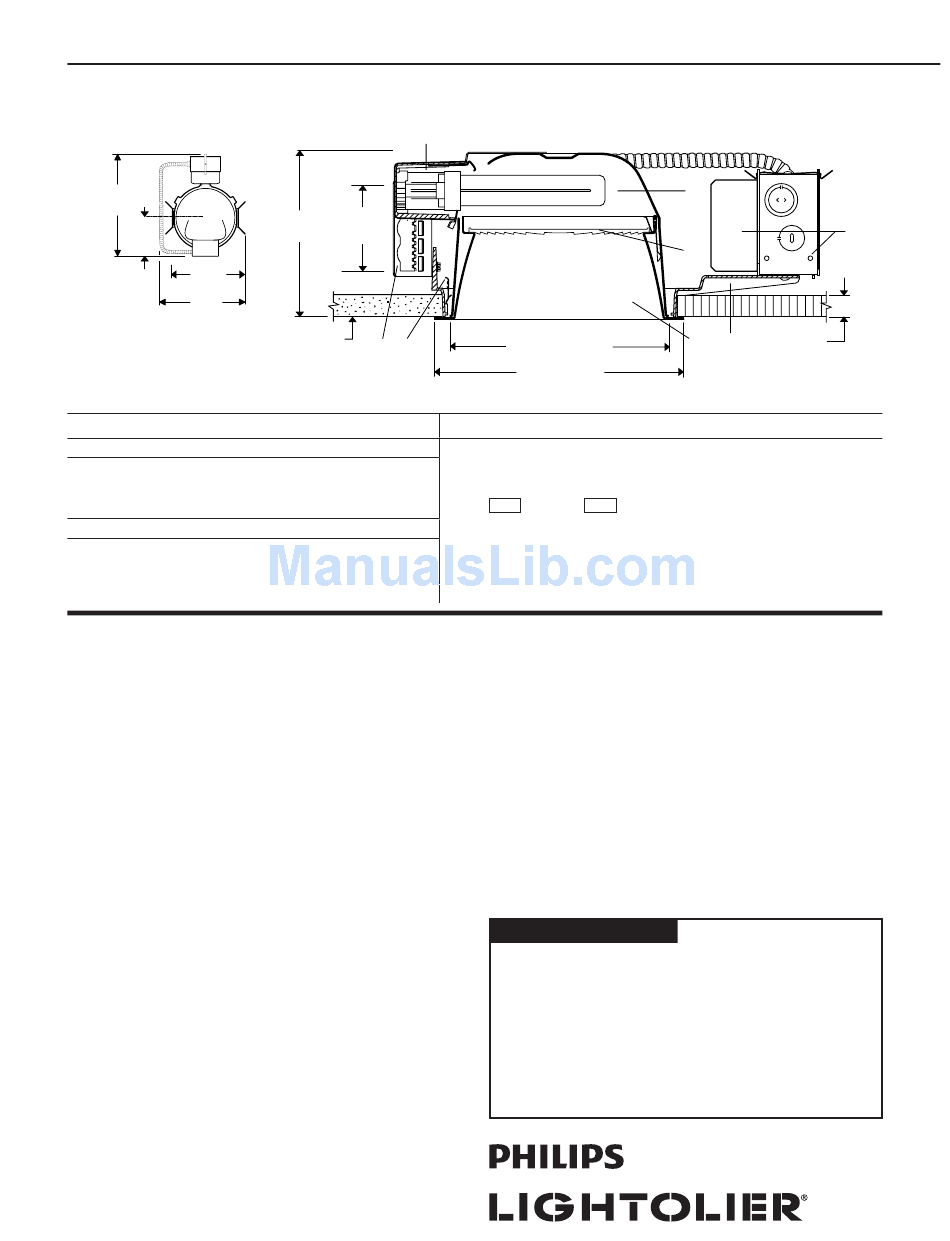

Lightolier Calculite CFL Lensed Downlight 8096 Manual

Page 1 of 2
15"
(381 mm)
11 3/8"
5 3/4"
(289 mm)
(146 mm)
12 1/2"
(318 mm)
Top View
Reflector Trim
(Lens:) Fresnel
Clear Cone, White Flange 8096FCLW
Clear Cone, Polished Flange 8096FCLP
White Cone, White Flange 8096FWHW 8096CWHW 8096PWHW
Opal Diffuser
Clear Cone, White Flange 8096DCLW
Clear Cone, Polish Flange 8096DCLP
White Cone, White Flange 8096DWHW*
Features
1. Reflector: 16 ga. Die-formed aluminum, Anobrite finish.
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
7. Shielding Media: Molded acrylic. Available in fresnel lens, clear lens, or
opal diffuser. Secured to aperture cone.
8. Cone: 16 ga. Alzak aluminum. Clear Iridescence Free finish or Comfort Clear™
low iridescence finish. Retained by friction springs; no loose parts.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Comfort Clear Finishes Other Finishes
™ 1
Clear CCL White
Diffuse CCD
CCZ
Champagne Bronze
Specify desired flange
1
W White, P Polished
Emergency Add suffix EM*
Chicago Plenum Add suffix LC
