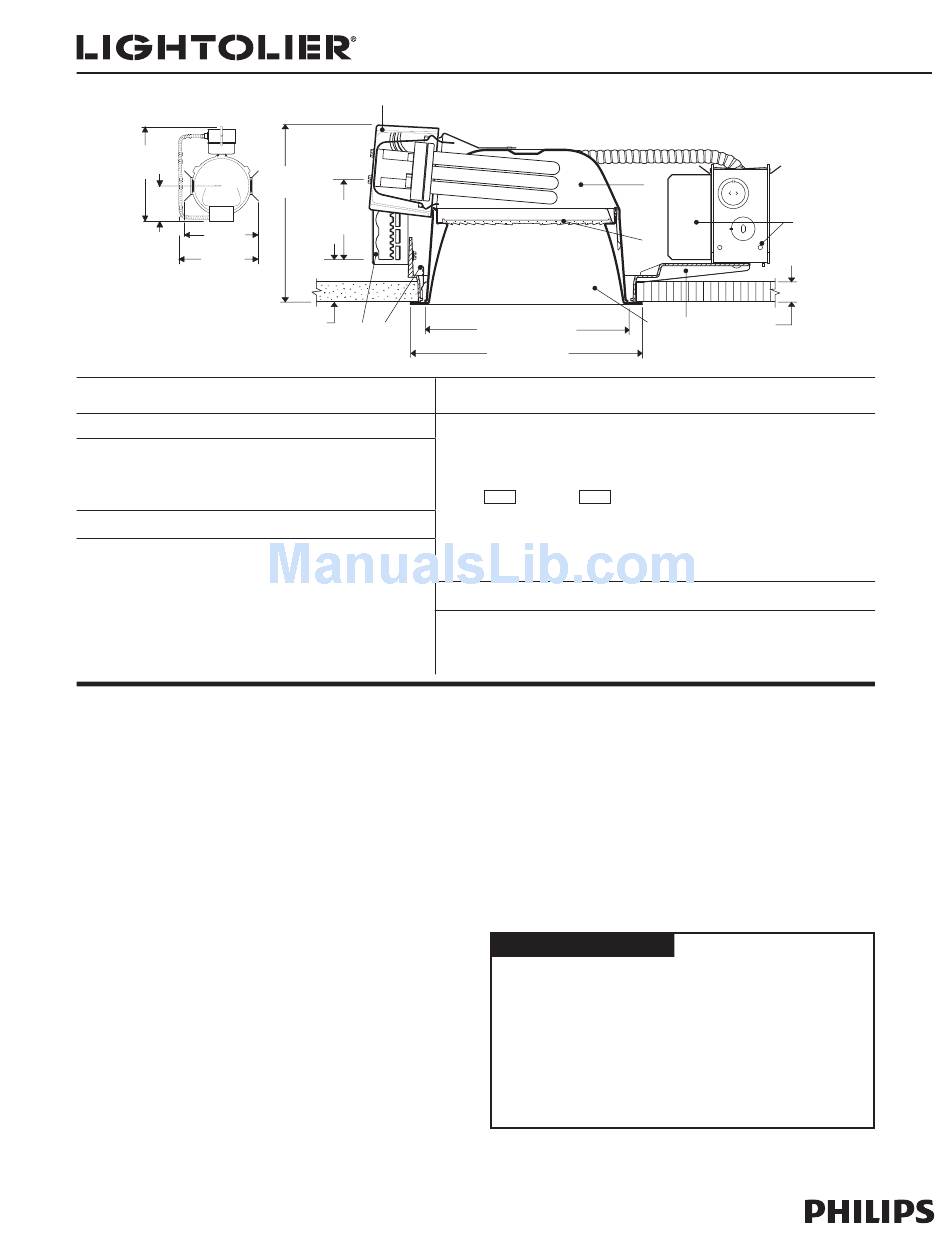

Lightolier Calculite 8097 Specification

Page 1 of 2
15"
(381 mm)
5-3/4"
(146 mm)
TOP VIEW
Ceiling Cutout: 8" (203 mm) Dia.
Reflector Trim
(Lens:)
Clear Cone, White Flange
Clear Cone, Polished Flange 8097FCLP
White Cone, White Flange 8097FWHW 8097CWHW 8097PWHW
Clear Cone, White Flange
Clear Cone, Polish Flange
White Cone, White Flange 8097DWHW
Features
1. Reflector: 16 ga. Die-formed aluminum, Anobrite
2. Socket Cup: Snaps onto reflector to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
7. Shielding Media: Molded acrylic. Available in fresnel lens, clear lens, or
opal diffuser. Secured to aperture cone.
8. Cone: 16 ga. Alzak aluminum. Clear Iridescence Free finish or Comfort
®
Clear low iridescence finish. Retained by friction springs; no loose parts.
™
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Comfort Clear Finishes
™
Clear CCL
Diffuse CCD
Champagne Bronze CCZ
Specify desired flange
1
W White, P Polished
Emergency Add suffix EM*
Chicago Plenum Add suffix LC
Lightolier is a Philips group brand
2
6-1/2"
(165 mm)
3"
(76 mm)
11-3/8"
(289 mm)
12-3/4"
(324 mm)
1" (25 mm) min.-
5 4
2-1/8" (54 mm) max.
Fresnel Clear Prismatic
8097FCLW 8097CCLW 8097PCLW
8097CCLP 8097PCLP
Opal Diffuser
8097DCLW
8097DCLP
finish.
®
Other Finishes
1
White WH
Calculite CFL Lensed Downlight
®
7" Aperture Triple Tube Horizontal Lamp
7-1/4" (184 mm) Dia.
8-5/8" Self-Flanged
(209 mm)
Frame-In Kit
S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7132BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S7132B or S7142B
CU3 Lightolier PowerSpec 3% Dimming (120/277V)
J1LD3 Lutron 5% Dimming (120V)
JUM7 Mark 7 Dimming (120/277V)
J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
7126BURM 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7132BURM 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7142BURM 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
Existing/Thk. Ceiling FA EC7*
Emergency Ltg. Kit FA EM3E*
FA EM4E*
Fuse (Slow Blow) Add Suffix F
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
All units are UL listed for wet locations, Opal Diffuser is UL listed for damp
locations, I.B.E.W.
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
1
6
7
1-1/8" (29 mm) max.
Ceiling Thickness
8 3
J2LD3 Lutron 5% Dimming (277V)
J1MX Mark 10 Dimming (120V)
Type:
8097
