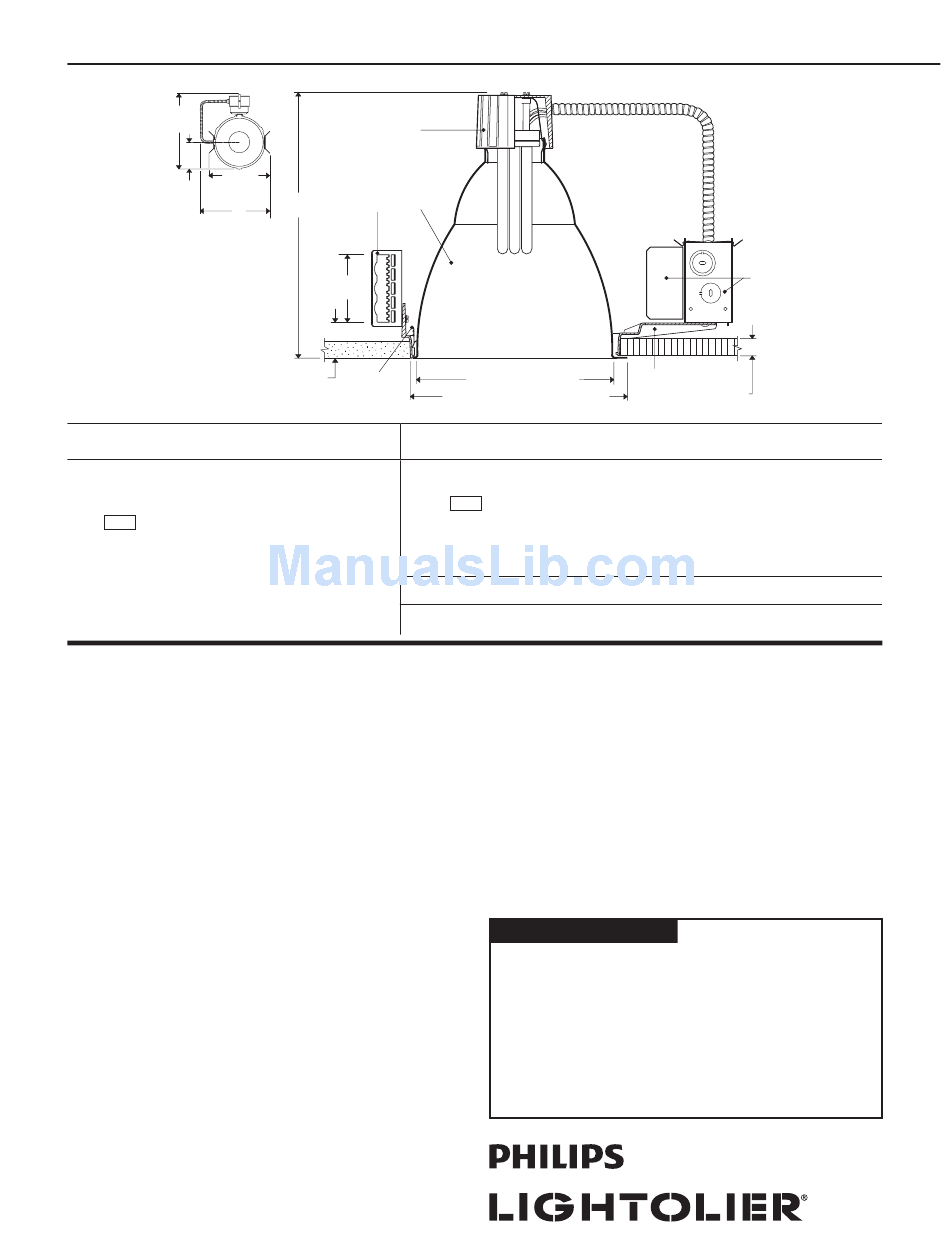

Lightolier Calculite 8023 Specification

Page 1 of 2
15-1/2"
(394 mm)
12-1/2"
5-1/2"
(318 mm)
(140 mm)
15"
(381 mm)
Top View
Ceiling Cutout: 9 1/4" (235 mm) Dia.
Reflector Trim
8023 CCLW
Comfort Clear ™,
8023 CCLP Comfort Clear , Polished Flange
™
8023 CCL Comfort Clear , Molded Trim Ring
™
8023 Add suffix. See options for other finishes
Features
1. Reflector: 16 ga. Alzak aluminum, 50° visual cutoff to lamp and lamp
®
image, medium distribution. Comfort Clear
Self-flanged or flangeless with molded white trim ring (field paintable).
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector
to mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4"
or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL Listed for through branch circuit wiring with max of (8) No 12 AWG, 90
degree C supply conductors.

Options and Accessories

Comfort Clear Finishes Other Finishes
™ 1
Diffuse CCD White
Champagne Bronze CCZ Specular Clear
Specify desired flange
1
W White, P Polished Blank - Molded Ring
Other Louver Finishes Consult Factory
Add suffix EM*
Emergency
Chicago Plenum Use 6132BULC
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • B0711
2
11-3/4"
5 1
(298 mm)
3"
(76 mm)
1" (25 mm) min.-
4
2-1/8" (54 mm) max.
Frame-In Kit
S8142VU 8" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
White Flange
Dimming Options:
S8142V
CU3
J2LD3
J1MX
Other dimming product available, please consult factory
Remodeler Frame-In Kits
8142VURM
low iridescence finish.
™
WH
CL

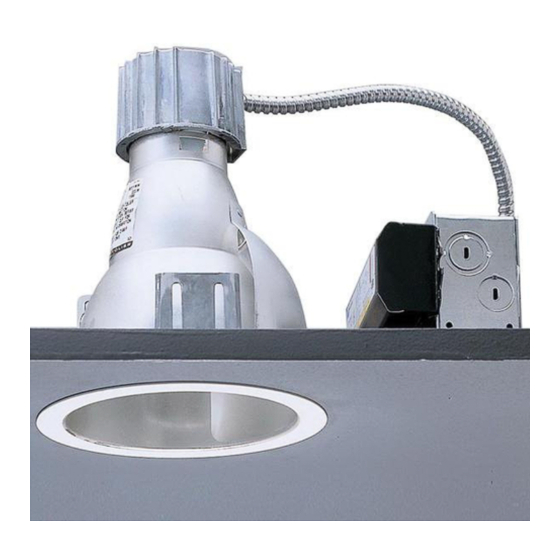

Calculite CFL Open Downlight
®
8 3/4" Aperture Triple Tube Vertical Lamp
8-11/16" (226 mm) Dia.
9-3/16" Trimless 9-7/8" (251 mm)
(233 mm)
Self-Flange Trim
Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
Lutron 5% Dimming (277V)
Mark 10 Dimming (120V)
8" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
Existing/Thk. Ceiling FA EC6*
Emergency Ltg. Kit FA EM3E*
Fuse (Slow Blow) Add Suffix F
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
IC Frame available; see C6CFL32 specification sheet.
Labels
UL listed for damp locations.
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
6
3
1-1/8" (29 mm) max.
Ceiling Thickness
JUM7 Mark 7 Dimming (120/277V)
J2MX Mark 10 Dimming (277V)
Type:
8023
