Lightolier Calculite S6132BU Specification

Page 1 of 1
26W 9 3/8"
(238mm)
32W 9 7/8"
(251mm)
3"
(76mm)

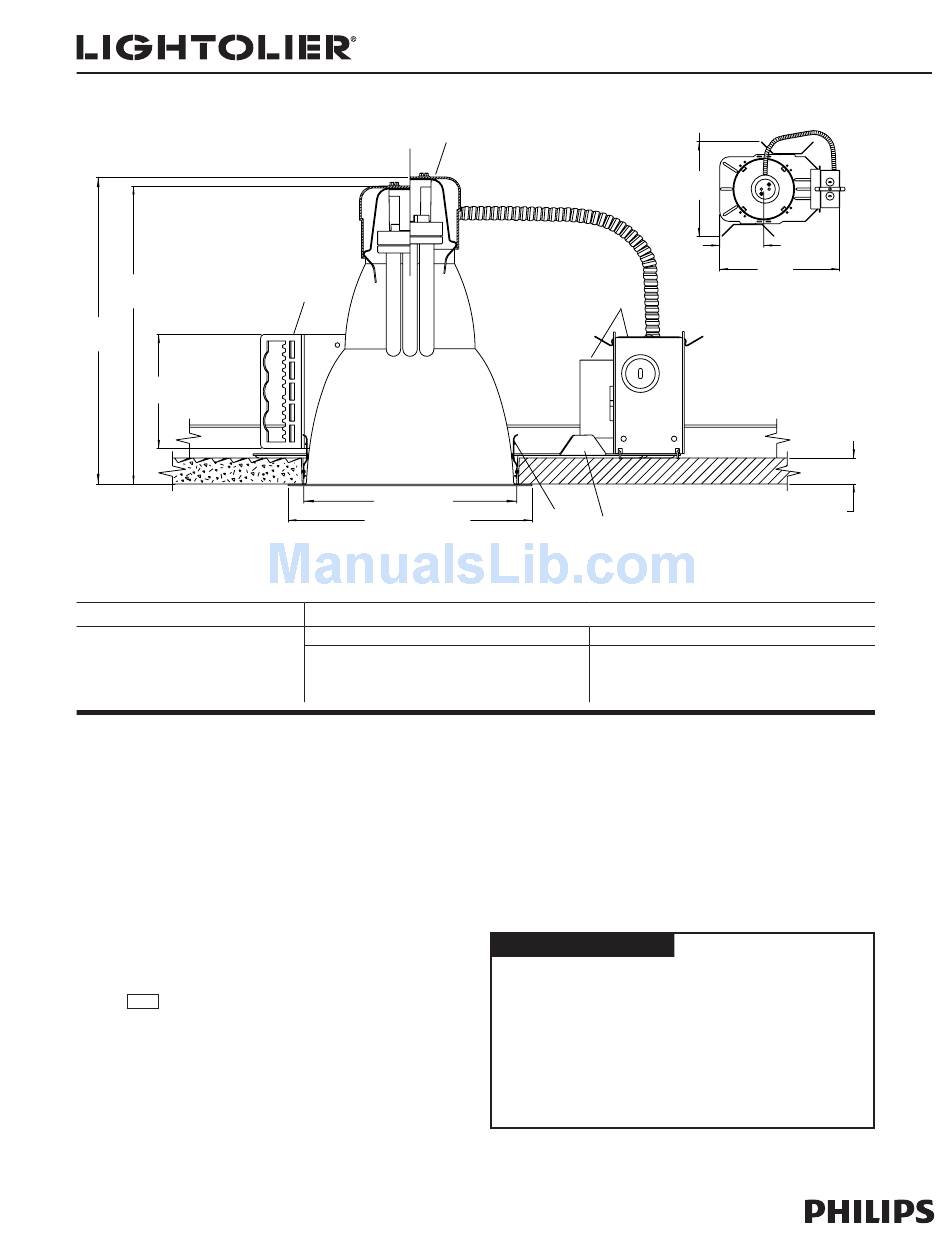

Ceiling Cutout: 6 9/16" (167 mm) Dia. (Shown with 8021 Trim Kit)
Frame-In Kit
S6132BU Electronic 120V-277V
26 or 32W Triple Tube
4-Pin (Amalgam)

Features

1. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
2. Mounting Frame: Galvanized stamped steel for dry or plaster ceilings.
3. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
4. Mounting Brackets: Galvanized steel. Adjust from inside of fixture.
Use 3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
5. Ballast/J-Box: Electronic 120V - 277V. UL listed for through branch circuit
wiring with max of (8) No. 12 AWG, 90°C supply conductors. Outboard
mounted to reduce heat transfer and maintain lamp efficacy and life. Service
from below without tools.
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
Options & Accessories
Standard Dimming Options:
S6132B
CU3 Lightolier PowerSpec 3% Dimming (120/277V)
JULECD Lutron EcoSystem 5% Dimming (120/277V)
JUM7 Mark 7 Dimming (120/277V)
J1MX Mark 10 Dimming (120V)
J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Lightolier is a Philips group brand
Calculite
®
1
4
6" (152mm) Dia.
7 1/4" (184mm) Overlap
Compatible Reflector Trims
Downlights
8021 Open, Vertical Lamping
8031 Open, Horizontal Lamping
8091CB Louvered, Horizontal Lamping
CFL Recessed Downlighting
6" Aperture Triple Tube Frame-In Kit
5
3
2
Wall Washers
8021WW Open, Vertical Lamping
8081 Open, Horizontal Lamping
8046 Lensed, Horizontal Lamping
Options & Accessories (continued)
Mounting Bars: 1950 - 18" Set of (2)
1951 - 27" Set of (2)
T-Bar Anchor Clips: 1956 - Set of (4), for use with above
Labels
UL listed for damp locations. 8091F, 8091C, 8091P, UL listed for wet locations.
NS6132BU available for I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 20011 Philips Group • F1111
S6132BU
10"
(254mm)
4 5/8"
(117mm)
12 3/4"
(324mm)
Top View
1 1/8" (29mm) Max.
Ceiling Thickness
Type:
