Operating Manual
9. ACCEPTANCE CERTIFICATE
Image Intensifier Tube
Resolution, lines/mm
Photocathode sensitivity,
integral, µA/ lm
Light amplification
Image Intensifier Tube Serial Number: _____________
Date of production: __________
Quality Inspector Signature: ____________
NIGHT VISION DEVICE
__NVS 7-2 __NVS 7-2SD __NVS 7-2HD __NVS 7-2WA
__NVS 7-2XT
__NVS 7-3HD ___NVS 7-3XT
The device with serial number _______________ corresponds to all
technical specifications and is admitted for usage.
Date of production: _____________
Quality Inspector signature: _____________
Quality assurance seal
NEWCON OPTIK ™ 2006
Minimum
Measured
30
400
20,000
Printed in Canada

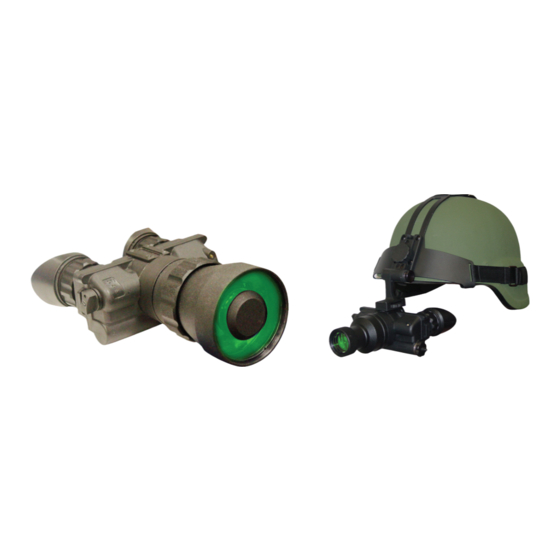

NIGHT VISION BINOCULARS/GOGGLES
NVS 7
NSN: 5855-20-000-8284
Operation Manual
Advertisement
Table of Contents
Related Manuals for Newcon Optik NVS 7
Summary of Contents for Newcon Optik NVS 7
- Page 1 The device with serial number _______________ corresponds to all technical specifications and is admitted for usage. Date of production: _____________ Quality Inspector signature: _____________ Quality assurance seal NEWCON OPTIK ™ 2006 Printed in Canada Measured NIGHT VISION BINOCULARS/GOGGLES NSN: 5855-20-000-8284...
-
Page 2: Important Information
ALWAYS 8. CUSTOMER SUPPORT Should you experience any difficulties with your NEWCON OPTIK product, consult the enclosed manual. If the problem remains unresolved, contact our customer support department at (416) 663-6963 or toll free at 1-877-368-6666. -
Page 3: Table Of Contents
NEWCON Authorized Service. Postage, insurance, or shipping costs incurred in presenting your NEWCON product for warranty service are your responsibility. Please include a cheque or money order made out to NEWCON OPTIK for the amount of $15.00 to cover shipping and handling within North America. -
Page 4: Troubleshooting
Precautions NVS 7 is a sophisticated precise optical instrument equipped with electronics. Therefore, it should be handled with due care. • Try to avoid strong heat, direct sunlight, impacts, dust, moisture and sudden changes of temperatures. Keep in mind that, although being very durable, NVS7 contains fragile components. -
Page 5: Overview
The device was designed to be easy to use, and provide many years of operation. Some of the typical activities where NVS 7 will be useful: • Law enforcement • Wildlife observation •... - Page 6 Using the helmet mount (optional) NVS 7 can be equipped with an optional helmet mount. This mount is customized for a particular type within the wide variety of existing helmet models. The mount is attached to a helmet with stripes.
-
Page 7: Operation
You will need to readjust the image for different objects at different distances.. You should expect to have a sharp image for distances as close as 10-20m through infinity. Figure 5 NVS 7 with 4x lens NVS 7 with 8x lens 3. SPECIFICATIONS OF NVS 7 Model... -
Page 8: Installation
GaAs rubber lens cap (6). Remove (unscrew) the original 1x lens, which is included with the NVS 7 goggles. To do that, hold the lens at its base 1200-2100 (1) and unscrew it counters clock wise. Once the original 1x lens has... -
Page 9: Operation At Night
5.3 Operation at night You can use the device with the head gear or without it. When used with the head gear, first adjust all the straps for individual head size. Take off the lens covers (6) from the lens (7). -
Page 10: Operating Instructions
5. OPERATION INSTRUCTIONS 5.1 Pre-starting procedures: Unpack the device. In order to install the battery, first make sure the switch (1) is in the OFF position. Unscrew the battery house cover (5), and install 2 fresh AA batteries. Observe the correct polarity indicated on the housing.
