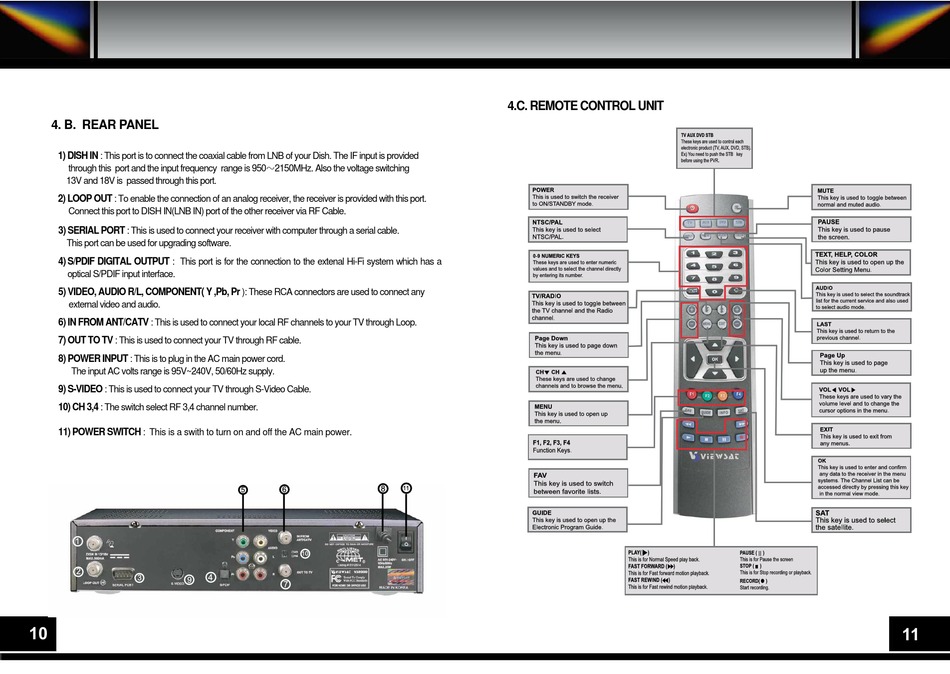

: This port is to connect the coaxial cable from LNB of your Dish. The IF input is provided
through this port and the input frequency range is 950�2150MHz. Also the voltage switching
13V and 18V is passed through this port.
: To enable the connection of an analog receiver, the receiver is provided with this port.
Connect this port to DISH IN(LNB IN) port of the other receiver via RF Cable.
: This is used to connect your receiver with computer through a serial cable.
This port can be used for upgrading software.
: This port is for the connection to the extenal Hi-Fi system which has a
optical S/PDIF input interface.
): These RCA connectors are used to connect any
external video and audio.
: This is used to connect your local RF channels to your TV through Loop.
: This is used to connect your TV through RF cable.
: This is to plug in the AC main power cord.
The input AC volts range is 95V~240V, 50/60Hz supply.
: This is used to connect your TV through S-Video Cable.
: The switch select RF 3,4 channel number.
: This is a swith to turn on and off the AC main power.
