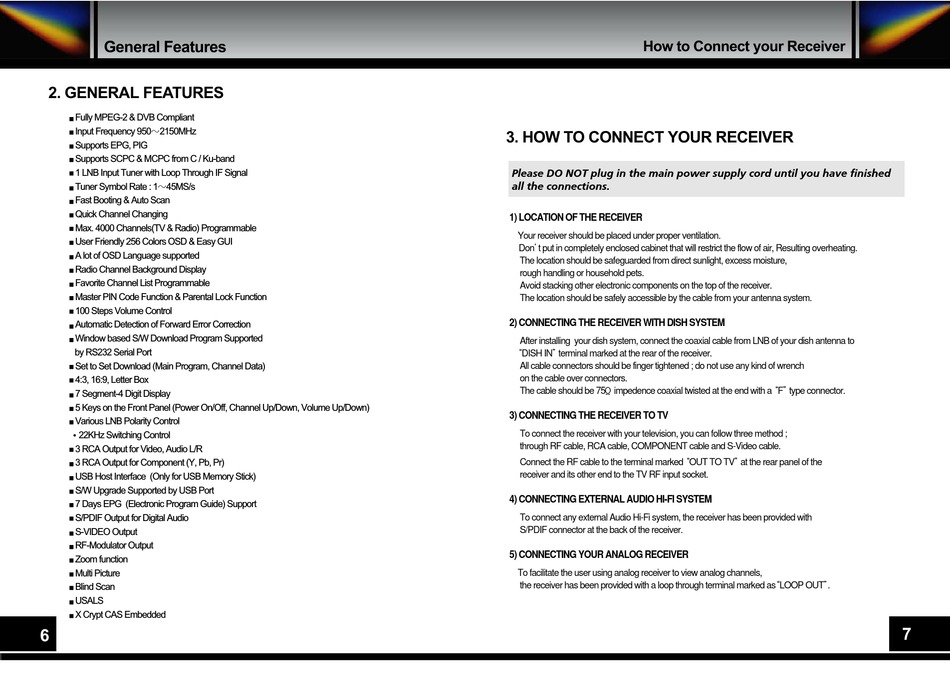

Please DO NOT plug in the main power supply cord until you have finished
all the connections.
Your receiver should be placed under proper ventilation.
Don' t put in completely enclosed cabinet that will restrict the flow of air, Resulting overheating.
The location should be safeguarded from direct sunlight, excess moisture,
rough handling or household pets.
Avoid stacking other electronic components on the top of the receiver.
The location should be safely accessible by the cable from your antenna system.
After installing your dish system, connect the coaxial cable from LNB of your dish antenna to
"DISH IN" terminal marked at the rear of the receiver.
All cable connectors should be finger tightened ; do not use any kind of wrench
on the cable over connectors.
The cable should be 75Ϊ impedence coaxial twisted at the end with a "F" type connector.
To connect the receiver with your television, you can follow three method ;
through RF cable, RCA cable, COMPONENT cable and S-Video cable.
Connect the RF cable to the terminal marked "OUT TO TV" at the rear panel of the
receiver and its other end to the TV RF input socket.
To connect any external Audio Hi-Fi system, the receiver has been provided with
S/PDIF connector at the back of the receiver.
To facilitate the user using analog receiver to view analog channels,
the receiver has been provided with a loop through terminal marked as " LOOP OUT" .
