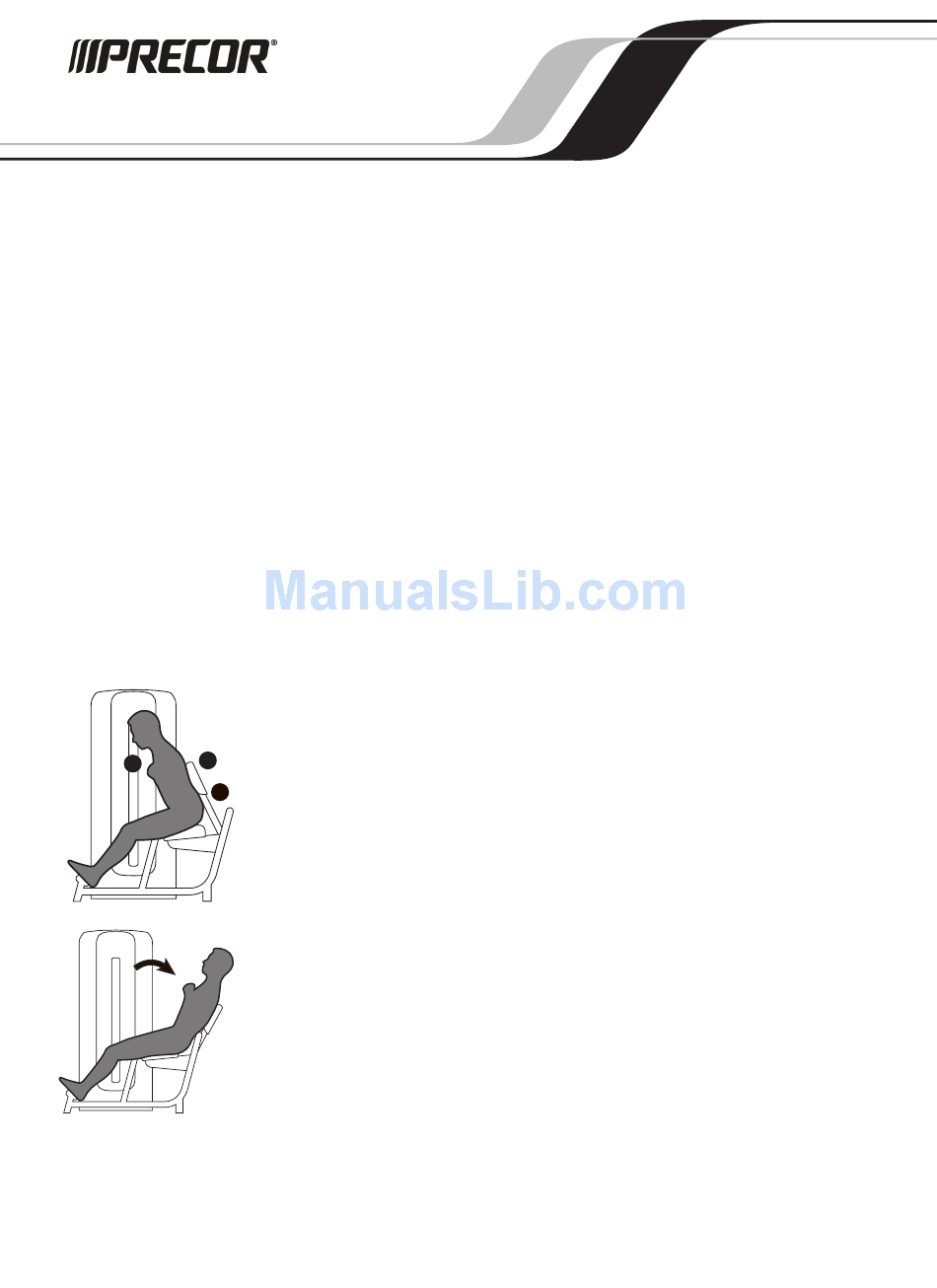

™ C-Line
Experience Strength
Back Extension
User's Guide
3
1
2
Precor Incorporated
20031 142nd Ave NE, P.O. Box 7202, Woodinville, WA USA 98072-4002
1-800-347-4404 • www.precor.com

Important Safety Guidelines

Caution: Before using the equipment, read these instructions and all labels. Failure
to do so may result in serious injury.
• Do not allow children, or those unfamiliar with the operation of this unit, on or
near it.
• Before beginning any fitness program, see your physician for a thorough physical
examination. Ask your physician for the appropriate target heart rate for your
age and fitness level.
• If you feel pain, faintness, or dizziness, stop exercising immediately.

Specifications

Machine Dimensions
Working Area
Weight Stack
Machine Weight
Setup
1. Select an appropriate weight.
2. Sit with your lower back against the back pad.
3. Adjust the movement arm to a comfortable start position.
Exercise
• Cross your arms in front of your chest.
• Extend back in a slow, controlled motion.
• Pause at full extension.
• Slowly return to the start position.

Training Tips

• Keep your lower back against the back pad.
• Avoid overextending.
54" L x 51" W x 67" H (137 cm L x 130 cm W x 170
cm H)
78" L x 51" W x 67" H x 67" H (198 cm L x 130 cm
W x 170 cm H)
215 lb (97 kg)
580 lb (263 kg)
P/N CW34872-101, en
1 November 2008
©2008 Precor Incorporated
