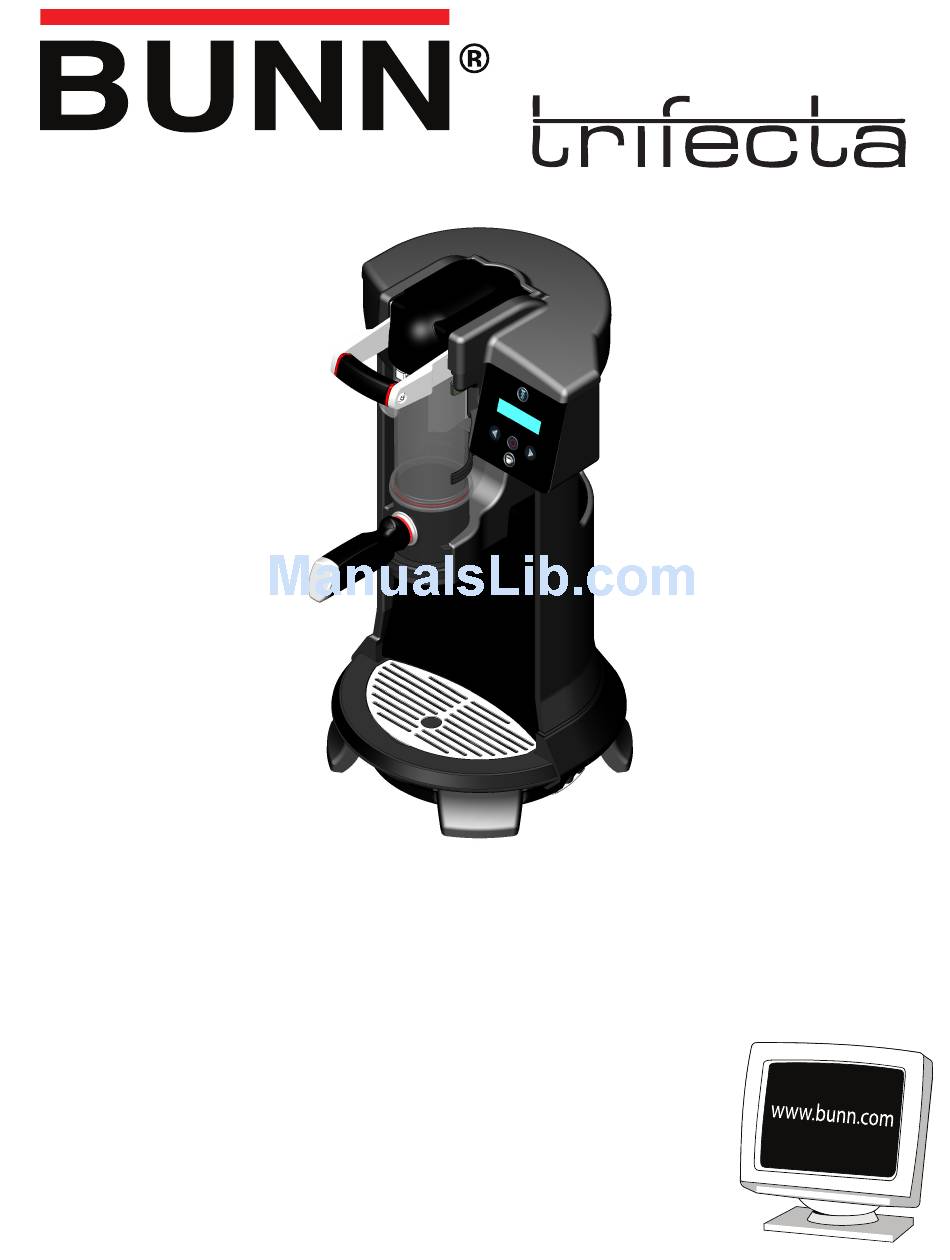

INSTALLATION & OPERATING GUIDE
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
42822.0001E 05/12 ©2010 Bunn-O-Matic Corporation
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trifecta and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn Trifecta

Summary of Contents for Bunn Trifecta

  • Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.

  • Page 2: Warranty

    AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    USING THIS PRODUCT ABRASIVE SOAP AND Keep hands clear Keep hands clear ing /Sanitation Code for your area. during brew cycle. when closing brew chamber. 00986.0000F 10/07 ©1994 Bunn-O-Matic Corporation WATER HOT liquids can burn. Moving parts can pinch. #00986.0002 #00656.0001 #43022.0000 #41177.0001...

  • Page 4: Electrical Requirements

    ELECTRICAL REQUIREMENTS CAUTION - The brewer must be disconnected from the power source until specified in Initial Set-Up. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements. 100V & 120V 230 VOLT CE Model 230 VOLT UK Model Models Note:...

  • Page 5: Plumbing Requirements

    25 feet from the ½˝ water supply line. A tight coil of tubing in the water line will facilitate moving the brewer to clean the counter top. Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water flow.

  • Page 6: Initial Setup

    INITIAL SET-UP 1. Install check valve. Refer to pictures on page 10. Brew water temperature is factory set at 200° F (93.3° C) 2. Install clear brew chamber and empty brew cup. Lock Areas of high altitude will require lowering this tempera- chamber in place.

  • Page 7: Coffee Brewing

    COFFEE BREWING 1. Lift handle all the way up. 4. Place brew cup under brew chamber. 2. Remove cup assembly. Verify screen is locked into 5. Place cup on drip tray grounds cup. Fig 1. 6. Push handle all the way down to lock brew 3.

  • Page 8: Adjusting Brewing Parameters

    ADJUSTING BREWING PARAMETERS Press "-" to reduce or "+" to increase. HOUSE SPECIAL DEFAULT: 8 oz, RANGE: 2 - 16 VOLUME 8 oz Adjust the desired brew volume. Press "-" to reduce or "+" to increase. PRE-WET DEFAULT: .0, Range: .0-1.0 seconds .0 Secs Pre-wet of ambient water on top of the coffee grounds.
  • Page 9 ADJUSTING BREWING PARAMETERS (Continued) Press "-" to reduce or "+" to increase. PRESS OUT TIME DEFAULT: 60, Range: 20-70 LENGTH of the press-out time during finish. Press "-" to reduce or "+" to increase tank target temp. SET TEMP DEFAULT: 200°F (93°C) 200°F Range: 165°F-208°F (74°C-98°C) COFFEE BREWING (Continued)

  • Page 10: Cleaning

    DAILY CLEANING SPRAYHEAD REMOVAL Clean & inspect parts daily. Replace if loose, cracked or damaged. Thoroughly wash sprayhead, cup and check valve (with mild soap and water) and rinse with fresh water. Wipe Lift handle. Remove brew chamber and cup. out the cap area above sprayhead and around O-rings.
  • Page 11 CLEANING TABLETS CLEANING CYCLE 1. Place tablet in brew cup. 2. Replace brew cup, close chamber. 3. Scroll through recipes using arrow buttons. 4. Press "SELECT" button when "CLEAN CYCLE" is displayed. 5. Repeat 1-4 as deemed necessary. DEEP CLEAN CYCLE 1.

  • Page 12: Front Panel Removal & Tank Draining

    FRONT PANEL REMOVAL AND TANK DRAINING WARNING: DISCONNECT BREWER FROM POWER SOURCE BEFORE PANEL REMOVAL. Remove drip tray. Remove two screws. Push the top down to clear the brew cham- Lower the panel as far as it will go. ber support arm, then pull the top out first. TANK DRAINING RESET TO FIRST TIME SETUP DISCONNECT BREWER...

  • Page 13: Advanced Adjustments & Optional Settings

    ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS PROGRAM MODE DEFAULT RANGE Perform Deep Clean? Recipe Changes Enabled Enabled/Locked Change Recipe Name Add Recipe Name Delete Recipe Name Set Language English/Spanish/French Units English English/Metric Base Temperature Disabled Enabled/ Disabled Brew Lockout YES/NO 10. Ready Degrees 5°F below "SET"...
  • Page 14 ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS Selecting "CUSTOM" will allow you to custom type your own ADD COFFEE NAME? name by scrolling through digits as described above. CUSTOM FromList Or you can scroll through a pre programmed list. House Special Guatemala El Salvador Decaf Brazil...
  • Page 15 ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS Press "-" or to toggle between ENGLISH, SPANISH, or ENGLISH FRENCH. Press "SELECT" to advance to next screen. SELECT DEFAULT: ENGLISH Press for "METRIC" or for "ENGLISH". UNITS Units of measurement will change from °F to °C; oz to METRIC DONE milliliters;...
  • Page 16 ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS Amount of press out time during primary rinse mode. 2nd RINSE AIR ON DEFAULT: 60 60 Secs Range: OFF/ 1-60 Primary rinse mode. "OFF" is equal to push & hold. Num- 2nd RINSE TIME bers represent seconds it will continue to rinse when 2.0 Secs button is released.
  • Page 17 ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS SERVICE TOOLS allows testing of load components and SERVICE TOOLS switches. It should only be used by trained technicians. Skip to "FACTORY DEFAULTS" Allows testing of load components by manually turning TEST OUTPUTS ? them ON/OFF. PLACE A CONTAINER UNDER DISPENSE AREA--- WARNING: HOT WATER COULD DISPENSE DUR- ING SOME TEST MODES! Skip to...
  • Page 18 ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS TankHeater RELAY NEXT TankHeater TRIAC NEXT Allows testing of the membrane switches & brew chamber TEST SWITCHES safety switch. Press "YES" to enter test mode. Display will read "PRESS PROGRAM TO EXIT" then change to "NOTH- ING PRESSED".
  • Page 19 ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS There will be several warning & informational screens dur- BREWING ing this test mode. HOT LIQUIDS!!!! DO NOT OPEN BREW CHAMBER OR REMOVE CONTAINER UNTIL FINISHED. DO NOT OPEN!!!! Entire process (including press out) takes approximately 2 - 2½...
  • Page 20 ADVANCED ADJUSTMENTS & OPTIONAL SETTINGS Reset all brew settings, calibrations, temperature adjust- FACTORY DEFAULTS ments and coffee names/recipes back to factory presets. Exit back to main screen WILL REPLACE ALL BREW SETTINGS ARE YOU SURE ? Exit back to main screen PLEASE WAIT RESTORE DEFAULTS _ _ EXIT PROGRAM MODE TO MAIN SCREEN...
