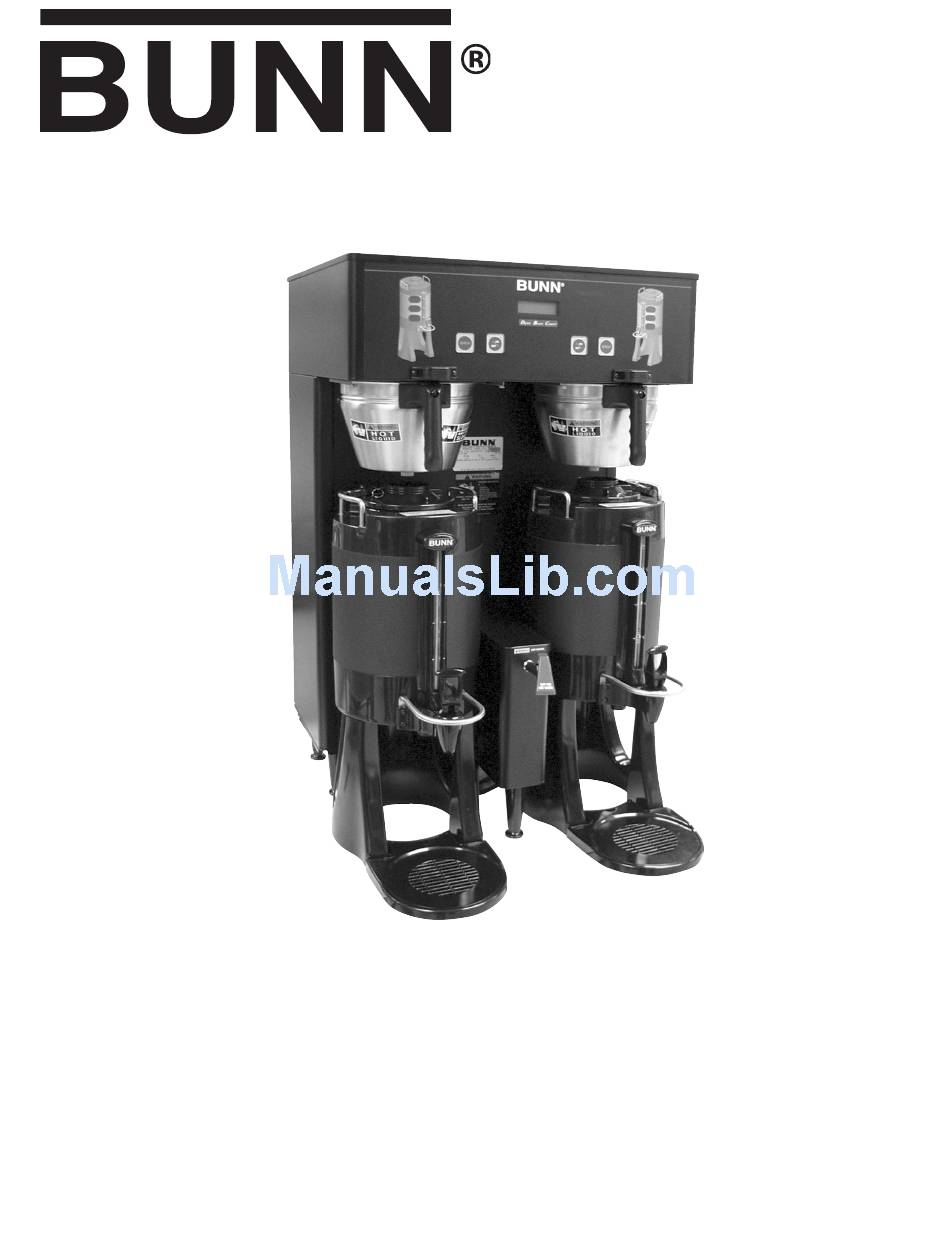

DUAL
TF DBC
®
®
W/SMART FUNNEL
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
www.bunn.com
35060.0000G 11/07 ©2003 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dual TF BrewWISE DBC and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn Dual TF BrewWISE DBC

Summary of Contents for Bunn Dual TF BrewWISE DBC

  • Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunn.com 35060.0000G 11/07 ©2003 Bunn-O-Matic Corporation...
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Base - Trunk - Hood - Covers & Panels ... 4 Dispense Valve, Water By-Pass Valve and Sprayhead ... 18 Electrical Controls ... 22 Faucet ... 20 Funnel... 28 Inlet Valve and Line ... 16 Numerical Index ... 30 Strainer, Solenoid &...

  • Page 4: Base - Trunk - Hood - Covers & Panels

    BASE - TRUNK - HOOD - COVERS & PANELS First Type Cover Plate DUAL TF P2718.30 35060 111607...
  • Page 5 BASE - TRUNK - HOOD - COVERS & PANELS ITEM PART NO. QTY. 34555.1001 34555.1002 34555.1003 01308.0003 37881.0000 25151.0000 34916.0000 34916.0001 34550.0002 34550.0003 02308.0000 34802.0000 34630.1000 34630.1001 34630.1002 34630.1003 00831.0000 00656.0000 34953.1000 34953.1001 01311.0000 01311.0004 00658.0000 34603.1001 01303.0002 36302.0000 34920.0000 34920.0001 34920.0002 34920.0003...
  • Page 6 BASE - TRUNK - HOOD - COVERS & PANELS First Type Cover Plate DUAL TF P2718.30 35060 111607...
  • Page 7 BASE - TRUNK - HOOD - COVERS & PANELS ITEM PART NO. QTY. 03996.0000 03011.0000 35291.0000 35291.0001 01347.0000 01347.0002 36398.0000 32649.0000 32649.0001 00970.0000 00824.0000 00619.0007 05749.0004 39803.0000 38820.0000 01347.0000 37881.0002 13255.0007 13255.0002 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. DESCRIPTION Pad, Anti Skid Plug, Vent...

  • Page 8: Tank Heater & Overflow Protection Devices

    TANK HEATER & OVERFLOW PROTECTION DEVICES DUAL TF P2616.50 35060 121502...
  • Page 9 TANK HEATER & OVERFLOW PROTECTION DEVICES ITEM PART NO. QTY. 12398.0002 20922.1000 20922.1002 12305.1000 00908.0000 23717.0003 00908.0000 02536.0000 20936.1000 01501.0000 20203.0100 00908.0000 34664.0000 00908.0000 26622.0001 02434.0010* 27473.0000 03803.0000 03803.0002 00946.0000 03633.0000 01527.0000* 03807.0000 22728.0000 00971.0000 12422.0000 03236.0023* 21801.0002 20541.0001 01382.0007 12565.0011 02328.0003 01520.0000...

  • Page 10: Tank And Mounting Brackets

    TANK AND MOUNTING BRACKETS DUAL TF Late Models P2617.45 35060 101607...
  • Page 11 ITEM PART NO. QTY. 26826.0000* 37526.0000 01315.0006 00908.0000 34753.0000 00908.0000 34758.0000 34750.0000 34663.0000 32591.0008* 12422.0009 11630.0001 35086.0000 32591.1002 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. TANK AND MOUNTING BRACKETS DESCRIPTION Bracket, Tank Support (Top) (Early models. Not available rder Late Model Bracket) Bracket, Tank Support (Top) (Late models) Screw, Pan Head BLK #8 - 32 x .375"...

  • Page 12: Strainer, Solenoid & Lines

    STRAINER, SOLENOID & LINES DUAL TF (Models with .25” Tubing) SOLENOID VALVE REPAIR PARTS P2618.50 35060 092603...
  • Page 13 ITEM PART NO. QTY. 02536.0000 20937.0001 21812.0007 34909.0000 02308.0000 00400.0001 01085.0002 28005.0000 01327.0000 01502.0000 28480.0000 28020.0000 01111.0002 28479.0000 28021.0000 28481.0000 00402.0001 34969.0000 23820.1000 - - - - - - - - 23721.0000 22249.0000 35085.0000 00463.0000 01532.0000 00459.0000 00310.0002 00436.0001 00935.0000 M2517.0000 * Indicates the part number listed is for reference only.
  • Page 14 STRAINER, SOLENOID & LINES DUAL TF (Models with .38” Tubing) 10 11 12 4 15 16 230V MODELS P2778 35060 092603...
  • Page 15 ITEM PART NO. QTY. 02536.0000 20937.0004 36089.0000 36083.0000 36083.0001 02308.0000 34768.0001 36088.0000 36088.0001 36088.0005 01317.0003 36085.0000 36087.0000 35840.0000 23720.1000 - - - - - - - - 23721.0000 22249.0000 36081.0000 35085.0001 02434.0005* 36084.0000 01315.0000 12757.0000 01514.0000 12756.0000 00310.0008 36081.0000 12919.0001 Items 23 - 25 are not illustrated M2517.0000 02434.1000...

  • Page 16: Inlet Valve And Line

    INLET VALVE AND LINE DUAL TF P3951 35060 111607...

  • Page 17: Inlet Valve And Line

    ITEM PART NO. QTY. 02536.0000 20937.0004 12418.0001 12422.0001 20976.0036* 36233.0005 36233.0006 32283.0000 37297.0001 20976.1001 20976.1002 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. INLET VALVE AND LINE DESCRIPTION Grommet .375" I.D. Tube, Tank Fill Fitting, Swivel .375"...

  • Page 18: Dispense Valve, Water By-Pass Valve And Sprayhead

    DISPENSE VALVE, WATER BY-PASS VALVE & SPRAYHEAD 4 5 2 1 DUAL TF P2619.50 35060 121502...
  • Page 19 DISPENSE VALVE, WATER BY-PASS VALVE & SPRAYHEAD ITEM PART NO. QTY. 12422.0009 12422.0005 32591.0007* 12422.0008 35052.0000* 32591.0006* 27370.0003 27370.0004 27370.0005 00970.0000 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23255.0000 - - - - - - - -...

  • Page 20: Faucet

    FAUCET DUAL TF Faucet W/Barb Fitting P2620.75 35060 111307...
  • Page 21 ITEM PART NO. QTY. 02596.1009 29075.0002 02861.0003 02854.0000 02595.0000 02766.0000 02856.0008* 02856.0009* 13054.0000 02858.0000 02594.0000 12422.0001 28526.0025* 28526.0020* 12437.0000 27574.0000 02850.0000 29264.0000 01544.0000 28706.0002 28526.1001 28526.1002 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. FAUCET DESCRIPTION Faucet Assy (Includes items 2 thru 8 &...

  • Page 22: Electrical Controls

    230/400V 3 Phase Models only Models With Main Power Switch ELECTRICAL CONTROLS Torque to 18 in. lbs. 3 Phase Brewers DUAL TF Early Type Funnel Lock Torque to 18 in. lbs. 230/400V 3 Phase Models only 230V Models only P2621.50 35060 040907...
  • Page 23 ITEM PART NO. QTY. 29969.1000 29969.1003 38358.1000 38358.1001 00973.0000 01533.0010 29970.0000 00973.0000 29494.0000 28897.0000 29493.0000 29504.0001 26247.0001 29504.0000 00991.0000 29503.0000 29503.0001 01519.0000 33613.0000 29492.0000 00970.0000 29495.0000 39981.0000 - - - - - - - - 39982.0000 35955.0000 35955.0001 35955.0002 33613.0000 01519.0000 35953.0000 38280.0000...
  • Page 24 230/400V 3 Phase Models only Models With Main Power Switch ELECTRICAL CONTROLS Torque to 18 in. lbs. 3 Phase Brewers DUAL TF Early Type Funnel Lock Torque to 18 in. lbs. 230/400V 3 Phase Models only 230V Models only P2621.50 35060 040907...
  • Page 25 ITEM PART NO. QTY. 34675.0000 34675.0001 02308.0000 01592.0001 01106.0000 01106.0001 01106.0003 07038.0000 07038.0001 21869.0000 01317.0000 38030.0000 01309.0000 01590.0000 32833.0000 27705.0000 01375.0000 01512.0000 28004.0001 25102.0000 23696.0000 04831.0000 12570.0000 29327.0000 00824.0000 29446.0002 29446.0005 01327.0000 38108.0000 01327.0000 34588.0001 06335.1000 38045.0000 02308.0000 37947.0000 38894.0001 38894.0002 01308.0002 01327.0000...
  • Page 26 230/400V 3 Phase Models only Models With Main Power Switch ELECTRICAL CONTROLS Torque to 18 in. lbs. 3 Phase Brewers DUAL TF Early Type Funnel Lock Torque to 18 in. lbs. 230/400V 3 Phase Models only 230V Models only P2621.50 35060 040907...
  • Page 27 ITEM PART NO. QTY. NOTE: The following items are not illustrated 35069.0000 37862.0003 33634.0003 33634.0018 33634.0028 33634.0004 33634.0019 33634.0011 33634.0023 33634.0029 33634.0012 34707.0000 37859.0001 38166.0000 37859.0002 37859.0003 38444.0000 21012.0132 21003.0416 34808.0002 38338.0000 35952.1003 35952.1004 35952.1005 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. ELECTRICAL CONTROLS DESCRIPTION Wiring Harness, Contactor (120/208V 3 Phase models only)

  • Page 28: Funnel

    FUNNEL DUAL TF P2340.50 35060 121502...
  • Page 29 ITEM PART NO. QTY. 32643.0000 24462.0002 03408.0004 03409.0004 32595.0000 12499.0002 33089.0000 32139.0000 32140.0000 01031.0001 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. FUNNEL DESCRIPTION Funnel Assy, SST (Each includes Items 2 thru 9) Funnel W/Decals (Includes items 3 &...

  • Page 30: Numerical Index

    PART NO. PAGE NO. PART NO. 00310.0002... 13 02434.1000... 9,15 00310.0008... 15 02536.0000... 9,13,15,17 00400.0001... 13 02594.0000... 21 00402.0001... 13 02595.0000... 21 00436.0001... 13 02596.1009... 21 00459.0000... 13 02766.0000... 21 00463.0000... 13 02850.0000... 21 00502.00... 5 02854.0000... 21 00619.0007... 7 02856.0008...
  • Page 31 PART NO. PAGE NO. PART NO. 34808.0002... 27 38045.0000... 25 34867.0004... 19 38108.0000... 25 34868.0000... 19 38166.0000... 27 34909.0000... 13 38280.0000... 23 34916.0000... 5 38338.0000... 27 34916.0001... 5 38358.1000... 23 34920.0000... 5 38358.1001... 23 34920.0001... 5 38444.0000... 27 34920.0002... 5 38894.0001...
