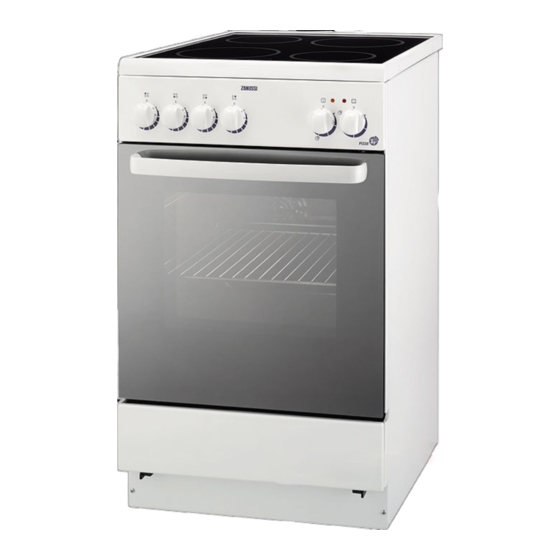

Zanussi ZCV560M User Manual

Hide thumbs

Advertisement

Quick Links

User manual
EN
Cooker
ZCV560M

Advertisement

loading

  Related Manuals for Zanussi ZCV560M

  Summary of Contents for Zanussi ZCV560M

  • Page 1 User manual Cooker ZCV560M...
  • Page 2: Table Of Contents

    Contents Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 Oven - Daily Use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6 Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4 Oven - Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ 7 Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5...
  • Page 3 mains at all poles. The isolation device must have a of plastic or aluminium) in, near or on the appliance. contact opening width of minimum 3 mm. There is a risk of explosion or fire. • The shock protection parts must be fixed in such a way •...
  • Page 4: Product Description

    • Regular cleaning prevents the surface material from de- not be used for the full or partial illumination of a teriorating. household room. • For your personal safety and the safety of your proper- • If it becomes necessary to replace the lamp use one of ty, only clean the appliance with water and soap.
  • Page 5: Before First Use

    Cooking surface layout Single cooking zone 1200 W Single cooking zone 1800 W Single cooking zone 1200 W Residual heat indicator Single cooking zone 1800 W Oven accessories • Storage compartment Below the oven is the storage compartment. • Oven shelf To use the compartment, lift the lower front door then For cookware, cake tins, roasts.
  • Page 6: Hob - Helpful Hints And Tips

    Heat settings To complete the cooking process, turn the control knob to the “0” position. If all cooking zones are de- activated, the hob control indicator goes out. Control knob Function Residual heat indicator Off position The residual heat indicator comes on when a cooking Heat settings zone is hot.
  • Page 7: Oven - Helpful Hints And Tips

    To deactivate the appliance, turn the oven functions safety thermostat, which interrupts the power supply. The control knob and the temperature control knob to the oven switches back on again automatically, when the tem- Off position. perature drops. Safety thermostat To prevent dangerous overheating (due to incorrect use of the appliance or defective components), the oven has a The oven functions...
  • Page 8 Cooking times cookware, recipes and quantities when you use this appli- ance. Cooking times depend on the type of food, its consisten- cy, and volume. Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your Conventional cooking Cooking / Preheating...
  • Page 9 Cooking / Preheating Temperature Food Weight (g) Tray type Shelf level baking time time (minutes) (°C) (minutes) Swiss apple 1900 enamelled 10-15 200-220 30-40 flan Christmas 2400 enamelled 10-15 170-180 55-65 cake Quiche Lor- 1000 1 round tray 10-15 220-230 40-50 raine (diameter: 26...
  • Page 10 Cooking / Preheating Temperature Food Weight (g) Tray type Shelf level baking time time (minutes) (°C) (minutes) Flat cake 500 + 500 enamelled 150-160 35-45 Flat cake 500 + 500 + enamelled 155-165 40-50 1/2/4 Yeast cake 2000 enamelled 170-180 40-50 with apples Apple pie...
  • Page 11: Oven - Care And Cleaning

    Cooking / Preheating Temperature Food Weight (g) Tray type Shelf level baking time time (minutes) (°C) (minutes) Peasant bread 750+750 2 round alu- 160-170 40-50 15-20 minized trays (diameter: 20 Romanian 600+600 2 round alu- 10-15 155-165 40-50 sponge cake minized trays (diameter: 25 Romanian...
  • Page 12 • Clean the front of the appliance with a soft cloth with warm water and cleaning agent. • To clean metal surfaces use a usual cleaning agent • Clean the oven interior after each use. Thus you can re- move dirt more easily and it does not burn on. •...
  • Page 13: What To Do If

    • Remove the fuses in the fuse box or switch off the cir- cuit breaker. Put a cloth on the bottom of the oven for protection of the oven light and glass cover. Replacing the oven light bulb/cleaning the glass cover Turn the glass cover anti-clockwise to remove it.
  • Page 14: Environment Concerns

    Location of the appliance Dimensions You can install your freestanding appliance with cabinets Width 500 mm on one or two sides and in the corner. Depth 600 mm Total electricity power 8685 W Voltage 230 V Frequency 50 Hz Electrical installation The manufacturer is not responsible if you do not follow safety precautions from chapter "Safety infor- mation".
  • Page 15 Warning! Your appliance should be made To do this, take the mains plug from the socket and inoperable before it is disposed of, so that it does remove the mains cable from the appliance. not constitute a danger.
  • Page 16 www.zanussi.com/shop...
