O
PERATIONS ESSENTIAL FOR CORRECT OPERATION
T
O CONNECT IT TO THE TELEPHONE LINE
As the connection to the telephone line of the fax machine, ex-
ternal answering machine (base model), emergency telephone
or other devices is regulated by national standards that vary
from one country to another, the diagrams that follow should
therefore be taken simply as examples of these connec-
tions. However, if the connection to the telephone line is different
in your country from those shown in the diagrams, respect the
regulations in force in your country.
The fax machine is set up for connection to the public tel-
ephone line. If you want to connect it to a private line and you
also want to use it on a public line, see "To set it up for the
telephone line".
C
ONNECTING THE FAX MACHINE

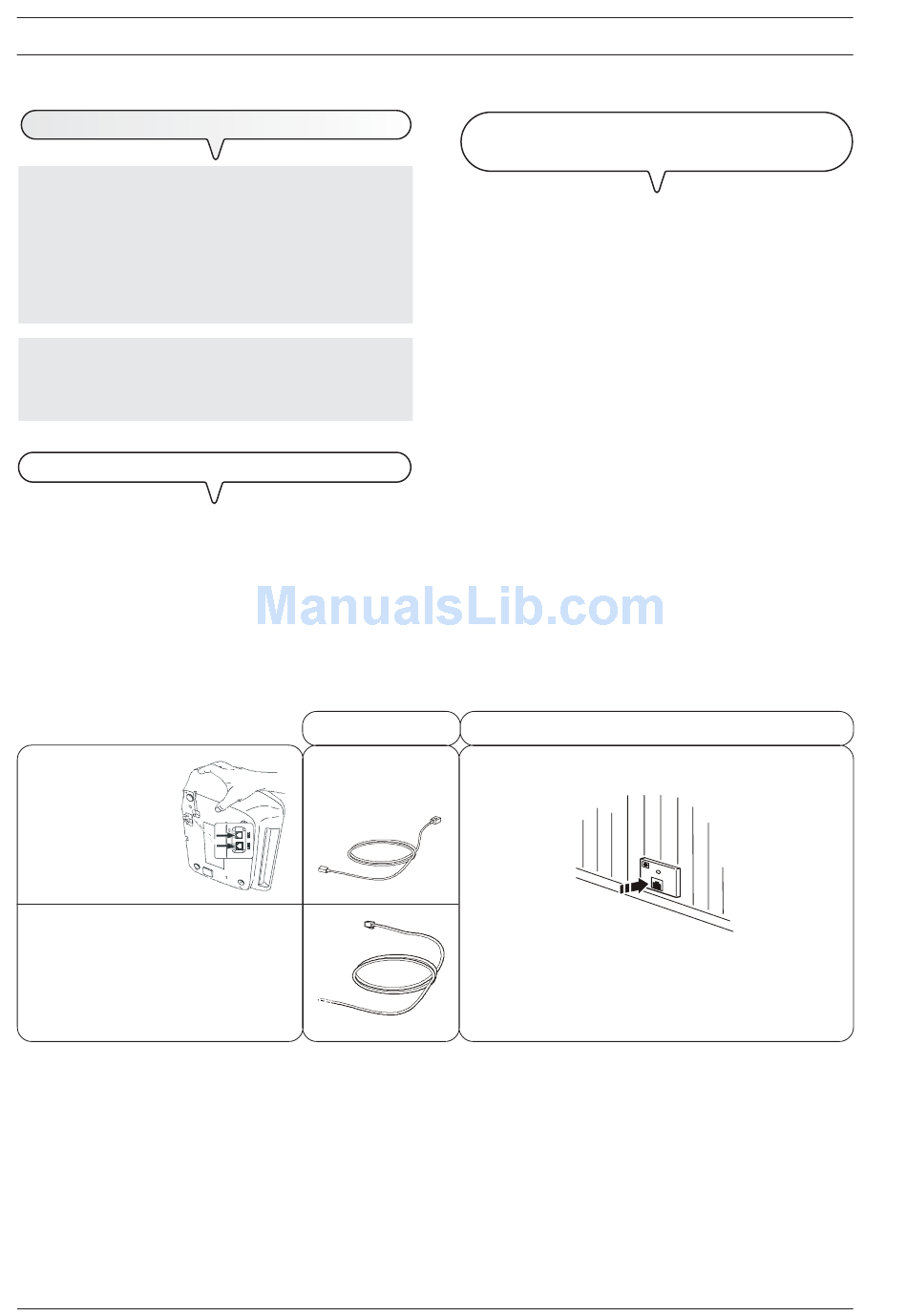

1. Place the fax machine on its right side and insert the plug on the
cable for connecting it to the telephone line into the "LINE" socket
on the base of the fax machine (see diagrams "case 1", "case 2"
or "case 3").
2. Insert the connector or the plug (if applicable) at the other end of
the cable into the wall telephone line socket (see diagrams "case
1", "case 2" or "case 3").
C 1
ASE CONNECTION
F
AX
Connection sockets
E
MERGENCY TELEPHONE OR
EXTERNAL ANSWERING
( )
MACHINE BASE MODEL
2
C
ORD
C
A
A
C
C
ONNECTING THE EXTERNAL ANSWERING MACHINE
)
MODEL AND EMERGENCY TELEPHONE
(Case 1 connection)
1. Place the fax machine on its right side and, if present, remove the
cover of the "EXT" socket for connecting the machine to the tel-
ephone line on the fax machine, then insert the plug of the external
answering machine (base model) or emergency telephone ca-
ble into this socket (see corresponding diagram).
If you cannot connect the external answering machine (base
model) or emergency telephone directly to the "EXT" socket, use
the relevant adapter (which varies from one country to another).
(Case 2 connection)
1. Insert the connector or plug (which varies from one country to
another) of the additional device into the plug-socket (see dia-
gram).
(Case 3 connection)
1. Insert the plug of the additional device into the wall telephone line
socket (see diagram).
If you want, using the relevant adapter (as for the case 1 connec-
tion), you can connect another device to the "EXT" socket for
connection to the telephone line on the fax machine.
W
ALL SOCKETS FOR CONNECTION TO TELEPHONE LINE
B
B
(
BASE
