Installing a Floppy Diskette Drive

The motherboard has a floppy diskette drive (FDD) interface and ships with a diskette drive
ribbon cable that supports one or two floppy diskette drives. You can install a 5.25-inch
drive and a 3.5-inch drive with various capacities. The floppy diskette drive cable has one
type of connector for a 5.25-inch drive and another type of connector for a 3.5-inch drive.
You must orient the cable connector so that the pin 1 (color) edge of the
cable corresponds to the pin 1 of the I/O port connector.

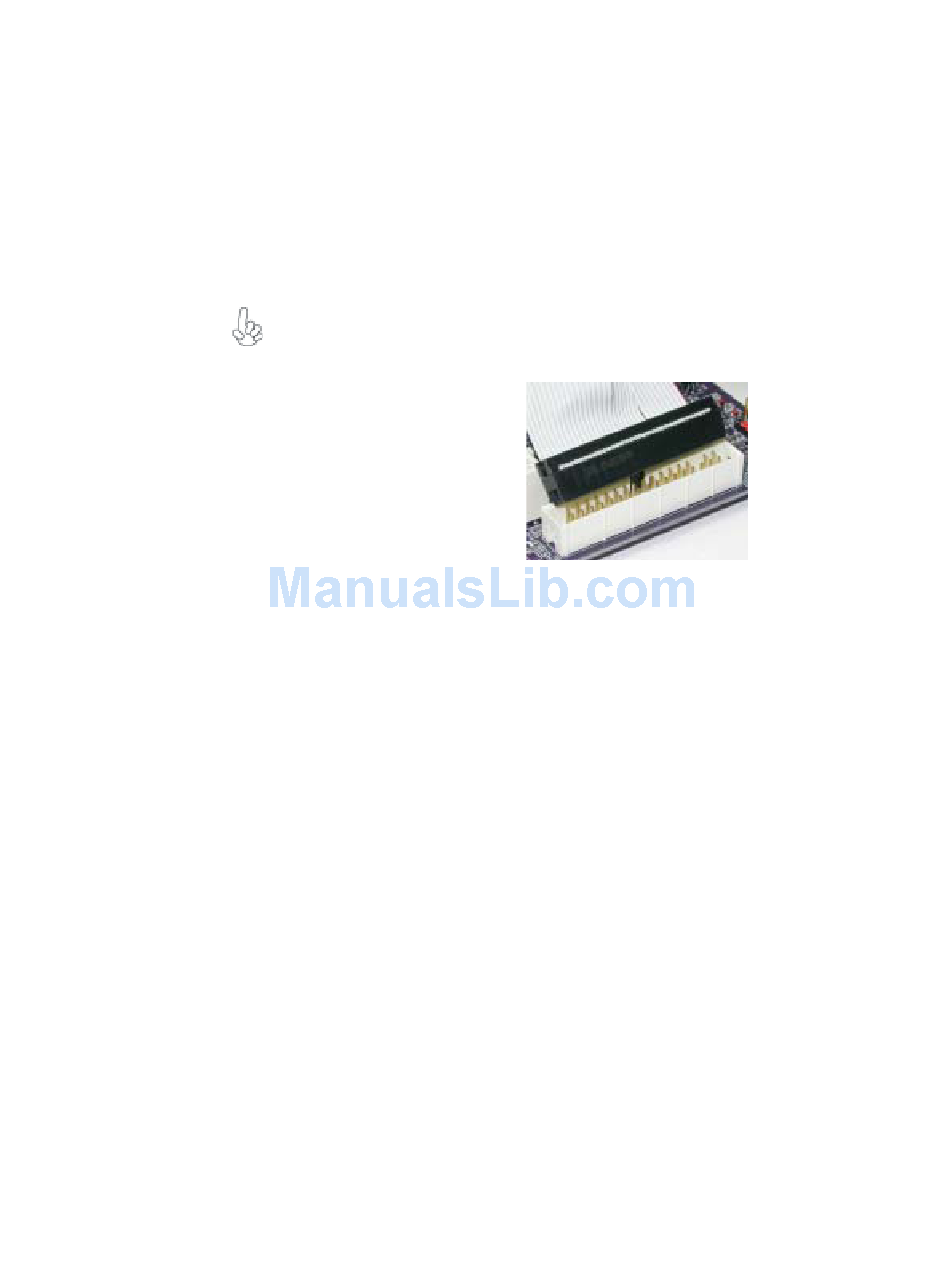

FDD1: Floppy Disk Connector
This connector supports the provided floppy
drive ribbon cable. After connecting the single
end to the onboard floppy connector, connect
the remaining plugs on the other end to the
floppy drives correspondingly.
