Summary of Contents for ECS G31T-M7

  • Page 3 Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0B Disclaimer The information in this document is subject to change without notice.

  • Page 4: Declaration Of Conformity

    Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interfer- ence that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations.

  • Page 5: Table Of Contents

    T T T T T ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface Chapter 1 Introducing the Motherboard Introduction..................1 Feature....................2 Motherboard Components.............4 Chapter 2 7 7 7 7 7 Installing the Motherboard Safety Precautions................7 Choosing a Computer Case............7 Installing the Motherboard in a Case..........7...
  • Page 6 Integrated Peripherals............33 Power Management Setup..........34 PCI/PnP Setup..............36 PC Health Status...............36 Frequency/Voltage Control..........39 Load Default Settings............40 Supervisor Password............40 User Password..............41 Save & Exit Setup..............41 Exit Without Saving............41 Updating the BIOS.............42 Chapter 4 43 43 43 43 Using the Motherboard Software About the Software CD-ROM............43 Auto-installing under Windows Vista.........43 Running Setup..............44 Manual Installation................48...

  • Page 7: Introducing The Motherboard

    Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the G31T-M7 motherboard. This motherboard is a high performance, enhanced function motherboard designed to support the LGA775 socket ® ™ ® Intel Yorkfield/Wolfdale/Core 2 Quad (Q6600/Q6700 G0)/Pentium Dual-Core/ ® Celeron 4xx Series processors for high-end business or personal desktop markets.

  • Page 8: Feature

    Feature Processor ® ™ The motherboard uses an LGA775 type of Intel Yorkfield/Wolfdale/Core ® ® Quad (Q6600/Q6700 G0)/Pentium Dual-Core/Celeron 4xx Series that car- ries the following features: ® ™ • Accommodates Intel Yorkfield/Wolfdale/Core 2 Quad (Q6600/Q6700 ® ® G0)/Pentium Dual-Core/Celeron 4xx Series processors •...

  • Page 9: Bios Firmware

    Audio (optional) This motherboard may support either of the following Audio chipsets: • 5.1 Channel High Definition Audio Codec • ADCs support 44.1K/48K/96KHz sample rate • Meet Microsoft WLP 3.08 Vista premium and mobile PCs audio requirements • Direct Sound 3D compatible •...

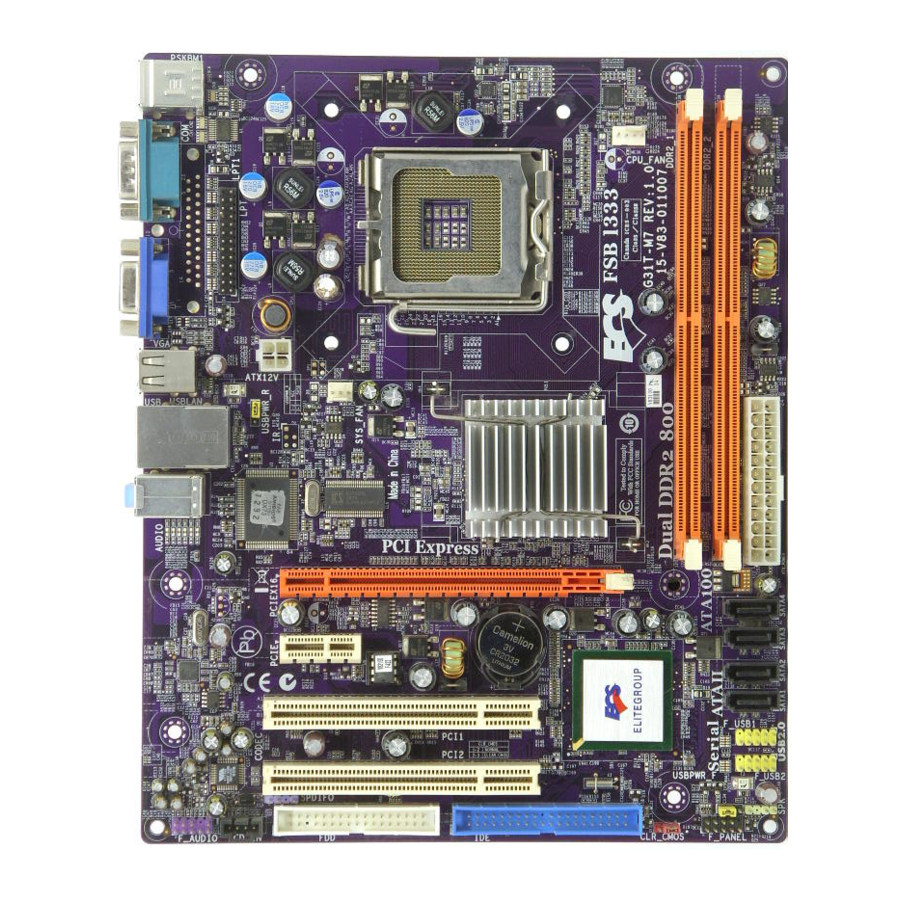

  • Page 10: Motherboard Components

    Motherboard Components Introducing the Motherboard...
  • Page 11 Table of Motherboard Components LABEL COMPONENTS ® ™ LGA775 socket for Intel Yorkfield/Wolfdale/Core ® 1. CPU Socket Quad (Q6600/Q6700 G0)/Pentium Dual-Core/ ® Celeron 4xx Series processors 2. CPU_FAN CPU cooling fan connector 3. DDR2_1~2 240-pin DDR2 SDRAM slots 4. ATX_POWER Standard 24-pin ATX power connector 5.
  • Page 12 Memo Introducing the Motherboard...

  • Page 13: Installing The Motherboard

    Chapter 2 Installing the Motherboard Safety Precautions • Follow these safety precautions when installing the motherboard • Wear a grounding strap attached to a grounded device to avoid dam- age from static electricity • Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard •...

  • Page 14: Checking Jumper Settings

    Do not over-tighten the screws as this can stress the motherboard. Checking Jumper Settings This section explains how to set jumpers for correct configuration of the motherboard. Setting Jumpers Use the motherboard jumpers to set system configuration options. Jumpers with more than one pin are numbered.

  • Page 15: Checking Jumper Settings

    Checking Jumper Settings The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled. Jumper Settings Jumper Type Description Setting (default) 1-2: NORMAL 2-3: CLEAR CMOS CLR_CMOS 3-pin Clear CMOS Before clearing the CLR_CMOS CMOS, make sure to turn off the system.

  • Page 16: Installing Hardware

    Installing Hardware Installing the Processor Caution: When installing a CPU heatsink and cooling fan make sure that you DO NOT scratch the motherboard or any of the surface- mount resistors with the clip of the cooling fan. If the clip of the cooling fan scrapes across the motherboard, you may cause serious damage to the motherboard or its components.

  • Page 17: Cpu Installation Procedure

    CPU Installation Procedure The following illustration shows CPU installation components. A. Read and follow the instructions shown on the sticker on the CPU cap. B. Unload the cap · Use thumb & forefinger to hold the lifting tab of the cap. ·...

  • Page 18: Installing Memory Modules

    Installing Memory Modules This motherboard accommodates two memory modules. It can support two 240-pin DDR2 800/667. The total memory capacity is 4 GB. DDR2 SDRAM memory module table Memory module Memory Bus DDR2 667 333 MHz DDR2 800 400 MHz You must install at least one module in any of the two slots.
  • Page 19 Table A: DDR2 (memory module) QVL (Qualified Vendor List) The following DDR2 800/667 memory modules have been tested and qualified for use with this motherboard. Type Size Vendor Module Name VALUESELECT 32M8CEC Corsair 64M8CFE PS1000545 Cor sair K4T51083QC GEIL GL2L64M088BA18W 512 MB Ramaxel 5LB31 D9DCL...

  • Page 20: Expansion Slots

    Expansion Slots Installing Add-on Cards The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard’s features and capabilities. With these efficient facilities, you can in- crease the motherboard’s capabilities by adding hardware that performs tasks that are not part of the basic system.
  • Page 21 Follow these instructions to install an add-on card: Remove a blanking plate from the system case corresponding to the slot you are going to use. Install the edge connector of the add-on card into the expansion slot. Ensure that the edge connector is correctly seated in the slot. Secure the metal bracket of the card to the system case with a screw.

  • Page 22: Connecting Optional Devices

    Connecting Optional Devices Refer to the following for information on connecting the motherboard’s optional devices: F_AUDIO: Front Panel Audio header for Azalia This header allows the user to install auxiliary front-oriented microphone and line- out ports for easier access. Signal Name Signal Name PORT 1L AUD_GND...
  • Page 23 F_USB1~2: Front Panel USB headers The motherboard has four USB ports installed on the rear edge I/O port array. Additionally, some computer cases have USB ports at the front of the case. If you have this kind of case, use auxiliary USB connector to connect the front-mounted ports to the motherboard.

  • Page 24: Installing A Hard Disk Drive/Cd-Rom/Sata Hard Drive

    Installing a Hard Dish Drive/CD-ROM/SATA Hard Drive This section describes how to install IDE devices such as a hard disk drive and a CD- ROM drive. About IDE Devices Your motherboard has one IDE channel interface. An IDE ribbon cable supporting two IDE devices is bundled with the motherboard.

  • Page 25: Installing A Floppy Diskette Drive

    Refer to the illustration below for proper installation: Attach either cable end to the connector on the motherboard. Attach the other cable end to the SATA hard drive. Attach the SATA power cable to the SATA hard drive and connect the other end to the power supply.

  • Page 26: Connecting I/O Devices

    Connecting I/O Devices The backplane of the motherboard has the following I/O ports: PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device. PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard. Serial Port Use the COM port to connect serial devices such as mice or (COM) fax/modems.

  • Page 27: Connecting Case Components

    Connecting Case Components After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following: Connect the CPU cooling fan cable to CPU_FAN. Connect the system cooling fan connector to SYS_FAN. Connect the case switches and indicator LEDs to the F_PANEL. Connect the case speaker cable to SPK.

  • Page 28: Atx 12V Power Connector

    CPU_FAN: CPU Cooling FAN Power Connector Signal Name Function System Ground Power +12V +12V Sensor Sense Users please note that the fan connector supports the CPU cooling fan of 1.1A ~ 2.2A (26.4W max) at +12V. SYS_FAN: System Cooling FAN Power Connector Signal Name Function System Ground...

  • Page 29: Front Panel Header

    SPK: Internal speaker Signal Name Signal Front Panel Header The front panel header (F_PANEL) provides a standard set of switch and LED headers commonly found on ATX or micro-ATX cases. Refer to the table below for informa- tion: Signal Function Signal Function HD_LED_P Hard disk LED (+)
  • Page 30 Memo Installing the Motherboard...

  • Page 31: Using Bios

    Chapter 3 Using BIOS About the Setup Utility The computer uses the latest “American Megatrends Inc. ” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS. The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters.

  • Page 32: Using Bios

    Press the delete key to access the BIOS Setup Utility. CMOS Setup Utility -- Copyright (C) 1985-2005, American Megatrends, Inc. Standard CMOS Setup Frequency/Voltage Control Advanced Setup Load Default Settings Advanced Chipset Setup Supervisor Password Integrated Peripherals User Password Power Management Setup Save &...

  • Page 33: Standard Cmos Setup

    For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture’s website for updated manual.
  • Page 34 CMOS SETUP UTILITY – Copyright (C) 1985-2005, American Megatrends, Inc. Primary IDE Master Primary IDE Master Help Item Device : Hard Disk Select the type Vendor: ST3320620AS of device connected Size: 309.8GB to the system. LBA Mode: Supported Block Mode: 16Sectors PIO Mode: Async DMA: MultiWord DMA-2 Ultra DMA: Ultra DMA-6...

  • Page 35: Advanced Setup

    Drive A (1 ..44 MB 3 ”) This item defines the characteristics of any diskette drive attached to the system. You can connect one or two diskette drives. Press <Esc> to return to the main menu setting page. Advanced Setup This page sets up more advanced information about your system.
  • Page 36 Quick Power on Self Test (Enabled) Enable this item to shorten the power on testing (POST) and have your system start up faster. You might like to enable this item after you are confident that your system hardware is operating smoothly. Boot Up Numlock Status (On) This item defines if the keyboard Num Lock key is active when your system is started.
  • Page 37 Removable Drives (Press Enter) Scroll to this item and press <Enter> to view the following screen: CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Removable Drives Removable Drives Help Item 1st Drive 1st FLOPPY DRIVE Specifies the boot sequence from the available devices.

  • Page 38: Advanced Chipset Setup

    Advanced Chipset Setup This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer. CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Advanced Chipset Setup DRAM Frequency Auto Help Item...

  • Page 39: Integrated Peripherals

    Integrated Peripherals This page sets up some parameters for peripheral devices connected to the system. CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Integrated Peripherals Onboard IDE Controller Enabled Help Item OnBoard SATA Controller Enhanced Onboard LAN Function Enabled DISABLED: disables the in- Onboard LAN Boot ROM...

  • Page 40: Power Management Setup

    Parallel Port IRQ (IRQ7) Use this item to assign IRQ to the parallel port. USB Functions (Enabled) Use this item to enable or disable the USB function. Legacy USB Support (Enabled) Use this item to enable or disable support for legacy USB devices. Setting to Auto allows the system to detect the presence of USB device at startup.
  • Page 41 PWRON After PWR-Fail (Power Off) This item enables your computer to automatically restart or return to its operating status. Resume By RING (Disabled) An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state. Resume By PCI/PCI-E/Lan PME (Disabled) These items specify whether the system will be awakened from power saving modes when activity or input signal of the specified hardware peripheral or component is...

  • Page 42: Pci/Pnp Setup

    PCI / PnP Setup This page sets up some parameters for devices installed on the PCI bus and those utilizing the system plug and play capability. CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. PCI / PnP Setup Help Item Init Display First Allocate IRQ to PCI VGA...
  • Page 43 Smart Fan Function Scroll to this item and press <Enter> to view the following screen: CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Smart Fan Function Help Item SMART Fan Control Disabled Options Disabled Enabled : Move Enter : Select +/-/: Value F10: Save ESC: Exit...
  • Page 44 CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Smart Fan Function Help Item SMART Fan Control Enabled SMART Fan start PWM value Options SMART Fan start Offset (-) CPU DeltaT Disabled Fan1 Slope PWM value/1 Unit Enabled Fan1 Full Speed Offset (-) SMART Fan2 Control Disabled : Move...

  • Page 45: Frequency/Voltage Control

    Frequency/Voltage Control This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have in- stalled in your system. CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Frequency/Voltage Control Help item Manufacturer : Intel...

  • Page 46: Load Default Settings

    Load Default Settings This option opens a dialog box that lets you install stability-oriented defaults for all appropriate items in the Setup Utility. Select <OK> and then press <Enter> to install the defaults. Select <Cancel> and then press <Enter> to not install the defaults.

  • Page 47: User Password

    User Password This page helps you install or change a password. CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. User Password User Password : Not Installed Help item : Move Enter : Select +/-/: Value F10: Save ESC: Exit F1:General Help F9: Load Default Settings User Password (Not Installed)

  • Page 48: Updating The Bios

    Updating the BIOS You can download and install updated BIOS for this motherboard from the manufacturer’s Web site. New BIOS provides support for new peripherals, improve- ments in performance, or fixes for known bugs. Install new BIOS as follows: If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.

  • Page 49: Using The Motherboard Software

    Chapter 4 Using the Motherboard Software About the Software CD-ROM The support software CD-ROM that is included in the motherboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your motherboard version.

  • Page 50: Running Setup

    Setup Tab Setup Click the Setup button to run the software installation program. Select from the menu which software you want to install. Browse CD The Browse CD button is the standard Windows command that al- lows you to open Windows Explorer and show the contents of the support CD.
  • Page 51 Click Next. The following screen appears: Check the box next to the items you want to install. The default options are recom- mended. Click Next run the Installation Wizard. An item installation screen appears: Follow the instructions on the screen to install the items. 1.
  • Page 52 Method 1. Run Reboot Setup Windows Vista will block startup programs by default when installing drivers after the system restart. You must select taskbar icon Run Blocked Program and run Reboot Setup to install the next driver, until you finish all drivers installation. Method 2.
  • Page 53 Select Classic View. Set User Account. Select Turn User Account Control on or off and press Continue. Using the Motherboard Software...

  • Page 54: Manual Installation

    Disable User Account Control (UAC) to help protect your computer item and press OK, then press Restart Now. Then you can restart your computer and continue to install drivers without running blocked programs. Manual Installation Insert the CD in the CD-ROM drive and locate the PATH.DOC file in the root directory.
