User Instructions

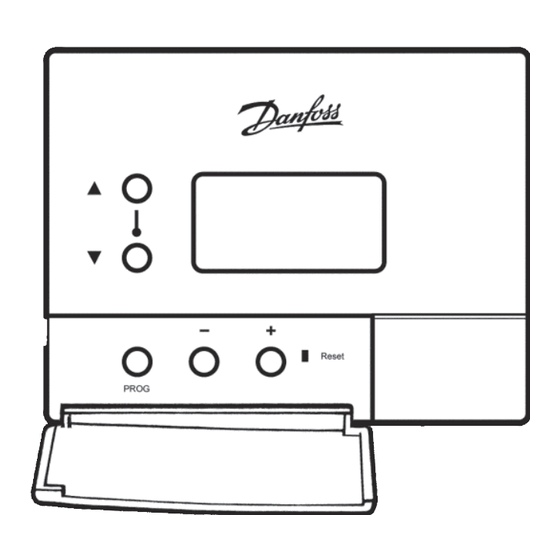

TP6000M & TP6000MA Electronic Programmable Room Thermostats
Product Features
•
2 or 4 programmed events each day, set by installer
•
5/2 day programming, provides diff erent set of
programmes for weekend
•
AM/PM or 24 hour clock display set by user
•
Centigrade or Fahrenheit temperature display, set by user
•
Mains powered
•
Factory pre-set programmes which can be edited by user
•
Built-in & remote sensor versions
LCD
DISPLAY
Heating Temperature
Thermostat Calling for Heat
Temperature Override - Up
Thermometer Mode Indicator
Temperature Override - Down
Main Display
Time or Temperature
Event Number
Keyboard
Locked
Day of week (1 = Monday)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss TP6000M
Summary of Contents for Danfoss TP6000M
-
Page 1: User Instructions
User Instructions TP6000M & TP6000MA Electronic Programmable Room Thermostats Product Features • 2 or 4 programmed events each day, set by installer • 5/2 day programming, provides diff erent set of programmes for weekend • AM/PM or 24 hour clock display set by user •... - Page 2 LCD DISPLAYS BUTTONS RESET Important note; Resetting the unit - To ensure correct operation press reset button before commencing with programming. Important note; If no buttons are pressed for two minutes the unit will automatically go back to run mode. All changes made will be saved. B) U SER PREFERENCES Before programming the thermostat it is recommended that the user preferences as regards...
- Page 3 LCD DISPLAYS BUTTONS 2. Press PROG to advance to temperature setting. PROG then 3. Press buttons to adjust heating temperature OPTIONAL: If heating is not required, “Off ” can be selected below 5°C. Press PROG button to move onto event 2 programming and follow details below: PROG then 1.
- Page 4 LCD DISPLAYS BUTTONS PROG 2. Press PROG to advance to temperature setting. then 3. Press buttons to adjust heating temperature OPTIONAL: If heating is not required, “Off ” can be selected below 5°C. Press PROG button to move onto event 2 programming and follow details below. PROG then 1.
- Page 5 LCD DISPLAYS BUTTONS AILY SE INSTRUCTIONS E) T EMPORARY CHANGES TO PROGRAMMED TEMPERATURES Press either buttons to view programmed temperatues. Note: If Off is selected this option does not operate. Then use button to temporarily raise temperature, a symbol will appear in the LCD dis- play.
- Page 6 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifi cations already agreed. Danfoss Randall Ltd Ampthill Road,...
