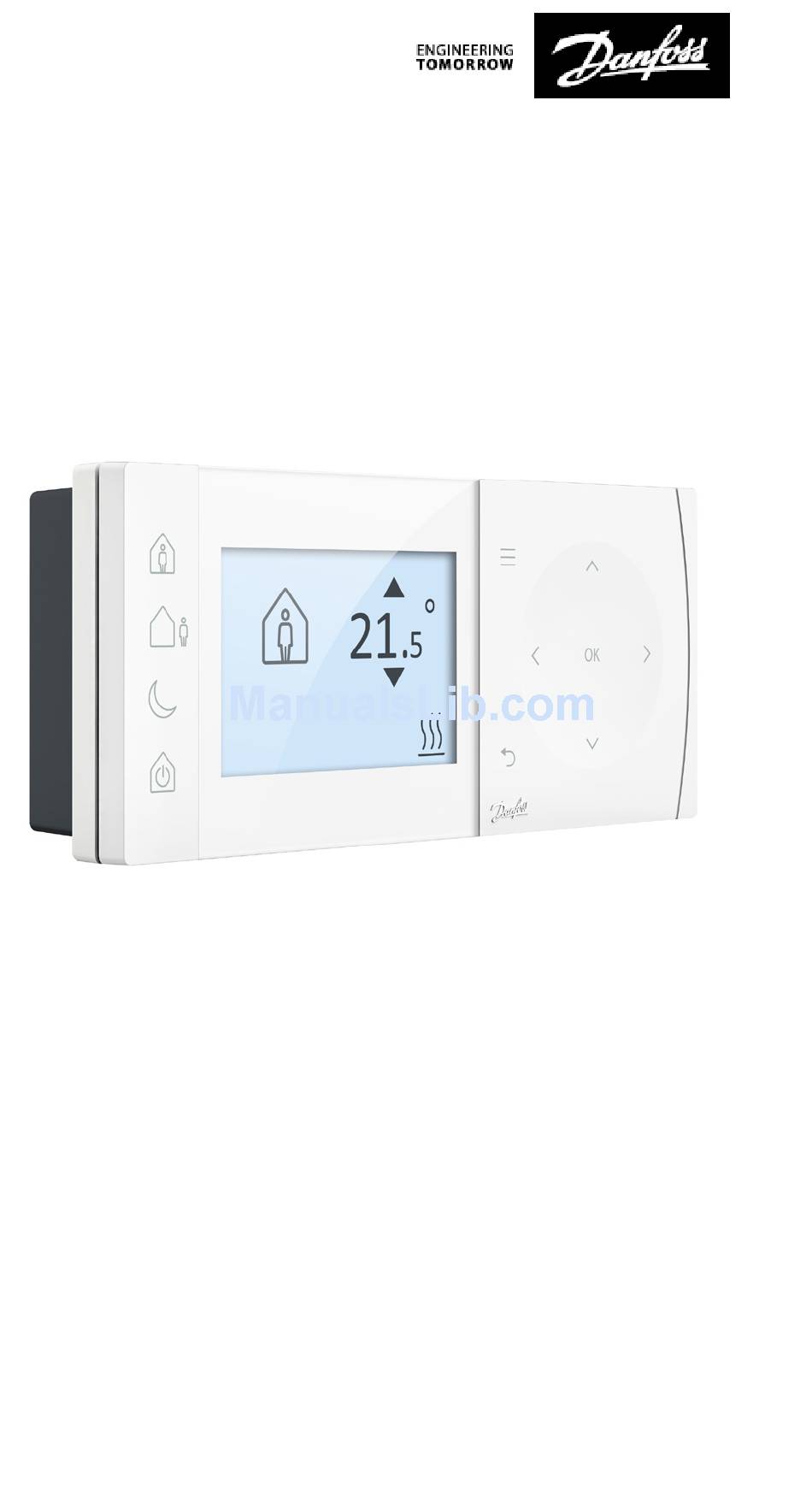

- Page 1 TPOne-M Electronic Programmable Room Thermostat including Domestic Hot Water Timer Installation Guide Danfoss Heating...
- Page 2 Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other printed material. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
-
Page 3: Installation Instructions
Installation Instructions Specifications TPOne-M Operating Voltage 230Vac, 50/60Hz Output 1 (Heating) Volt Free Setting temperature range 5-35°C Operating temprature range 0-45°C Switch rating 1 3A (1) at 230Vac Switch type 1 1 x SPDT Type 1B Output 2 (Domestic Hot Water) - Page 4 Mounting Thermostat or Remote Room Sensor positioning: Please note: This product should only be installed by a qualified electrician or competent heating installer and should be in accordance with the local wiring regulations. TPOne-M...
- Page 5 Remote room or limit sensor Window switch contact NOTE: Remote Sensor to be wired with 1mm 2 core double insulated cable only. Cable length should not exceed 10 metres. Sensor cable should NOT be run parallel to mains cable. Danfoss Heating...
-
Page 6: User Interface
1sec, this will place the TPOne into an active setting state. While active the TPOne will respond immediately to any valid key press. If no key presses are made for 30secs the buttons will go back to an idle state. TPOne-M... -
Page 7: Comfort Modes
Note: the standby option places the heating control in standby only, if Hot Water is set up this is not affected. To switch Hot Water control off see User Menu > Hot Water > Mode Danfoss Heating... - Page 8 The Navigation buttons are used to navigate the TPOne menus and change setting values. Naviga- The up & down buttons are also used to tion manually change the required temperature. Navigation arrows will be shown on the display when these buttons can be used. TPOne-M...
- Page 9 Calling schedule. This is indicated by the Hot Water Calling icon. NOTE: TPOne monitors several conditions and will provide warning or information messages when necessary. Details on these can be found on pages 24 - 26. Danfoss Heating...
-
Page 10: Setup Wizard
Language English Set Date 04 - 02 - 2016 Set Time 24hr - 10 : 45 Hot Water Setup Off 10:45 Thurs READY TPOne-M... -
Page 11: Set Temperatures
See page 22 for default temperatures 10:45 Thurs User Menu Temperatures Temperatures Home AM - 21. Home PM - 22. Away - 16. Asleep - 12. User Menu Temperatures Danfoss Heating... -
Page 12: Setup Schedule
See page 22 for default schedule times 10:45 Thurs User Menu Schedule Schedule Heating Schedule - Heating Select Days Schedule - Heating Tues Weds Thurs Mon OK Thurs OK TPOne-M... - Page 13 Home Period - 1 From 08.30 06.00 Home Period - 2 From 13.30 12.30 Home Period - 3 From 17.30 22.30 Sechedule - Heating Your heating schedule has been saved User Menu Schedule Danfoss Heating...
- Page 14 In schedule mode the thermostat will follow the user set heating schedule. In manual mode the user set schedule will be ignored, the required comfort mode is then chosen manually. Default setting: Scheduled TPOne-M...
- Page 15 Enter start and end date of your holiday and the required energy saving home temperature.. Danfoss Heating...
-
Page 16: User Settings
User Reset will return user settings only to the TPOne factory default. Note: User Reset will not reset settings in the first level user menu or the date and time. Information Information on product type, software level and boiler service interval date if set. TPOne-M... -
Page 17: Installer Settings
Installer Settings Hot Water The TPOne-M can be used as a single channel Setup programmable thermostat to control the temperature regulation of the heating system only or as a two channel programmable thermostat to control the heating and the time schedule of a domestic hot water circuit. - Page 18 TPOne is placed in standby mode. Default: 5°C Temperature This establishes the degree of manual temperature Override override available to the user, No Limit, Limited +/- 2°C or No Override Default: No Limit TPOne-M...
- Page 19 None - No external sensor fitted Room Sensor - Remote room sensor fitted. This will take priority over the TPOne internal sensing. Danfoss part TS2A - sold seperately Window Sensor - Where a window sensor has been fitted the TPOne will go into standby mode while the window is open.
- Page 20 Installer Select option to reset all installer settings to Reset factory defaults. Note: Service interval will not be reset and can only be reset or deactivated by entering the service interval setup. TPOne-M...
-
Page 21: Service Interval
- The installer may cancel or reset the service interval timer as part of the boiler service. - This is a gas safety feature that can only be accessed by a qualified heating installation engineer. *Gas Safety Regulations may vary according to region Danfoss Heating... -
Page 22: Default Tables
Note: Where TPOne has been set up for domestic hot water control the default schedule for hot water is the same as for heating. In schedule set up user can set one, two or three ON periods, TPOne will automatically fill in gaps with OFF periods TPOne-M... - Page 23 Default tables (Continued) TEMPERTURE DEFAULTS 20°C 20°C 15°C 15°C Danfoss Heating...
- Page 24 Start Start this message will display while this feature is active. see page 18 Delayed If the TPOne start up method is set to Delayed Start Start this message will display while this feature is active. see page 18 TPOne-M...
- Page 25 If the floor temperature has reduced to a safe level the TPOne will continue to control heating but the reason for the overheat may still exist. The floor heating system should be checked to ensure overheating does not reoccur. Danfoss Heating...
- Page 26 If a floor temperature sensor has been fitted and Sensor Fail the TPOne is measuring outside it’s operational parameters then it may indicate a problem with the floor sensor or connecting cable. If this warning cannot be reset then contact your service provider for advice. TPOne-M...
- Page 27 Danfoss Heating...
- Page 28 Danfoss Ltd. Ampthill Road Bedford MK42 9ER Tel: 01234 364621 Fax: 01234 219705 Email: ukheating@danfoss.com Website: www.heating.danfoss.co.uk © Danfoss HS | 02/2016 | VIHSH102...
