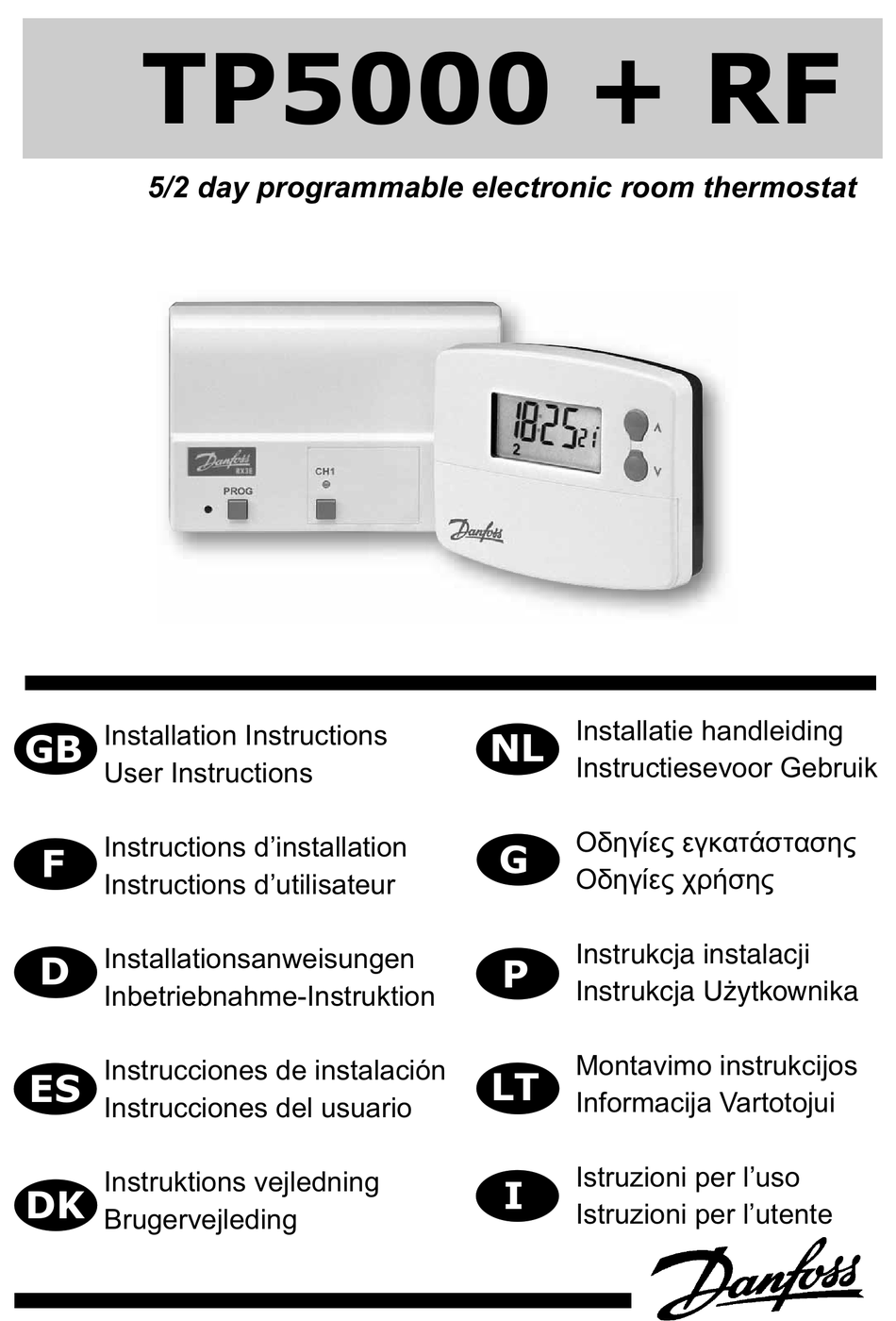

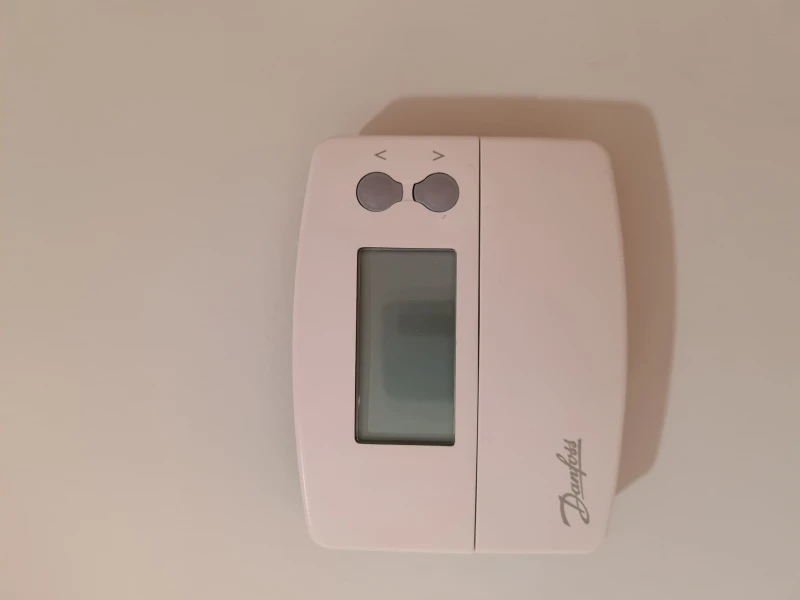

  • Page 1 TP5000 + RF 5/2 day programmable electronic room thermostat Installatie handleiding Installation Instructions Instructiesevoor Gebruik User Instructions Ïäçãßåò åãêáôÜóôáóçò Instructions d’installation Ïäçãßåò ÷ñÞóçò Instructions d’utilisateur Instrukcja instalacji Installationsanweisungen Instrukcja Użytkownika Inbetriebnahme-Instruktion Montavimo instrukcijos Instrucciones de instalación Informacija Vartotojui Instrucciones del usuario Istruzioni per l’uso...
  • Page 2 Installation Instructions User Instructions 7-12 Instructions d’installation 13-16 Instructions d’utilisateur 17-22 Installationsanweisungen 23-26 Inbetriebnahme-Instruktion 27-32 Instrucciones de instalación 33-36 Instrucciones del usuario 37-42 Instruktions vejledning 43-46 Brugervejleding 47-52 Installatie handleiding 53-56 Instructiesevoor Gebruik 57-62 Ïäçãßåò åãêáôÜóôáóçò 63-66 Ïäçãßåò ÷ñÞóçò 67-72 Instrukcja instalacji 73-76 Instrukcja Użytkownika...

  • Page 3: Installation Instructions

    Installation Instructions Please Note: This product should only be installed by a qualifi ed electrician or competent heating installer and should be in accordance with the current edition of the IEEE wiring regulations. Product Specifi cation Thermostat features TP5000 TP5000-RF Power supply 2 x AA/MN1500/LR alkaline cells Memory back-up...

  • Page 4: Installation

    Installation First, remove the wallplate from the back of the unit. From the top left hand corner of the wallplate, there must be clearances of at least 140mm to the right, 15mm to the left, 30mm above and 100mm below in order to mount the plug-in module.

  • Page 5: Rx Receiver Wiring (Rf Models Only)

    For a full explanation of all advanced features please visit our website www.danfoss-randall.co.uk or call 01234 364621 to obtain a copy of our Advanced Features Guide. Thermostat Wiring (not RF models) Some existing thermostats will have a Neutral and/or Earth wire connected.

  • Page 6: Commissioning (Rf Models Only)

    Commissioning (RF models only) To tune the RX receiver to the frequency of the thermostat signal, follow steps 1-5 below. Step 1 TP5000-RF Reset the unit by pressing and holding -, +, V and together until display goes blank. Step 2 Press and hold V and + buttons for 3 seconds (TP5000 now transmits...

  • Page 7: Your Programmable Room Thermostat

    User Instructions Your programmable room thermostat The TP5000 allows you to programme up to 6 times and temperatures at which your heating will come on and go off each day. You can programme one set of times and temperatures for weekdays and another set for weekends. It features several user overrides including frost protection, thermostat mode and time or temperature display.

  • Page 8: Before You Start

    Before you start Open the fl ap on the front of the programmer. Press the + & – AND L & M buttons simultaneously to reset the unit. This will reinstate the preset programmes and will set the time to 12:00 on Day 1 and the temperature to 20°C.

  • Page 9: Running Your Programme

    Running your programme If you are happy to use the preset programmes on page 7, you don’t need to do anything else. To accept the presets close the front cover i2 24 and after 2 minutes the presettings will automatically be accepted (& colon will blink). Your unit is now in RUN mode.

  • Page 10: Changing The Preset Programmes

    Changing the preset programmes For Days 1-5 (weekdays) a) Press PROG until 1st pre-set time and temperature (Event 1, Days 1,2,3,4,5) appears in display. 6 30 b) Use + or – buttons to adjust the TIME (press and hold to change in 10 min increments) c) Use L or M buttons to adjust the TEMPERATURE.

  • Page 11: User Overrides

    Running your programme Press PROG – the colon in the LCD i2 24 display will start to fl ash. The heating will now come on and go off at the programmed times. User Overrides Sometimes you may need to change the way you use your heating temporarily, i.e.due to unusually cold weather.

  • Page 12: Battery Replacement

    Frost Protection A constant low temperature between 5°C-30°C can be selected whilst away from home. J Press L and M together twice. J Use L or M buttons to set the desired low temperature. - At 5°C a snowfl ake symbol appears °...
  • Page 13 Part No 61075 Issue 01 04/05...
