No. Pushbutton
% STEP
COARSE
FINE
FINE
COARSE
% STEP

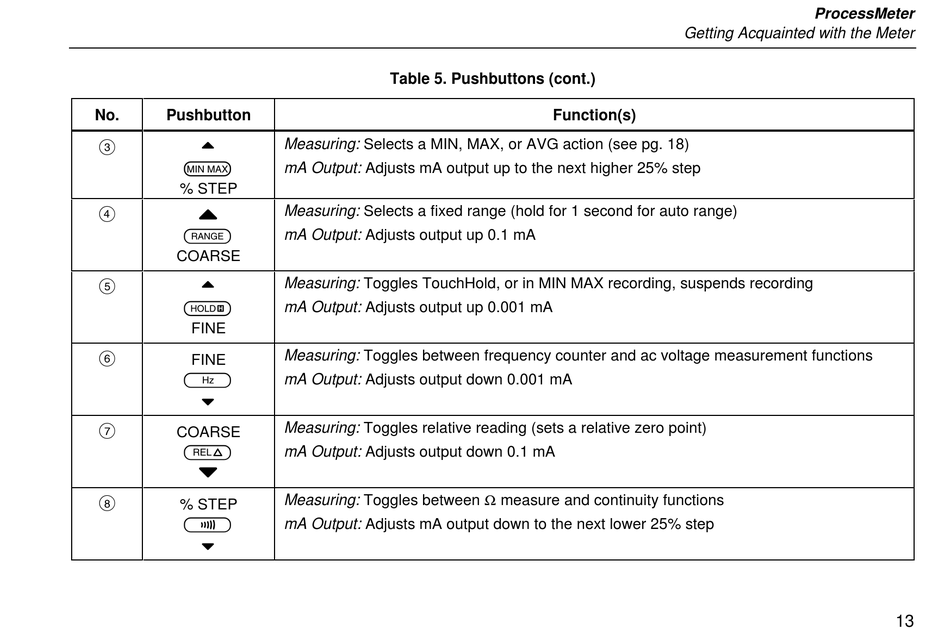

Table 5. Pushbuttons (cont.)
Measuring: Selects a MIN, MAX, or AVG action (see pg. 18)
mA Output: Adjusts mA output up to the next higher 25% step
Measuring: Selects a fixed range (hold for 1 second for auto range)
mA Output: Adjusts output up 0.1 mA
Measuring: Toggles TouchHold, or in MIN MAX recording, suspends recording
mA Output: Adjusts output up 0.001 mA
Measuring: Toggles between frequency counter and ac voltage measurement functions
mA Output: Adjusts output down 0.001 mA
Measuring: Toggles relative reading (sets a relative zero point)
mA Output: Adjusts output down 0.1 mA
Measuring: Toggles between
mA Output: Adjusts mA output down to the next lower 25% step
Function(s)
measure and continuity functions
ProcessMeter
Getting Acquainted with the Meter
13
