Fluke ProcessMeter 787 User Manual page 15

No. Position Default Function
Test leads in
OUTPUT
SOURCE:
mA
Source 0% mA
Test leads in
SIMULATE:
Sink 0% mA
Test leads in
OUTPUT
SOURCE:
mA
Source repeating
0% -100%-0%
slow ramp (
Test leads in
SIMULATE:
Sink repeating
0% -100%-0%
slow ramp (

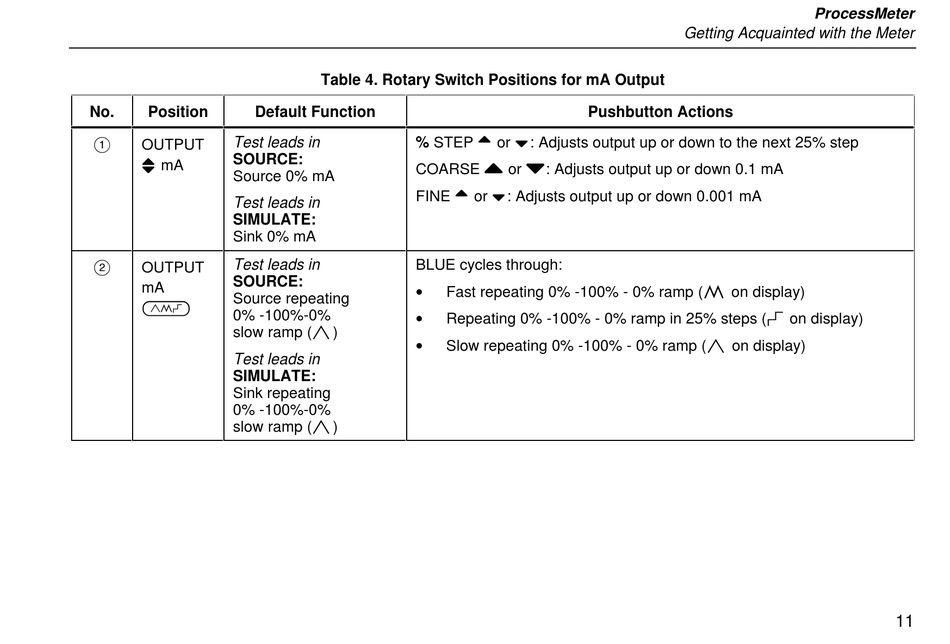

Table 4. Rotary Switch Positions for mA Output
% STEP or
COARSE
FINE or
BLUE cycles through:
Fast repeating 0% -100% - 0% ramp (
Repeating 0% -100% - 0% ramp in 25% steps (
)
Slow repeating 0% -100% - 0% ramp (
)
Getting Acquainted with the Meter
Pushbutton Actions
: Adjusts output up or down to the next 25% step
or : Adjusts output up or down 0.1 mA
: Adjusts output up or down 0.001 mA
ProcessMeter
on display)
on display)
on display)
11
