Fluke ProcessMeter 787 User Manual page 13

No. Position
Meter off
OFF
Default:
V
measure ac V
Frequency counter
Measure dc V
V
Measure dc mV
mV
Default: measure
BLUE
High test lead in
mA A
BLUE selects ac
High test lead in
dc

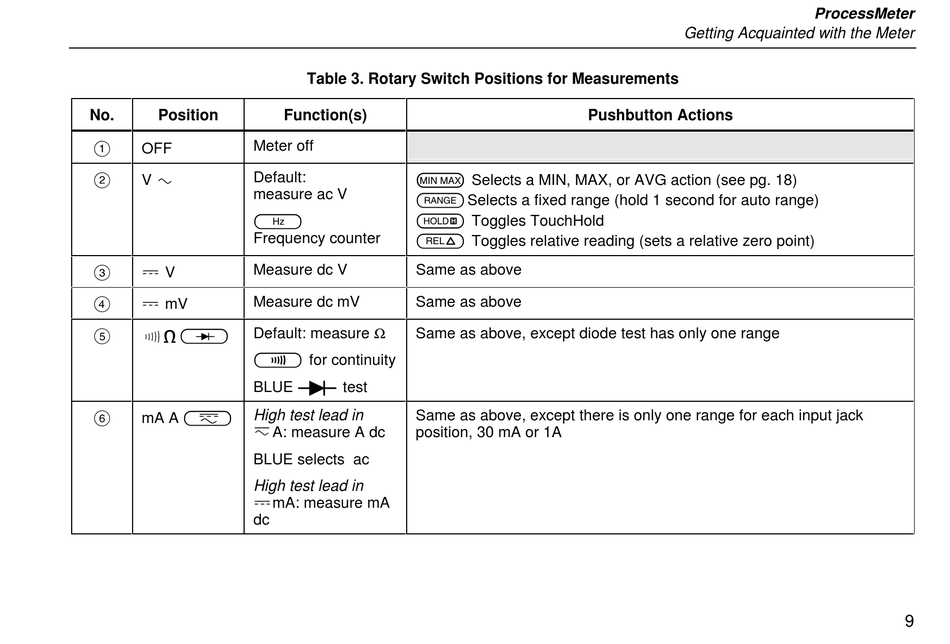

Table 3. Rotary Switch Positions for Measurements
Function(s)
Same as above
Same as above
Same as above, except diode test has only one range
for continuity
test
Same as above, except there is only one range for each input jack
A: measure A dc position, 30 mA or 1A
mA: measure mA
Pushbutton Actions
Selects a MIN, MAX, or AVG action (see pg. 18)
Selects a fixed range (hold 1 second for auto range)
Toggles TouchHold
Toggles relative reading (sets a relative zero point)
ProcessMeter
Getting Acquainted with the Meter
9
