Ref.
Part No.
No.
2 SPX2300Z4
3 SPX2300M
4 SPX2300AA
5 SPX4000FG
6 SPX2700ZPAK
7 SPX2300Z3PAK3
8 SX220Z2
9 SPX2300B
10 SPX2300CVS
11 GMX600F
12 SPX2700SA
13 SPX2300E
14 SPX3200Z5PAK4
15 SPX2300G
16 SPX1600Z52
17 SPX2700UNKIT
OPTIONAL
18 SPX2300GR
POWER END
SPX2300Z1VSPE

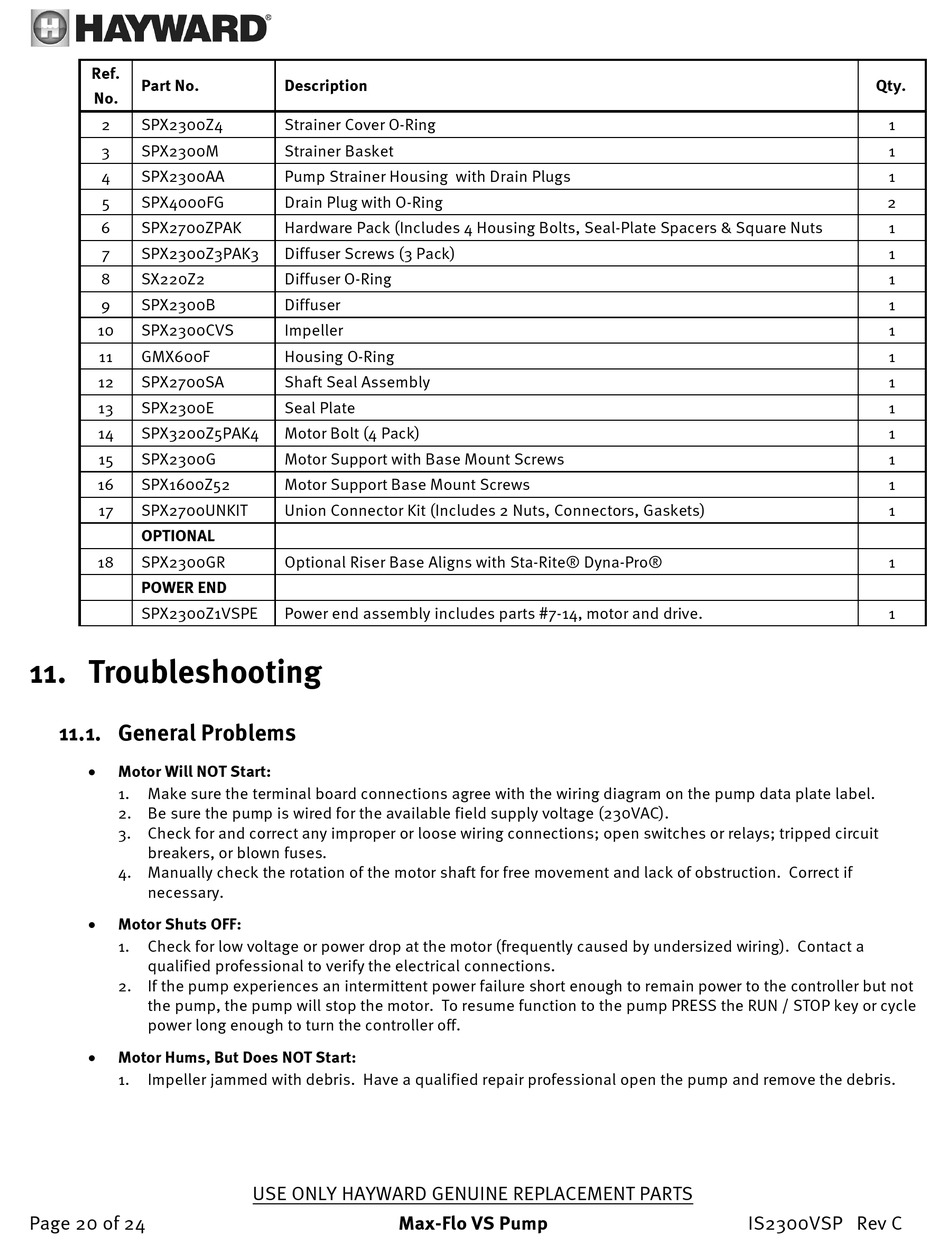

11. Troubleshooting

11.1. General Problems

Motor Will NOT Start:

1. Make sure the terminal board connections agree with the wiring diagram on the pump data plate label.
2. Be sure the pump is wired for the available field supply voltage (230VAC).
3. Check for and correct any improper or loose wiring connections; open switches or relays; tripped circuit
breakers, or blown fuses.
4. Manually check the rotation of the motor shaft for free movement and lack of obstruction. Correct if
necessary.
Motor Shuts OFF:

1. Check for low voltage or power drop at the motor (frequently caused by undersized wiring). Contact a
qualified professional to verify the electrical connections.
2. If the pump experiences an intermittent power failure short enough to remain power to the controller but not
the pump, the pump will stop the motor. To resume function to the pump PRESS the RUN / STOP key or cycle
power long enough to turn the controller off.
Motor Hums, But Does NOT Start:

1. Impeller jammed with debris. Have a qualified repair professional open the pump and remove the debris.
Page 20 of 24
Description
Strainer Cover O-Ring
Strainer Basket
Pump Strainer Housing with Drain Plugs
Drain Plug with O-Ring
Hardware Pack (Includes 4 Housing Bolts, Seal-Plate Spacers & Square Nuts
Diffuser Screws (3 Pack)
Diffuser O-Ring
Diffuser
Impeller
Housing O-Ring
Shaft Seal Assembly
Seal Plate
Motor Bolt (4 Pack)
Motor Support with Base Mount Screws
Motor Support Base Mount Screws
Union Connector Kit (Includes 2 Nuts, Connectors, Gaskets)
Optional Riser Base Aligns with Sta-Rite® Dyna-Pro®
Power end assembly includes parts #7-14, motor and drive.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Max-Flo VS Pump
Qty.
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
IS2300VSP Rev C
