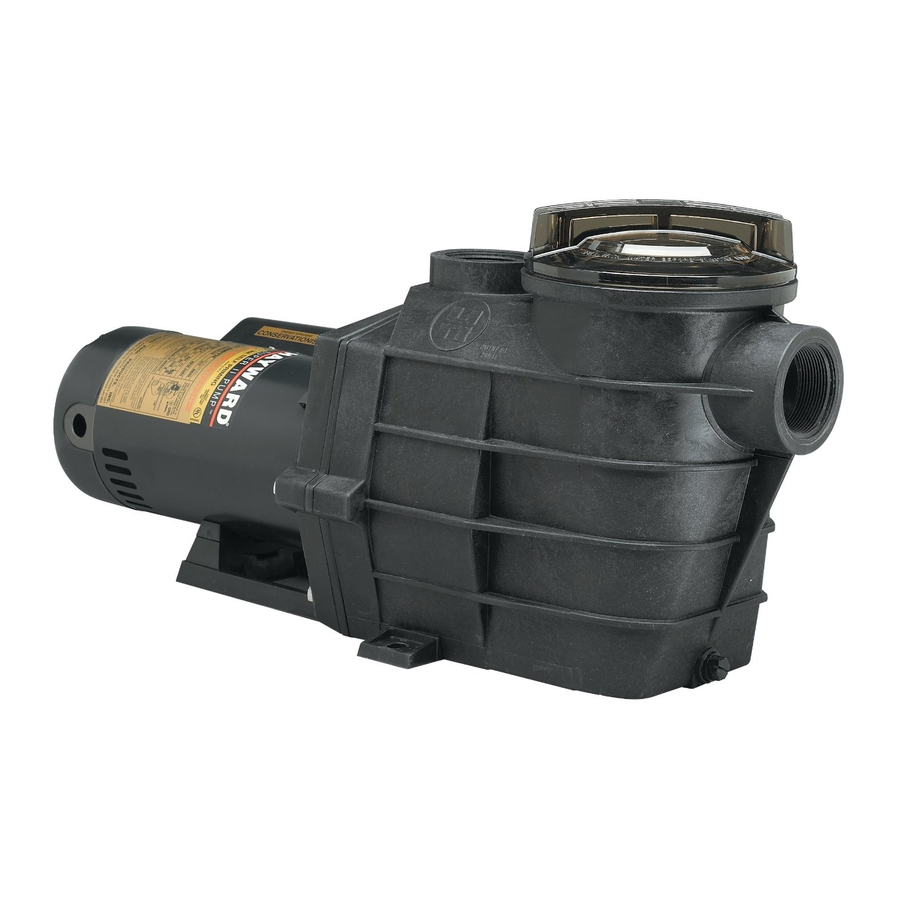

The Hayward TriStar Pump is specifically engineered for the demanding requirements of today's in-ground swimming pool/spa that is
equipped with large capacity filters, heaters, and pool cleaning equipment. The TriStar is a self-priming pump that includes an
improved seal and impeller design that will provide many years of efficient, dependable, corrosion-free service. The advanced design
provides superior performance while reducing maintenance requirements. NOTE - To prevent potential injury and to avoid
unnecessary service calls, read this manual carefully and completely.
IMPORTANT – READ CAREFULLY
NOTE - The TriStar is a high performance, high
efficiency pump. When replacing most existing
pumps, you can use a TriStar pump with a lower
horsepower rating than the existing pump.
Required:
2" plumbing minimum
Recommended: 2 ½" plumbing or larger
WWW.HAYWARDPOOL.COM
OWNER'S MANUAL
INSTALLATION, OPERATION, & PARTS
TriStar
SAVE THIS INSTRUCTION MANUAL
HAYWARD POOL PRODUCTS, INC.
620 DIVISION STREET ELIZABETH, NJ 07207 (908) 351-5400
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
™
Pump Series
TriStar Pump Replacement Guide
TriStar
Model No.
Model No.
Full Rated
Max Rated
---
SP3207X10
SP3207EE
SP3210X15
SP3210EE
SP3215X20
SP3215EE
SP3220X25
SP3220EE
SP3225X30
SP3230EE
WWW.HAYWARDPOOL.COM
*50HZ Models are not UL Listed.
TriStar
Super II
Model No.
Full Rated
SP3007EEAZ
SP3010EEAZ
SP3015EEAZ
SP3020EEAZ
SP3025EEAZ
---
---
P/N: IS3200
Rev. D
Super II
Model No.
Max Rated
SP3007X10AZ
SP3010X15AZ
SP3015X20AZ
SP3020X25AZ
SP3025X30AZ
---
Advertisement
Table of Contents
Related Manuals for Hayward TriStar SP3007EEAZ
Summary of Contents for Hayward TriStar SP3007EEAZ
- Page 1 The Hayward TriStar Pump is specifically engineered for the demanding requirements of today’s in-ground swimming pool/spa that is equipped with large capacity filters, heaters, and pool cleaning equipment. The TriStar is a self-priming pump that includes an improved seal and impeller design that will provide many years of efficient, dependable, corrosion-free service. The advanced design provides superior performance while reducing maintenance requirements.
-
Page 2: Important Safety Instructions
™ TriStar Pump Series ____________________ IMPORTANT SAFETY INSTRUCTIONS Before installing or servicing this electrical equipment, turn power supply OFF. Basic safety precautions should always be followed, including the following: Failure to follow instructions may result in injury. This is the safety-alert symbol. When you see this symbol on your pump or in this manual, look for one of the following signal words and be alert to the potential for personal injury. - Page 3 ™ TriStar Pump Series __________ WARNING Electric Shock. Hazardous voltage can shock, burn, and cause death or serious property damage. To reduce the risk of electric shock, do NOT use an extension cord to connect unit to electric supply. Provide a properly located electrical receptacle.
-
Page 4: Product Benefits
It is the first to feature a Tri-Lock cam and ramp strainer cover design that closes with less than a quarter turn, and the TriStar’s super-sized, smooth no-rib basket with extra leaf-holding capacity is easy to clean. TriStar has a variety of bases available to seamlessly retrofit to existing filtration systems. -
Page 5: Installation Instructions
™ TriStar Pump Series__________ Product Specifications Installation Instructions WARNING – This product should be installed and serviced only by a qualified professional. Pump Location Locate filter as close to pool as practical and run suction lines as direct as possible to reduce friction loss. - Page 6 ™ TriStar Pump Series __________ Pump Mounting (cont’d.) WARNING – swimming pool filtration system operate under pressure. Incorrectly installed and/or improperly tested filtration equipment and/or components may fail resulting in severe personal injury or death. Plumbing Use Teflon tape to seal threaded connections on molded plastic components. All plastic fittings must be new or thoroughly cleaned before use.
-
Page 7: Start-Up And Operation
™ TriStar Pump Series __________ Electrical (cont’d.) Voltage Voltage at motor MUST NOT be more than 10% above or below motor name plate rated voltage, or motor may overheat, causing overload tripping and reduced component life. If voltage is less than 90% or more than 110% of rated voltage when motor is running at full load, consult power company. -
Page 8: Starting/Priming The Pump
™ TriStar Pump Series ___________________ WARNING – valve (if available) on filter, when starting the circulating pump system. Failure to do so could result in severe personal injury. Starting/Priming the Pump: Fill strainer housing with water to suction pipe level. If water leakage occurs from anywhere on the pump or filter, DO NOT start the pump. -
Page 9: Storing Pump For Winterization
™ TriStar Pump Series ___________________ Storage/Winterization WARNING – the system with compressed air can cause components to explode, with risk of severe injury or death to anyone nearby. Use only a low pressure (below 5 PSI), high volume blower when air purging the pump, filter, or piping. - Page 10 ™ TriStar Pump Series ___________________ Removing the Impeller (See Parts Diagram on page 11 of this manual for pump component locations.) Remove the motor canopy by removing the two (2) screws and pulling the canopy away from the motor. To prevent motor shaft from turning, carefully place a 7/16" open-end wrench over the two (2) flats on the end of the shaft.
-
Page 11: Replacement Parts
™ TriStar Pump Series ___________________ Replacement Parts Parts Diagram Parts Listing Ref. No. Part No. SPX3200UNKIT SPX3200UG SPX3200A SPX3200DLS SPX3200DLSB SPX3200S SPX3200M SPX3200Z8 SPX4000Z1 SPX3200B3 SPX3200Z1 SPX3021R WWW.HAYWARDPOOL.COM _____________________________Page 11 of 15 Detail of motor canopy with screws. Description Union Connector Kit (Includes Union Nut, Union Connector, Union Gasket - 2 ea.) Union Gasket Pump Strainer Housing, 2”... - Page 12 Shaft Seal Assembly Housing O-Ring Seal Plate Housing Insert/Seal Plate Spacer Kit Housing Bolt Motor Bolt Drain Plug with O-Ring Bracket, Motor Support, TriStar Base, Short Riser, TriStar Base, Tall Riser, TriStar Motor P/N Power End P/N SPX3205Z1BER SPX3205Z1PE SPX3207Z1BER...
-
Page 13: Troubleshooting
™ TriStar Pump Series Troubleshooting Motor Will NOT Start – Check For: Make sure the terminal board connections agree with the wiring diagram on motor data plate label. Be sure motor is wired for available field supply voltage (see pump operating label). -
Page 14: Product Registration
™ TriStar Pump Series ___________________ Low Flow – Generally, Check For: (cont’d.) Undersized pool piping. Solution: Correct piping size. Plugged or restricted discharge line of filter, valve partially closed (high gauge reading). Solution: Sand filters – backwash as per manufacturer’s instructions; D.E. filters – backwash as per manufacturer’s instructions;... -
Page 15: Warranty Registration Card
™ TriStar Pump Series HAYWARD This pump was inspected before shipment from our plant. To original purchasers of this pump, Hayward Pool Products, Inc., 620 Division Street, Elizabeth, New Jersey, warrants its products free from defects in materials and workmanship for a period of ONE (1) year from the date of purchase.
