Alarm Lock SCHLAGE CYLINDER ASSEMBLY Addendum Manual

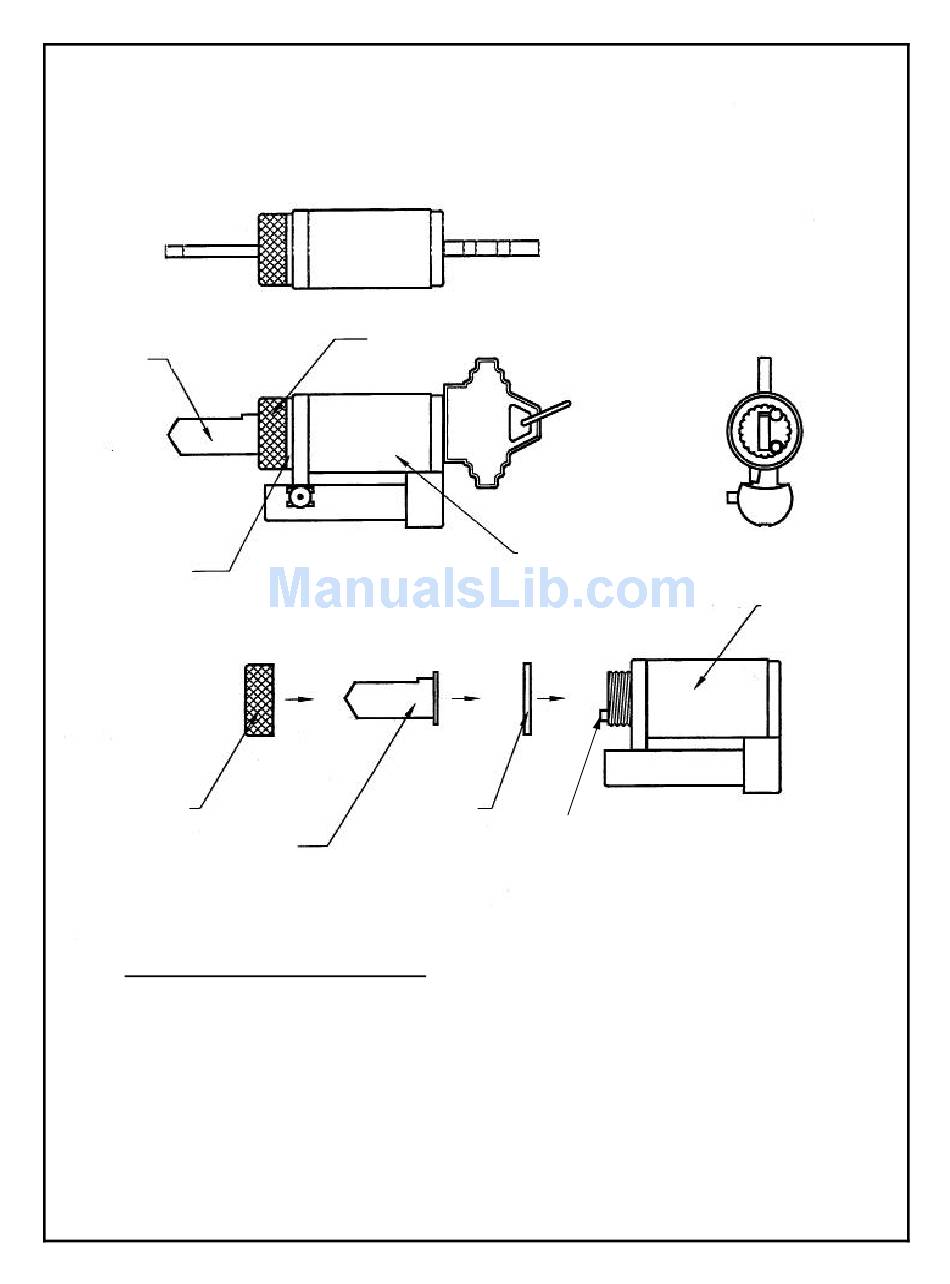

SCHLAGE CYLINDER ASSEMBLY ADDENDUM
FOR REGAL CURVED LEVER (75) TRILOGY MODELS ONLY
TAIL PIECE
P/N HW580
SPACER
P/N HW830
KNURLED NUT
(Not supplied with lock)
TAIL PIECE
P/N HW580
(Supplied with lock)

ASSEMBLY PROCEDURE:

1. REMOVE ORIGINAL TAIL PIECE: DEPRESS THE SPRING LOADED LOCKING PIN AND
UNSCREW THE KNURLED NUT.
2. PLACE SPACER (PROVIDED) ON CYLINDER, AS SHOWN.
3. PLACE TAIL PIECE IN VERTICAL POSITION (AS SHOWN).
4. ASSEMBLE THE KNURLED NUT: DEPRESS THE SPRING LOADED LOCKING PIN, THEN
SCREW BACK ON THE KNURLED NUT.
5. CHECK FOR PROPER CLEREANCE FOR ROTATION OF THE CYLINDER AND MAKE
SURE THAT THE SPRING LOADED PIN IS LOCKED WITH THE NUT.
KNURLED NUT
CYLINDER
SPACER
SPRING LOADED LOCKING PIN
P/N HW830
(Supplied with lock)
CYLINDER
(Not supplied with lock)
WI1037A 03/01
