ATEN ALTUSEN KH1508I User Manual

ATEN ALTUSEN KH1508I User Manual

Cat 5 high-density kvm over the net
Hide thumbs Also See for ALTUSEN KH1508I:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

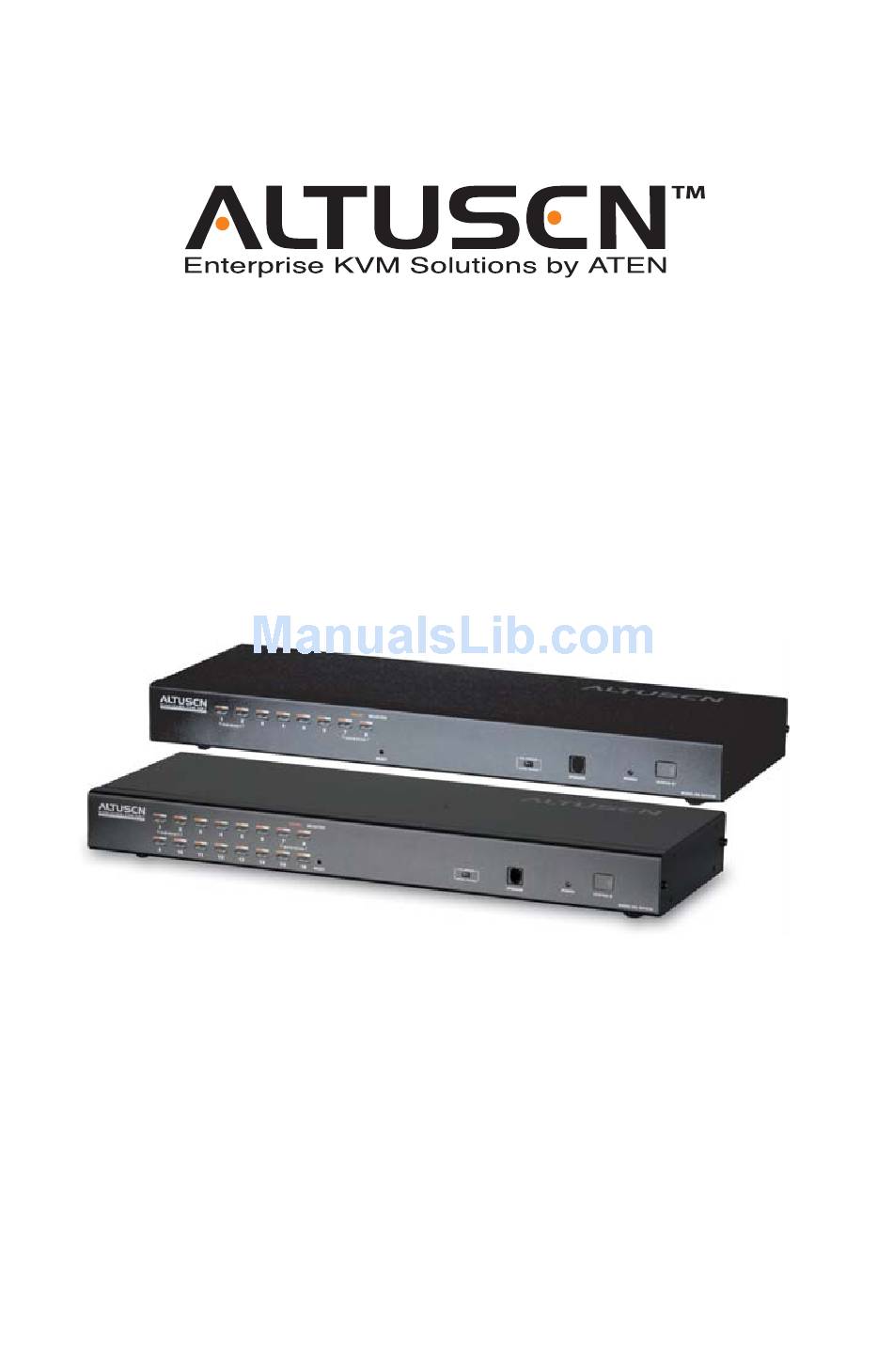

Cat 5 High-Density KVM Over the NET™
KH1508i / KH1516i
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALTUSEN KH1508I and is the answer not in the manual?

Questions and answers

Related Manuals for ATEN ALTUSEN KH1508I

Summary of Contents for ATEN ALTUSEN KH1508I

  • Page 1 Cat 5 High-Density KVM Over the NET™ KH1508i / KH1516i User Manual www.aten.com...

  • Page 2: Fcc Information

    KH1508i / KH1516i User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: User Information

    KH1508i / KH1516i User Manual User Information Online Registration Be sure to register your product at our online support center: International – http://support.aten.com North America – http://www.aten-usa.com/product_registration Telephone Support International – 886-2-8692-6959 North America – 1-888-999-ATEN User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer.

  • Page 4: Package Contents

    Copyright © 2006 ATEN® International Co., Ltd. Manual Part No. PAPE-0276-1AXG Printing Date: 12/2007 Altusen and the Altusen logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 5: Table Of Contents

    KH1508i / KH1516i User Manual Contents FCC Information ..........ii SJ/T 11364-2006.
  • Page 6 KH1508i / KH1516i User Manual Chapter 3. Basic Operation Port Selection ..........17 Manual .
  • Page 7 KH1508i / KH1516i User Manual Firmware Upgrade Recovery ....... 45 Adapter Cable Upgrade.
  • Page 8 KH1508i / KH1516i User Manual Chapter 7. Windows Client Port Operation Windows Client Control Panel ....... . . 84 Hotkey Setup.
  • Page 9 KH1508i / KH1516i User Manual Help ..........113 Exit .
  • Page 10 KH1508i / KH1516i User Manual Appendix Safety Instructions ......... 139 General .

  • Page 11: About This Manual

    KH1508i / KH1516i User Manual About This Manual This User Manual is provided to help you get the most from your KH1508i / KH1516i system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 12: Conventions

    For information about all ALTUSEN products and how they can help you connect without limits, visit ALTUSEN on the Web or contact an ALTUSEN Authorized Reseller. Visit ALTUSEN on the Web for a list of locations and telephone numbers International – http://www.aten.com North America – http://www.aten-usa.com...

  • Page 13: Chapter 1. Introduction

    256 computers can all be controlled from the original KVM console. Note: Aten ACS1208 / ACS1216 switches can also be installed on a KH1508i / KH1516i daisy chain. Since the KH1508i / KH1516i uses TCP/IP for its communications protocol, it can be accessed from any computer on the Net - whether that computer is located down the hall, down the street, or half-way around the world.
  • Page 14 KH1508i / KH1516i User Manual For local access, the KH1508i / KH1516i supports resolutions of up to 1600 x 1200, as well as 1280 x 1024 @ 75Hz for an extended distance of up to 40 m. For remote access, the switches support up to 1280 x 1024 @ 75Hz. The switches feature RJ-45 connectors and CAT 5 cable to link to the computers.

  • Page 15: Features

    Chapter 1. Introduction Features A single console controls up to 8 (KH1508i) or 16 (KH1516i) computers Dedicated chain ports - daisy chain up to 15 additional units - control up to 256 computers from a single console Extends the distance between computers and switch - up to 30m for resolutions of 1600 x 1200 @ 60Hz;...

  • Page 16: Requirements

    KH1508i / KH1516i User Manual Requirements General For best results, we recommend that the computers used to access the KH1508i / KH1516i have at least a P III 1 GHz processor, and that their screen resolution is set to 1024 x 768 For best results, we recommend an Internet connection speed of at least 128 kbps Browsers must support 128 bit data encryption...

  • Page 17: Kvm Adapter Cables

    Chapter 1. Introduction KVM Adapter Cables Cat 5 (or higher) cable is required to connect the KH1508i / KH1516i to a KVM Adapter Cable (see Single Station Installation, page 12). The following KVM Adapter Cables are required for use with the KH1508i / KH1516i: Function Module...

  • Page 18: Components

    KH1508i / KH1516i User Manual Components Front View KH1508i 1&2 KH1516i 1&2...
  • Page 19 Chapter 1. Introduction Compo- Description nent Port Press a switch to give the KVM focus to the computer attached Selection to its corresponding port. Switches Simultaneously pressing Buttons 1 and 2 for 3 seconds performs a Keyboard and Mouse Reset. Simultaneously pressing Buttons 7 and 8 starts Auto Scan Mode.

  • Page 20: Rear View

    KH1508i / KH1516i User Manual Rear View KH1508i KH1516i Component Description Power Socket The AC power cord plugs in here. Power Switch This rocker switch powers the unit on and off. LAN Port The cable that connects the KH1508i / KH1516i to the Internet plugs in here.

  • Page 21: Chapter 2. Hardware Setup

    Chapter 2 Hardware Setup Overview For convenience and flexibility that allows mixing the PS/2, USB, and serial device interfaces, as well as multiple platforms, the KH1508i / KH1516i's design utilizes KVM Adapter Cables (CPU Modules), that serve as intermediaries between the switch and the connected devices (refer to the installation diagram on page 13).

  • Page 22: Stacking And Rack Mounting

    KH1508i / KH1516i User Manual Stacking and Rack Mounting The KH1508i / KH1516i can be stacked on the desktop or rack mounted at the front or rear of the rack. The following sections take you through the procedures for each method. Stacking The KH1508i / KH1516i can be placed on any appropriate level surface that can safely support its weight plus the weight of its attached cables.

  • Page 23: Rack Mounting

    Chapter 2. Hardware Setup Rack Mounting The KH1508i / KH1516i can be mounted in a 19" (1U) racks. The mounting brackets can screw into either the front or the back of the unit so that it can attach to the front or the back of the rack. To rack mount the unit: 1.

  • Page 24: Single Station Installation

    KH1508i / KH1516i User Manual Single Station Installation In a Single Stage installation, there are no additional KVM switches daisy chained down from the KH1508i / KH1516i. To set up a single stage installation, refer to the installation diagrams starting on page 13 (the numbers in the diagram correspond with the numbers of the instruction steps), and do the following: 1.

  • Page 25: Single Stage Installation Diagram

    Chapter 2. Hardware Setup Single Stage Installation Diagram...

  • Page 26: Kvm Adapter Cable Installation Diagrams

    KH1508i / KH1516i User Manual KVM Adapter Cable Installation Diagrams KA9520 KA9131 KA9570 KA9140 SERIAL TERMINAL KA9130...

  • Page 27: Daisy Chaining

    KH1508i or KH1516i. As many as 256 computers can be controlled from a single console in a complete installation. Note: Aten ACS1208 / ACS1216 switches can also be installed on a KH1508i / KH1516i daisy chain. To set up a daisy chained installation, do the following: 1.

  • Page 28: Daisy Chain Installation Diagram

    KH1508i / KH1516i User Manual 6. Power up the installation according to the following procedure: a) Power up the First Station. Wait for the unit to ascertain its Station ID and display it on the Station ID LED. (The Station ID for the First Stage unit is 01, the ID for the Second Stage unit is 02, the ID for the Third Stage unit is 03, etc.) b) Power on each station in turn (Second Station, then Third Station, etc.).

  • Page 29: Port Selection

    Chapter 3 Basic Operation Port Selection KH1508i / KH1516i installations provide three methods to obtain instant access to any computer in your installation: Manual, OSD, and Hotkey. Manual For manual port selection, simply press the Port Switch that corresponds to the device you wish to access.

  • Page 30: Hot Plugging

    KH1508i / KH1516i User Manual Hot Plugging The KH1508i / KH1516i supports hot plugging – components can be removed and added back into the installation by unplugging and replugging their cables from their ports without the need to shut the unit down. In order for hot plugging to work properly, however, the procedures described below must be followed.

  • Page 31: Powering Off And Restarting

    Chapter 3. Basic Operation Powering Off and Restarting If it becomes necessary to power off the KH1508i / KH1516i, or if the switch loses power and needs to be restarted, before starting it back up you must follow these procedures: 1.
  • Page 32 KH1508i / KH1516i User Manual This Page Intentionally Left Blank...

  • Page 33: Local Console Operation

    Chapter 4 Local Console Operation Overview When setting up your KH1508i / KH1516i installation for the first time, we recommend doing it from the local console. Local console operation offers a menu driven On Screen Display (OSD) to handle computer control and switching operations.

  • Page 34: The Osd Main Screen

    KH1508i / KH1516i User Manual The OSD Main Screen After you successfully log in, a screen similar to the one below appears: Note: 1. The screen depicts the Administrator's Main Screen. The User Main Screen does not show the F4 or F6 function since it is reserved for the Administrator and can't be accessed by ordinary Users.

  • Page 35: Osd Navigation

    Chapter 4. Local Console Operation OSD Navigation To dismiss the menu, and deactivate the OSD, Click the X at the upper right corner of the OSD Window; or press [Esc]. To Logout, Click F8 or the symbol at the top of the Main Screen, or press [F8].

  • Page 36: Osd Functions

    KH1508i / KH1516i User Manual OSD Functions OSD functions are used to configure and control the OSD. For example, rapidly switching to any port; scanning only selected ports; limiting the list of ports you wish to view; designating a port as a Quick View Port; managing port names;...

  • Page 37: F2 List

    Chapter 4. Local Console Operation F2 LIST This function lets you broaden or narrow the scope of which ports the OSD displays (lists) on the Main OSD Screen. Many of the OSD functions only operate on the computers that are listed on the Main OSD Screen. The submenu choices and their meanings are given in the table below: Choice Meaning...

  • Page 38: F3 Set

    KH1508i / KH1516i User Manual F3 SET This function allows the Administrator and each User to set up their own working environment. A separate profile for each is stored by the OSD and is activated according to the Username that is provided during Login. To change a setting: 1.
  • Page 39 Chapter 4. Local Console Operation (Continued from previous page.) Setting Function SCAN Determines how long the focus dwells on each port as it cycles DURATION through the selected ports in Auto Scan Mode (see F7 SCAN, page 32). Key in a value from 0–255 seconds, then press [Enter]. Default is 10 seconds;...
  • Page 40 KH1508i / KH1516i User Manual (Continued from previous page.) Setting Function ACTIVATE Choices are Y (for Yes), or N (for No). When activated, the beeper BEEPER sounds whenever a Port is changed, when activating the Auto Scan function (see F7 SCAN, page 32), or an invalid entry is made on an OSD menu.

  • Page 41: F4 Adm

    Chapter 4. Local Console Operation F4 ADM F4 is an Administrator only function. It allows the Administrator to configure and control the overall operation of the OSD. To change a setting use the Up and Down Arrow Keys to move the highlight bar to it then press [Enter]. After you select an item, a submenu with further choices appears.
  • Page 42 KH1508i / KH1516i User Manual (Continued from previous page.) Setting Function Specifies the operating platform of the computer attached to each port. OPERATING For each port, press the [Spacebar] to cycle through the choices (PC, SYSTEM Mac, Sun, and Other). Repeat until all the ports have been set, then press [Esc].

  • Page 43: F5 Skp

    Chapter 4. Local Console Operation F5 SKP This function enables you to easily skip backward or forward, switching the console focus from the currently active KVM Port to the previous or next available one. The selection of computers to be available for Skip Mode switching is made with the Scan/Skip Mode setting under the F3 SET function (see page 26).

  • Page 44: F6 Ip

    KH1508i / KH1516i User Manual F6 IP This function allows you to select whether to assign the KH1508i / KH1516i’s IP address dynamically (DHCP), or to give it a fixed IP address. Press [Enter] to toggle between the choices. If you toggle DHCP Enable to Off, specify the IP, Mask, and Gateway in the appropriate fields.

  • Page 45: F8 Lout

    Chapter 4. Local Console Operation F8 LOUT Pressing [F8] logs you out of OSD control of the computers, and blanks the Console screen. This is different from simply pressing [Esc] when you are at the Main Screen to deactivate the OSD. With this function you must log in all over again to regain access to the OSD, whereas with [Esc], all you have to do to reenter the OSD is tap the OSD Hotkey.

  • Page 46: Keyboard Port Operation

    KH1508i / KH1516i User Manual Keyboard Port Operation Overview In addition to the OSD, the KH1508i / KH1516i also supports port control directly from the keyboard with the use of hotkey combinations. Hotkey port control allows you to provide KVM focus to a particular computer directly from the keyboard.

  • Page 47: When Hotkey Mode Is Active

    Chapter 4. Local Console Operation (Continued from previous page.) When Hotkey Mode is active: The Caps Lock, and Scroll Lock LEDs flash in succession to indicate Hotkey Mode is active. They stop flashing and revert to normal status when you exit Hotkey Mode. A Command Line appears on the monitor screen.

  • Page 48: Auto Scanning

    KH1508i / KH1516i User Manual Auto Scanning Auto Scan automatically switches among all the active Computer Ports that are accessible to the currently logged on User at regular intervals, so that he can monitor their activity automatically. (See SCAN/SKIP MODE of the OSD F3 SET function, page 26 for information regarding accessible ports).

  • Page 49: Invoking Auto Scan

    Chapter 4. Local Console Operation Invoking Auto Scan To start Auto Scanning, key in the following Hotkey combination: 1. Invoke Hotkey Mode (see page 34). 2. Press [A]. After you press A, you automatically exit Hotkey Mode, and enter Auto Scan Mode, and Auto Scanning begins.

  • Page 50: Skip Mode

    KH1508i / KH1516i User Manual Skip Mode This feature allows you to switch between computers in order to monitor them manually. You can dwell on a particular port for as long or as little as you like - as opposed to Auto Scanning, which automatically switches after a fixed interval.

  • Page 51: Hotkey Beeper Control

    Chapter 4. Local Console Operation Hotkey Beeper Control The Beeper (see ACTIVATE BEEPER, page 28) can be Hotkey toggled On and Off. When the beeper is set to On, the KH1508i / KH1516i beeps when it switches ports. To toggle the Beeper, key in the following Hotkey combination: 1.

  • Page 52: Firmware Upgrade

    KH1508i / KH1516i User Manual Firmware Upgrade KH1508i / KH1516i Upgrade New firmware upgrade packages are posted on our website as they become available. Check the website regularly to find the latest packages and information relating to them. This chapter explains how to upgrade the KH1508i / KH1516i’s firmware locally –...

  • Page 53: Starting The Upgrade

    Chapter 4. Local Console Operation 5. From your KVM switch console, bring up the OSD (see page 21) and select the F4ADM function. 6. Scroll down to FIRMWARE UPGRADE. Press [Enter], then press [Y] to invoke Firmware Upgrade Mode (see page 30) For your reference, the current firmware upgrade version displays on the screen.
  • Page 54 KH1508i / KH1516i User Manual (Continued from previous page.) 3. Click Next to continue. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Device List panel. (Continues on next page.)
  • Page 55 Chapter 4. Local Console Operation (Continued from previous page.) 4. After you have made your selection(s), Click Next to perform the upgrade. If you enabled Check Firmware Version, the Utility compares the device's firmware level with that of the upgrade files. If it finds that the device's version is higher than the upgrade version, it brings up a dialog box informing you of the situation and gives you the option to Continue or Cancel:...

  • Page 56: Upgrade Succeeded

    KH1508i / KH1516i User Manual Upgrade Succeeded: After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. Upgrade Failed: If the upgrade failed to complete successfully a dialog box appears asking if you want to retry.

  • Page 57: Firmware Upgrade Recovery

    Chapter 4. Local Console Operation Firmware Upgrade Recovery There are basically four conditions that call for firmware upgrade recovery: 1. When a firmware upgrade procedure is interrupted due to a power failure or loss of network connection. 2. When the unit’s firmware becomes corrupted for some reason and you are unable to operate it.

  • Page 58: Adapter Cable Upgrade

    KH1508i / KH1516i User Manual Adapter Cable Upgrade The firmware for the KA9520, KA9570, and KA9130 KVM Adapter Cables can also be upgraded. Check the web site regularly to find the latest packages and information relating to them: Before You Begin To prepare for the firmware upgrade, do the following: 1.

  • Page 59: Starting The Upgrade

    Chapter 4. Local Console Operation Starting the Upgrade: To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file - either by double clicking the file icon, or by opening a command line and keying in the full path to it. The Firmware Upgrade Utility Welcome screen appears (see page 41).

  • Page 60: Upgrade Succeeded

    KH1508i / KH1516i User Manual Upgrade Succeeded: After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. Note: At the completion of the upgrade the KH1508i / KH1516i restarts.

  • Page 61: Adapter Cable Firmware Upgrade Recovery

    Chapter 4. Local Console Operation Adapter Cable Firmware Upgrade Recovery There are basically four conditions that call for firmware upgrade recovery: When the unit’s firmware becomes corrupted for some reason and you are unable to operate it. When you invoke Adapter Upgrade Mode (see ADAPTER UPGRADE, page 30), but decide not to proceed with the upgrade.
  • Page 62 KH1508i / KH1516i User Manual This Page Intentionally Left Blank...

  • Page 63: Chapter 5. Browser Login

    Chapter 5 Browser Login Overview An On Screen Display (OSD) interface governs remote KH1508i / KH1516i administration as well as user configuration and port switching operations. The OSD can be accessed either with a Windows-based client or a Java-based client. In order to perform remote operations, you must first log in via an Internet browser to connect to the KH1508i / KH1516i.
  • Page 64 KH1508i / KH1516i User Manual (Continued from previous page.) 4. Provide a valid Username and Password (set up by the KH1508i / KH1516i administrator – see User Management, page 65), then Click Login to continue. Note: 1. If you supply an invalid login, the authentication routine will return a message stating, Invalid Username or Password.

  • Page 65: Web Page Layout

    Chapter 5. Browser Login Web Page Layout The General Dialog Box An explanation of the dialog box fields is given in the table below: Field Purpose Device Name To make it easier to manage installations that have more than one KH1508i / KH1516i, each one can be given a name. The name that was assigned by the administrator to this unit displays here.

  • Page 66: Web Page Icons

    KH1508i / KH1516i User Manual Web Page Icons The purpose of the other icons at the top of the web page are explained in the table below: Icon Function Sync: Click this icon to synchronize the KH1508i / KH1516i's time with your computer's time. If both are in the same time zone, the device's time is changed to match the computer's time.

  • Page 67: Web

    Chapter 5. Browser Login Web Page Buttons The purpose of the buttons at the left of the web page are explained in the table below: Icon Purpose Click this button to download the Windows Client software to remotely control the KH1508i / KH1516i and the devices connected to it.

  • Page 68: Upgrading The Firmware (Browser Method)

    KH1508i / KH1516i User Manual Upgrading the Firmware (Browser Method) As new versions of the KH1508i / KH1516i firmware become available, they can be downloaded from our website. Check the web site regularly to find the latest information and packages. Note: Each time you do a browser firmware upgrade, you must also do a local firmware upgrade (see Firmware Upgrade, page 40).

  • Page 69: Activating The Osd

    Chapter 5. Browser Login Activating the OSD Windows Client After you have successfully logged in (see Logging In, page 51), to activate the browser-based Windows Client OSD do the following: 1. Click the Windows Client button (the one without the arrow) at the left of the web page.
  • Page 70 KH1508i / KH1516i User Manual (Continued from previous page.) 4. When a connection to the KH1508i / KH1516i has been established a screen similar to the one below appears: If Full Screen Mode is enabled (the box is checked), after you connect the remote display displays full screen on your local monitor.
  • Page 71 Chapter 5. Browser Login The OSD consists of three pages – Main, Configuration, and Administration. The Administration and Configuration pages are discussed in Chapter 6. The Main page is discussed in the Windows Client Port Operation chapter, on page 93. Note: 1.

  • Page 72: Java Client

    KH1508i / KH1516i User Manual Java Client After you have successfully logged in (see page 51), to activate the Java Client OSD do the following: 1. Click the Java Client button (the one without the arrow) at the left of the web page.

  • Page 73: Chapter 6

    Chapter 5. Browser Login Once the authentication procedure completes successfully, the OSD Main Screen comes up in the center of your monitor. This is the same OSD that appears when the Windows Client is invoked. As with the Windows Client, the OSD consists of three pages – Main, Configuration, and Administration.
  • Page 74 KH1508i / KH1516i User Manual This Page Intentionally Left Blank...

  • Page 75: Administration And Configuration

    Chapter 6 Administration and Configuration Overview The remote OSD's Administration page lets the Administrator (and users with administration permission - see User Management, page 65) configure and control overall KH1508i / KH1516i operations. The tab that activates the page is disabled (grayed out) for users who do not have administration permission. The OSD Configuration page allows users to set up their own, individual, working environments.

  • Page 76: General

    KH1508i / KH1516i User Manual (Continued from previous page.) General The General Page presents four items of information. This is the same information that displays after you log in from a browser, or when you click the General icon at the top left of the browser main page. The meaning of these items is described in the table, below: Item Meaning...

  • Page 77: User Management

    Chapter 6. Administration and Configuration User Management The User Management dialogs are used to create and manage user profiles. Up to 64 user profiles can be established. Up to 32 users can log in concurrently. To delete a user profile, select it in the list box, and click Remove. To modify a user profile, select it and click Edit.
  • Page 78 KH1508i / KH1516i User Manual Fill in the required information for a new profile, or modify the existing information to edit a previous profile. A description of the field headings is given in the table below: Heading Description Username A minimum of 6 and a maximum of 16 characters is allowed. Password A minimum of 8 and a maximum of 16 characters is allowed.

  • Page 79: Port Access

    Chapter 6. Administration and Configuration (Continued from previous page.) Port Access Clicking the Port Access button brings up a dialog box that allows the Administrator or a User with Administration permission to define the selected User's access to the computers on a Port-by-Port basis: Click + to expand a Station and show a list of its ports...
  • Page 80 KH1508i / KH1516i User Manual The access rights choices are explained in he table, below: Choice Description Full The user can view the remote screen and can perform operations on the remote system from his keyboard and monitor. View Only The user can only view the remote screen;...

  • Page 81: Service Configuration

    Chapter 6. Administration and Configuration Service Configuration The Service Configuration dialog is composed of two main panels: Access Port and Log Server: Access Port As a security measure, if a firewall is being used, the Administrator can specify the port numbers that the firewall will allow, and set the firewall accordingly. Users must specify the port number when they log in to the KH1508i / KH1516i.

  • Page 82: Log Server

    KH1508i / KH1516i User Manual Log Server Important transactions that occur on the KH1508i / KH1516i, such as logins and internal status messages, are kept in an automatically generated log file. Specify the MAC address and a port number for the computer that the Log Server resides on in this panel.

  • Page 83: Network

    Chapter 6. Administration and Configuration Network The Network dialog is used to specify the KH1508i / KH1516i's network environment. Network Transfer Rate Set the rate at which the KH1508i / KH1516i transfers data to remote computers. The range is from 8 to 99999 Kilobytes per second (KBps). IP Address The KH1508i / KH1516i can either have its IP address assigned dynamically (DHCP), or it can be given a fixed IP address.

  • Page 84: Radius

    KH1508i / KH1516i User Manual Radius The RADIUS dialog box allows you to set up login authorization for the KH1508i / KH1516i through a RADIUS server: To enable RADIUS authorization, do the following: 1. Check Enable Radius. 2. Fill in the IP addresses and Service Ports for the Primary and Alternate RADIUS servers.

  • Page 85: Radius Server Access Rights Table

    Chapter 6. Administration and Configuration RADIUS Server Access Rights Table: Character Meaning Grants the user administrator privileges – allowing system configuration. Allows the user to access the system via the Windows Client program. Allows the user to access the system via the Java Client program. ™...

  • Page 86: Radius Server Access Rights Examples

    KH1508i / KH1516i User Manual (Continued from previous page.) Character Meaning Selects which computers the User can access under Auto Scan Mode (see Scan Select, page 81). USM0: All USM1: Powered On USM2: Quick View USM3: Quick View + Powered On Determines the length of time in seconds the KVM focus dwells on each port in Auto Scan Mode (see Scan Duration, page 81).

  • Page 87: Security

    Chapter 6. Administration and Configuration Security The Security page controls access to the KH1508i / KH1516i. IP and MAC Filtering If any filters have been configured, they appear in the IP Filter and/or MAC Filter list boxes. IP and MAC Filters control access to the KH1508i / KH1516i based on the IP and/or MAC addresses of the computers attempting to connect.

  • Page 88: Default Web Page Name

    KH1508i / KH1516i User Manual Note: Each IP filter can consist of a single address, or a range of addresses. To filter a single IP address, key in the same address in both the From and To fields. To filter a continuous range of IP addresses, key in the start of the range in the From field;...

  • Page 89: Customization

    Chapter 6. Administration and Configuration Customization The Customization dialog box is arranged in four major sections, as described below: Login Failures Allowed: sets the number of consecutive failed login attempts that are permitted from a remote computer. Timeout: sets the amount of time a remote computer must wait before attempting to login again after it has exceeded the number of allowed failures.

  • Page 90: I/O Modules

    KH1508i / KH1516i User Manual I/O Modules Clicking the Attributes button in the I/O Modules section brings up a dialog box that allows you to set attribute parameters for each of the ports: Note: KVM Adapter Cables are referred to as I/O Modules in these dialog boxes.

  • Page 91: Miscellaneous

    Chapter 6. Administration and Configuration Miscellaneous The functions performed by the remaining elements at the bottom of the screen are described in the table, below: Parameter Explanation Reset on Exit Place a check here to have the KH1508i / KH1516i reset itself and implement all the new settings when you log out.

  • Page 92: The Configuration Page

    KH1508i / KH1516i User Manual The Configuration Page The OSD Configuration page allows users to set up their own, individual, working environments. The KH1508i / KH1516i stores a separate configuration record for each user profile, and sets up the working configuration according to the Username that is used to log in.
  • Page 93 Chapter 6. Administration and Configuration (Continued from previous page.) Setting Function OSD Hotkey Selects which Hotkey controls the OSD function: [Scroll Lock] [Scroll Lock] or [Ctrl] [Ctrl]. Since the Ctrl key combination may conflict with programs running on the computers, the default is the Scroll Lock combination.
  • Page 94 KH1508i / KH1516i User Manual This Page Intentionally Left Blank...

  • Page 95: Windows Client Port Operation

    Chapter 7 Windows Client Port Operation After you switch to the KH1508i / KH1516i (see page 57), the OSD comes up with the Main page and Windows Client Control Panel displayed: The OSD consists of three pages – Main, Configuration, and Administration. Administration and Configuration are discussed in Chapter 6.

  • Page 96: Windows Client Control Panel

    KH1508i / KH1516i User Manual Windows Client Control Panel The control panel consists of an icon bar at the top, with two text bars below it. Initially, the text bars display the video resolution and IP address of the device at the remote location.

  • Page 97: Hotkey Setup

    Chapter 7. Windows Client Port Operation Hotkey Setup Various actions related to manipulating the remote server can be accomplished with hotkeys. The Hotkey Setup utility (accessed by clicking the Keyboard icon on the Control Panel), lets you configure which hotkeys perform the actions. The actions are listed in the left panel; the hotkeys that invoke them are shown in the panel at the right.
  • Page 98 KH1508i / KH1516i User Manual (Continued from previous page.) An explanation of the Hotkey actions is given in the table below: Action Explanation Exit remote location Breaks the connection to the KH1508i / KH1516i and returns you to local operation. Adjust Video Brings up the video adjustment utility.

  • Page 99: Video Adjustment

    Chapter 7. Windows Client Port Operation Video Adjustment The Video options dialog box allows you to adjust the placement and picture quality of the remote screen (as displayed on your monitor). To bring up the dialog box, either click on the Hammer icon on the Control Panel, or use the Adjust Video hotkeys (see Hotkey Setup, page 85).
  • Page 100 KH1508i / KH1516i User Manual (Continued from previous page.): Option Usage Screen Position Adjust the horizontal and vertical position of the remote computer window by Clicking the Arrow buttons. Auto-Sync Click Auto-Sync to have the function detect the vertical and horizontal offset values of the remote screen and automatically synchronize it with the local screen.

  • Page 101: Gamma Adjustment

    Chapter 7. Windows Client Port Operation Gamma Adjustment If it is necessary to correct the gamma level for the remote video display, use the Gamma function of the Video Adjustment dialog box. Under Basic configuration, there are ten preset and four user-defined levels to choose from.

  • Page 102: The Message Board

    KH1508i / KH1516i User Manual The Message Board The KH1508i / KH1516i supports multiple user logins, which can possibly give rise to access conflicts. To alleviate this problem, a message board feature has been provided, allowing users to communicate with each other.

  • Page 103: The Button Bar

    Chapter 7. Windows Client Port Operation The Button Bar The buttons on the Button Bar are toggles. Their actions are described in the table below: Button Action Enable/Disable Chat. When disabled, messages posted to the board are not displayed. The button is shadowed when Chat is disabled. The icon displays next to the user's name in the User List panel when the user has disabled Chat.

  • Page 104: User List Panel

    KH1508i / KH1516i User Manual User List Panel The names of all the logged in users are listed in this panel. Your name appears in blue; other users' names appear in black. By default, messages are posted to all users. To post a message to one individual user, select the user's name before sending your message.

  • Page 105: The Main Page

    Chapter 7. Windows Client Port Operation The Main Page This page lists all of the KH1508i / KH1516i's ports and governs port access. Selecting a port and double clicking it switches you to the device on that port. Note: The administrator selects which ports are accessible to each user with the User Management function (see page 65 for details).

  • Page 106: The List Function

    KH1508i / KH1516i User Manual The List Function The List Function lets you broaden or narrow the scope of which ports the OSD displays (lists) in the Main Screen. To invoke the List Function, click the arrow at the upper right corner of the panel, or press [F3]: The screen changes to allow you to choose the ports that will be listed:...
  • Page 107 Chapter 7. Windows Client Port Operation The drop down list on the left offers four fixed choices as shown in the table, below: Choice Meaning Lists all of the ports on the installation. Powered On Lists only the ports that have their attached devices powered on.

  • Page 108: Port Names

    KH1508i / KH1516i User Manual Port Names To help remember which computer is attached to a particular port, every port can be given a name. This field allows the Administrator to create, modify, or delete port names. To configure a port name: 1.
  • Page 109 Chapter 7. Windows Client Port Operation 3. When you have finished editing the port name, click anywhere outside of the input box to complete the operation.

  • Page 110: Port Operation

    KH1508i / KH1516i User Manual Port Operation Once you select a port on the OSD Main Screen its screen comes up on your monitor, and your keyboard and mouse input affects the remote system. Note: The administrator selects which ports are accessible to each user with the User Management function (see page 65 for details).

  • Page 111: Osd Hotkey Summary Table

    Chapter 7. Windows Client Port Operation OSD Hotkey Summary Table The following table presents a summary of the OSD Hotkey actions. To set the OSD Hotkey, see OSD Hotkey, page 81. To... When... Do This... Open the Toolbar The OSD Toolbar is not open. Click the OSD Hotkey twice. Open the OSD The OSD Toolbar is open.

  • Page 112: Panel Array Mode

    KH1508i / KH1516i User Manual Panel Array Mode Clicking on the OSD Toolbar's Panel icon invokes Panel Array Mode. Under this mode, the OSD divides your screen into a 4 x 4 grid of 16 panels: Each panel represents one of the KH1508i / KH1516i's ports. Starting with Port 1 at the upper left;...

  • Page 113: Panel Array Toolbar

    Chapter 7. Windows Client Port Operation Panel Array Toolbar The panel array toolbar, at the lower right of the screen, provides shortcut navigation and control of the panel array as described in the table below: Click and drag to move the toolbar to another position on the screen. Pause panel scanning, leaving the focus on the panel that currently has it.

  • Page 114: Multiuser Operation

    KH1508i / KH1516i User Manual Multiuser Operation The KH1508i / KH1516i supports multiuser operation. Up to 32 users can log in at the same time. When multiple users simultaneously access the KH1508i / KH1516i switch from remote consoles, the rules of precedence that apply are shown in the following table: Operation Rule...

  • Page 115: Keyboard Hotkey Operation

    Chapter 7. Windows Client Port Operation Keyboard Hotkey Operation Keyboard hotkey combinations allow you to provide KVM focus to a port directly from the keyboard. The KH1508i / KH1516i provides the following hotkey features: Auto Scanning Skip Mode Switching The hotkeys are: A and P for Auto Scanning; and the Arrow Keys for Skip Mode.

  • Page 116: Pausing Auto Scan

    KH1508i / KH1516i User Manual Pausing Auto Scan While you are in Auto Scan Mode, you can pause the scanning in order to keep the focus on a particular computer by pressing P. During the time that Auto Scanning is paused, the S in front of the Port ID blinks On and Off. Pausing when you want to keep the focus on a particular computer is more convenient than Exiting Auto Scan Mode because when you Resume scanning, you start from where you left off.

  • Page 117: Keyboard And Mouse Considerations

    Chapter 7. Windows Client Port Operation Keyboard and Mouse Considerations Keystrokes Except for [Alt + Tab] and [Ctrl + Alt + Del], all keyboard input is sent to the remote system. The above two chorded key combinations are retained on the local system to switch among applications and to recover from disaster.

  • Page 118: Mouse Synchronization

    KH1508i / KH1516i User Manual Mouse Synchronization Until you close the KH1508i / KH1516i connection, mouse movements have no effect on your local system, but instead are captured and sent to the remote system. From time to time, especially if you change video resolution, the local mouse movement may no longer be synchronized with the remote system's mouse pointer.

  • Page 119: Chapter 8

    Chapter 8 Java Client Port Operation The Main Page After you switch to the KH1508i / KH1516i (see page 60), the OSD comes up with the Main page displayed in the center of your monitor: The OSD consists of three pages – Main, Configuration, and Administration. Administration and Configuration are discussed in Chapter 6.

  • Page 120: The Java Client Control Panel

    KH1508i / KH1516i User Manual The Java Client Control Panel Instead of a control panel like the one that the Windows Client uses, the Java Client has a hidden control panel, located at the bottom center of the screen. The panel becomes visible when the mouse pointer is moved over it. The Java Client Control Panel icons and their functions are described in the sections that follow.

  • Page 121: Keypad

    Chapter 8. Java Client Port Operation Keypad Some keyboard combinations cannot be captured and sent to the KH1508i / KH1516i. In order to implement their effects on the remote system, this function provides a one-click implementation of some common window control combinations.

  • Page 122: Message Board

    KH1508i / KH1516i User Manual Message Board The KH1508i / KH1516i supports multiple user logins, which can possibly give rise to access conflicts. To alleviate this problem, a message board feature, similar to an Internet chat program, allows users to communicate with each other.

  • Page 123: The Message Board Button Bar

    Chapter 8. Java Client Port Operation (Continued from previous page.) The Message Board Button Bar The buttons on the Button Bar are toggles. Their actions are described in the table below: Button Action Enable/Disable Chat. When disabled, messages posted to the board are not displayed.
  • Page 124 KH1508i / KH1516i User Manual (Continued from previous page.) Messages that users post to the board - as well as system messages - display in the Message Display panel. If you disable Chat, however, messages that get posted to the board won't appear. Key in the messages that you want to post to the board in the Compose panel.

  • Page 125: Lock Key Leds And Resolution

    Chapter 8. Java Client Port Operation Lock Key LEDs and Resolution These LEDs show the Num Lock, Caps Lock, and Scroll Lock status of the remote computer. They turn Green when the Lock status is On. Click on the icon to toggle the status. Note: When you first connect, the LED display may not be accurate.

  • Page 126: Port Operation

    KH1508i / KH1516i User Manual Port Operation Java Client port operation is the same as for the Windows Client. See Port Operation, page 98, for details. Panel Array Mode This is very similar to the Windows Client Panel Array Mode (see page 100 for details), except for some differences in the toolbar.

  • Page 127: Keyboard Hotkey Operation

    Chapter 8. Java Client Port Operation Keyboard Hotkey Operation Keyboard hotkey operation is the same as for the Windows Client. See Keyboard Hotkey Operation, page 103, for details.
  • Page 128 KH1508i / KH1516i User Manual This Page Intentionally Left Blank...

  • Page 129: Chapter 9 The Log File

    Chapter 9 The Log File The Main Screen The KH1508i / KH1516i logs all the events that take place on it. To view the contents of the log file, click the Log icon at the left of the web page. A screen similar to the one below appears: A maximum of 512 events are stored in the log file.
  • Page 130 KH1508i / KH1516i User Manual This Page Intentionally Left Blank...

  • Page 131: Chapter 10. The Log Server

    Chapter 10 The Log Server The Windows-based Log Server is an administrative utility that records all the events that take place on selected KH1508i / KH1516i units and writes them to a searchable database. This chapter describes how to install and configure the Log Server.

  • Page 132: Starting Up

    KH1508i / KH1516i User Manual Starting Up To bring up the Log Server, either double click the program icon, or key in the full path to the program on the command line. The first time you run it, a screen similar to the one below appears: Note: 1.

  • Page 133: The Menu Bar

    Chapter 10. The Log Server The Menu Bar The Menu bar consists of four items: Configure Events Options Help These are discussed in the sections that follow. Note: If the Menu Bar appears to be disabled, click in the KH1508i / KH1516i List window to enable it.

  • Page 134: Events

    KH1508i / KH1516i User Manual A description of the fields is given in the table, below: Field Explanation Address This can either be the IP address of the KH1508i / KH1516i or its DNS name (if the network administrator has assigned it a DNS name). Port The Port number assigned to the KH1508i / KH1516i (see Log Server, page 70).
  • Page 135 Chapter 10. The Log Server A description of the items is given in the table below: Item Explanation New search This is one of three radio buttons that define the scope of the search. If it is selected, the search is performed on all the events in the database for the selected KH1508i / KH1516i.

  • Page 136: Maintenance

    KH1508i / KH1516i User Manual Maintenance This function allows the administrator to perform manual maintenance of the database. He can use it to erase specified records before the expiration time that was set with the Limit setting of the Edit function (see page 122). Options This menu has a single item: Retry.

  • Page 137: The Log Server Main Screen

    Chapter 10. The Log Server The Log Server Main Screen Overview The Log Server Main Screen is divided into two main panels. The upper (List) panel lists the KH1508i / KH1516i units that have been selected for the Log Server to track (see Configure, page 121). The lower (Event) panel displays the log events for the currently selected KH1508i / KH1516i (the highlighted one - if there are more than one).

  • Page 138: The List Panel

    KH1508i / KH1516i User Manual The List Panel The List panel contains six fields: Field Explanation Recording Determines whether the Log Server records log events for this KH1508i / KH1516i or not. If the Recording checkbox is checked, the field displays Recording, and log events are recorded.

  • Page 139: Chapter 11. Ap Operation

    Chapter 11 AP Operation Overview In some cases, the Administrator may not want the KH1508i / KH1516i to be available via browser access. AP versions of the Windows Client and the Java Client are provided to enable direct access of the KH1508i / KH1516i without having to go through a browser.

  • Page 140: Starting Up

    KH1508i / KH1516i User Manual Starting Up To connect to the KH1508i / KH1516i, go to the location on your hard disk that you saved the Windows Client program to, and double-click its icon (WinClient.exe) to bring up the Windows Client Connection Screen: Note: You must have DirectX 7.0 or higher installed on your computer.
  • Page 141 Chapter 11. AP Operation (Continued from previous page.) A description of the Connection Screen is given in the following table: Menu Bar The Menu Bar contains three items: File, Tools, and Help. 1. The File Menu allows the operator to Create, Save, and Open user created Work files (see page 130 for details).

  • Page 142: Keyboard

    KH1508i / KH1516i User Manual The File Menu The File Menu allows the operator to Create, Save, and Open user created Work files. A Work File consists of all the information specified in a Client session. This includes the Server List and Server IP list items, as well as the Hotkey settings.
  • Page 143 Chapter 11. AP Operation Config When you select Config, a screen similar to the one below appears: If Full Screen Mode is enabled (there is a checkmark in the box), the remote display fills the entire screen of your local monitor. If Full Screen Mode is not enabled (there is no checkmark in the box), the remote display appears as a window on your desktop.

  • Page 144: Connecting

    KH1508i / KH1516i User Manual Connecting To connect to a KH1508i / KH1516i unit: 1. From the Server List box, double-click the device that you wish to con- nect to. Or, specify the IP address and port number in the Server IP and Port input boxes, and then Click Connect.

  • Page 145: Operation

    Chapter 11. AP Operation Operation Once a connection to the KH1508i / KH1516i has been established, the remote system's video output is captured and displayed on your monitor. At the same time, your local keystroke and mouse input is captured and sent to the remote system.

  • Page 146: The Java Client

    KH1508i / KH1516i User Manual The Java Client Installation To install the Java Client on your computer, do the following: 1. Log into the KH1508i / KH1516i with your browser, and click the second Java Client button (the one with the arrow). A screen similar to the one below appears: 2.
  • Page 147 Chapter 11. AP Operation (Continued from previous page.) The Address Input dialog box appears: 3. Key in the IP address for the unit you want to connect to - including a forward slash followed by the login string. Note: For security purposes, the login string (set by the administrator), must be specified correctly as part of the IP address.

  • Page 148: Operation

    KH1508i / KH1516i User Manual Operation The look and feel of the AP Java client operation is the same as for the browser version of the Java client. Refer back to Chapter 8 for details.

  • Page 149: Chapter 12. Keyboard Emulation

    Chapter 12 Keyboard Emulation Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt]...

  • Page 150: Sun Keyboard

    KH1508i / KH1516i User Manual Sun Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. PC Keyboard Sun Keyboard [Ctrl] [T]...

  • Page 151: Appendix

    Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
  • Page 152 KH1508i / KH1516i User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).

  • Page 153: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 154: Technical Support

    (including Software Updates electronically available manuals); and the latest drivers and firmware for your product are available at our web- site: http://www.aten.com Telephone Support 886-2-8692-6959 North America Email Support Email your questions and concerns to: support@aten-usa.com...

  • Page 155: Troubleshooting

    Appendix Troubleshooting Administration Problem Resolution After upgrading firmware, the KH1508i Your Internet browser is displaying cached web / KH1516i still appears to be using the pages – not new ones. Clear your browser old firmware version. cache; delete all temporary Internet files and cookies, close the Internet browser, and then open a new instance of the browser.

  • Page 156: The Java Client

    KH1508i / KH1516i User Manual The Java Client For mouse synchronization problems, see Mouse Synchronization, page 109. For connection and operation problems, see the table below: Problem Resolution Java Client won't 1. Java 2 JRE 1.4.2 or higher must be installed on your com- connect to the puter.

  • Page 157: Panel Array Mode

    Appendix Panel Array Mode Problem Resolution Low resolution video in Panel Increase the number of panels that are displayed. Array Mode. Some users only receive a partial The first user to invoke Panel Array Mode should image when multiple remote set it to display a minimum of four panels.

  • Page 158: Sun Systems

    KH1508i / KH1516i User Manual Sun Systems Problem Resolution Video display problems with The display resolution should be set to 1024 x 768. HDB-15 interface systems Under Text Mode: (e.g. Sun Blade 1000 servers). 1. Go to OK mode and issue the following com- mands: setenv output-device screen:r1024x768x60 reset-all...

  • Page 159: Additional Mouse Synchronization Procedures

    Appendix Additional Mouse Synchronization Procedures If the mouse synchronization procedures mentioned in the manual fail to resolve mouse pointer problems for particular computers, try the following: Note: 1. These procedures are to be performed on the computers attached to the KH1508i / KH1516i's ports - not on the computer you are using to access the KH1508i / KH1516i.
  • Page 160 KH1508i / KH1516i User Manual 3. Windows ME / Windows 95: Set the mouse speed to the middle position; disable mouse acceleration (click Advanced to get the dialog box for this). 4. Windows NT / Windows 98: Set the mouse speed to the slowest position. 5.

  • Page 161: Specifications

    Appendix Specifications Function KH1508i KH1516i Computer Connections Direct Maximum 128 (via daisy chain) 256 (via daisy chain) Port Selection OSD; Hotkey; Pushbutton Connectors Console Keyboard 1 x 6-pin Mini-DIN Female (Purple) Port Video 1 x HDB-15 Female (Blue) Mouse 1 x 6-pin Mini-DIN Female (Green) KVM Port 8 x RJ-45 Female 16 x RJ-45 Female...

  • Page 162: Trusted Certificates

    KH1508i / KH1516i User Manual Trusted Certificates Overview When you try to log in to the device from your browser, a Security Alert message appears to inform you that the device’s certificate is not trusted, and asks if you want to proceed. The certificate can be trusted, but the alert is triggered because the certificate’s name is not found on Microsoft list of Trusted Authorities.

  • Page 163: Installing The Certificate

    Appendix Installing the Certificate To install the certificate, do the following: 1. In the Security Alert dialog box, click View Certificate. The Certificate Information dialog box appears: Note: There is a red and white X logo over the certificate to indicate that it is not trusted.

  • Page 164: Certificate Trusted

    KH1508i / KH1516i User Manual 5. Next, click Finish to complete the installation; then click OK to close the dialog box. Certificate Trusted The certificate is now trusted: When you click View Certificate, you can see that the red and white X logo is no longer present –...

  • Page 165: Supported Devices

    Appendix Supported Devices The following table represents a list of supported devices that can be used on a KH1508i / KH1516i installation. Type Daisy Chain Switches KH1508; KH1516; ACS1208A; ACS1216A PN0108; PN1216 Central Control CC1000 OSD Factory Default Settings The factory default settings are as follows: Setting Default OSD Hotkey...

  • Page 166: Administrator Login Failure

    KH1508i / KH1516i User Manual Administrator Login Failure If you are unable to perform an Administrator login (because the Username and Password information has become corrupted, or you have forgotten it, for example), there is a procedure you can use to clear the login information. Note: Performing this procedure also returns all settings to their defaults.

  • Page 167: Ip Module Firmware Upgrade Recovery

    Appendix IP Module Firmware Upgrade Recovery If a firmware upgrade procedure was interrupted due to a sudden power failure or loss of network connection, the ordinary firmware upgrade recovery procedures described in Firmware Upgrade Recovery, page 45, may not work for the IP module.

  • Page 168: Limited Warranty

    KH1508i / KH1516i User Manual Limited Warranty ALTUSEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ALTUSEN's support department for repair or replacement of your unit. ALTUSEN will not issue a refund. Return requests can not be processed without the original proof of purchase.
