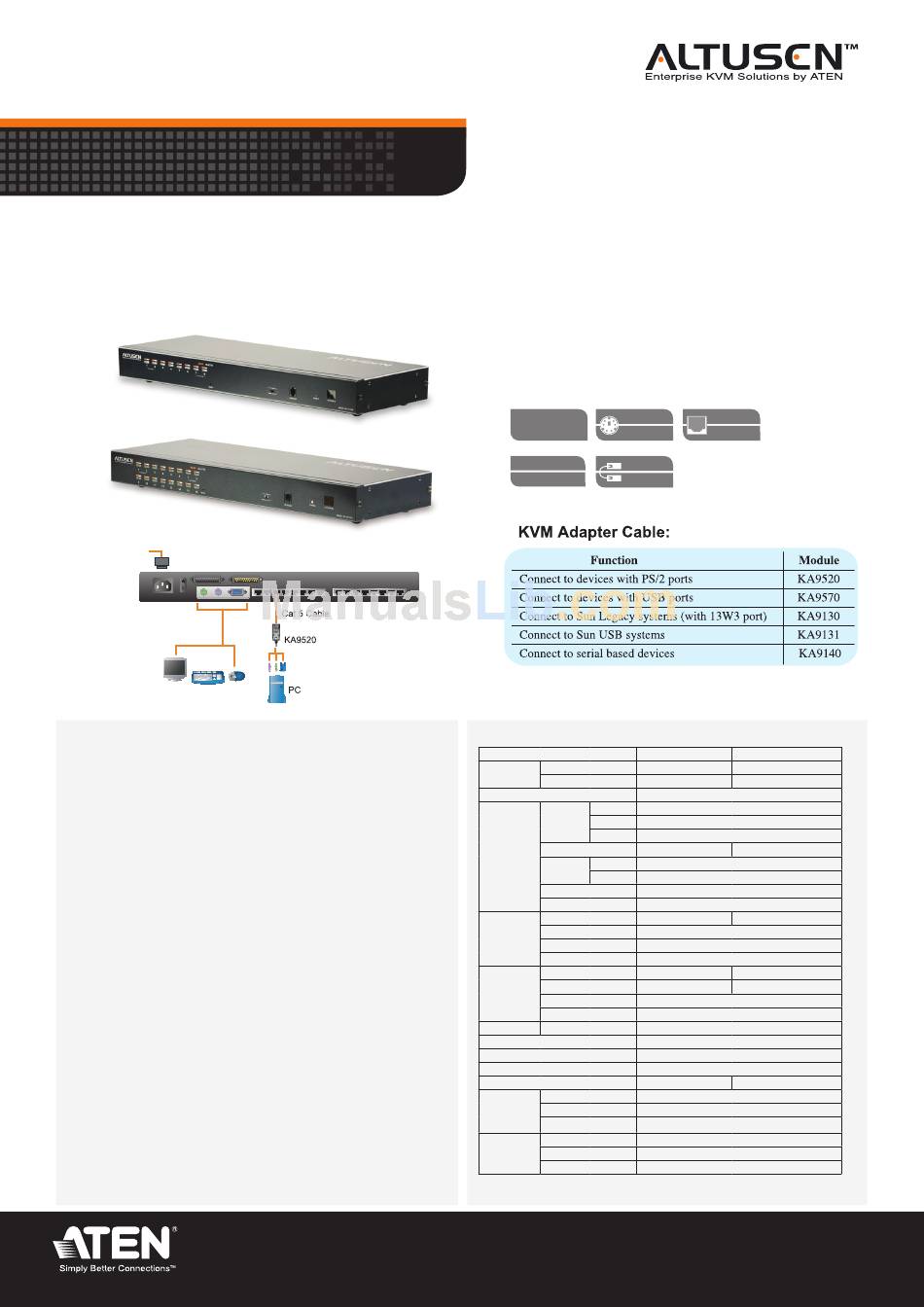

ATEN Altusen KH1508 Specifications

KH1508/KH1516
Cat 5 High-Density KVM Switch
The KH1508 / KH1516 KVM Switches are control units that allow access to multiple computers from a single KVM (keyboard,
monitor, and mouse) console. The KH1508 / KH1516 features RJ-45 connectors and Cat 5 cable to link to the computers.
Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution.
Utilizing PS/2 and USB KVM Adapter Cables for the fi nal linkup, the KH1508 / KH1516 permits any combination of PCs, Macs, Sun
computers, and serial devices to coexist on the installation.
Diagram
Feature
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
• A single console controls up to 8 (KH1508) or 16 (KH1516) computers
• Dedicated chain ports - daisy chain up to 31 additional units - control up to
512 computers from a single console
• Extends the distance between computers and switch - up to 40 m (130') for
resolutions of 1280 x 1024 @ 60Hz, 30m (100') for resolution of 1600 x 1200 @
60Hz
• Custom ASIC (patent pending) auto-senses station's position on daisy
chained installations - no need for manual DIP switch setting - front panel
LED indicates station's position
• Multiplatform support: PC, Mac, Sun and terminal-based systems
• No software required - convenient computer selection via port selection
switches, Hotkeys and intuitive On Screen Display (OSD) menus
• Auto Scan feature for monitoring user-selected computers
• Hot Pluggable - add or remove switches/computers without having to power
down the switches
• Two level password security - only authorized users view and control the
computers - up to four Users plus an Administrator with separate profi les for
each
• Two level logout - Manual and Timed
• PS/2 keyboard and mouse emulation - computers boot even when the
console focus is elsewhere
• Superior video quality - supports resolutions of up to 1600 x 1200 @ 60Hz
• Multi-language support: American/UK English; Traditional Chinese; Japanese;
French; German; Korean
• Rack Mountable in 19" System Rack (1U)
Headquarters
ATEN International CO., Ltd.
3F, No.125, Sec. 2, Datung Rd. Sijhih City, Taipei 221, Taiwan
Tel: 886-2-8692-6789
http://www.aten.com
© Copyright 2006 ATEN® International Co., Ltd. All brand names and trademarks are the registered property of their respective owners.
KH1508
KH1516
USA Branch Offi ce:
ATEN Technology Inc.
Tel: 1-949-428-1111
Fax: 1-949-428-1100
Fax: 886-2-8692-6767
http://www.aten-usa.com
E-mail : online@aten.com.tw
E-mail : sales@aten-usa.com
Console
1 Local User
PS/2
OS Support
Expansion
Win, Mac, Linux,
Daisy Chain
Unix, Sun, FreeBSD
Specifi cations
- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Function KH1508
Direct 8
Computer
Connections
Max. 256 (via Daisy Chain)
Port Selection OSD; Hotkey; Pushbutton
Keyboard 1 x 6-pin Mini-DIN Female (Purple)
Console
Video 1 x HDB-15 Female (Blue)
Ports
Mouse 1 x 6-pin Mini-DIN Female (Green)
KVM Ports 8 x RJ-45 Female
Connectors
In 1 x DB-25 Female (Black)
Daisy Chain
Ports
Out 1 x DB-25 Male (Black)
F/W Upgrade 1 x RJ-11 Female (Black)
Power 1 x 3-prong AC Socket
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed pushbutton
Switches
F/W Upgrade 1 x Slide
Power 1 x Rocker
On Line 8 (Green)
Selected 8 (Orange)
LEDs
Power 1 (Blue)
Station ID 2 x 7-segment (Orange)
Emulation Keyboard / Mouse PS/2
Video 1600X1200@ 60Hz (30m); 1280 x 1024@60Hz (40m)
Scan Interval 1–255 Seconds
I/P Rating 100–240 VAC; 50/60 Hz; 1A
Power Consumption 25W
Operating Temp. 0–50°C
Storage Temp. -20–60°C
Environment
Humidity 0–80% RH, Non-condensing
Housing Metal
Physical
Weight 2.75 Kg
Properties
Dimensions 43.70 x 16.10 x 4.40 cm
* All specifi cations are subject to change without notice.
Belgium Branch Offi ce:
ATEN Infotech N.V.
Tel: 32-11-531543
Fax: 32-11-531544
http://www.aten.be
E-mail : sales@aten.be
Computers
PS/2, USB,
Sun, Serial
KH1516
16
512 (via Daisy Chain)
16 x RJ-45 Female
16 x Pushbutton
16 (Green)
16 (Orange)
27W
Japan Branch Offi ce:
ATEN Japan CO., Ltd.
Tel: 81-3-5323-7170
Fax: 81-3-5323-2181
http://www.atenjapan.jp
E-mail : sales@atenjapan.jp
2006. Version 1.0
