B15026/R0/RF/UC/ENG/405
S S M M O O K K E E
Instruction Leaflet
Contains vital information on unit operation and installation.
Read and retain carefully. If you are just installing the unit,
this leaflet MUST be given to the householder.
Models:
10 Year
Lithium
Battery
Ei 405TY
1/3/04
5:05 PM
Page 1
A A L L A A R R M M
Attic Alarms
Upstairs Alarms
Replaceable
9V
Battery
Ei 405
1
Advertisement
Table of Contents
Related Manuals for Ei Electronics RadioLINK Ei 405TY
Summary of Contents for Ei Electronics RadioLINK Ei 405TY

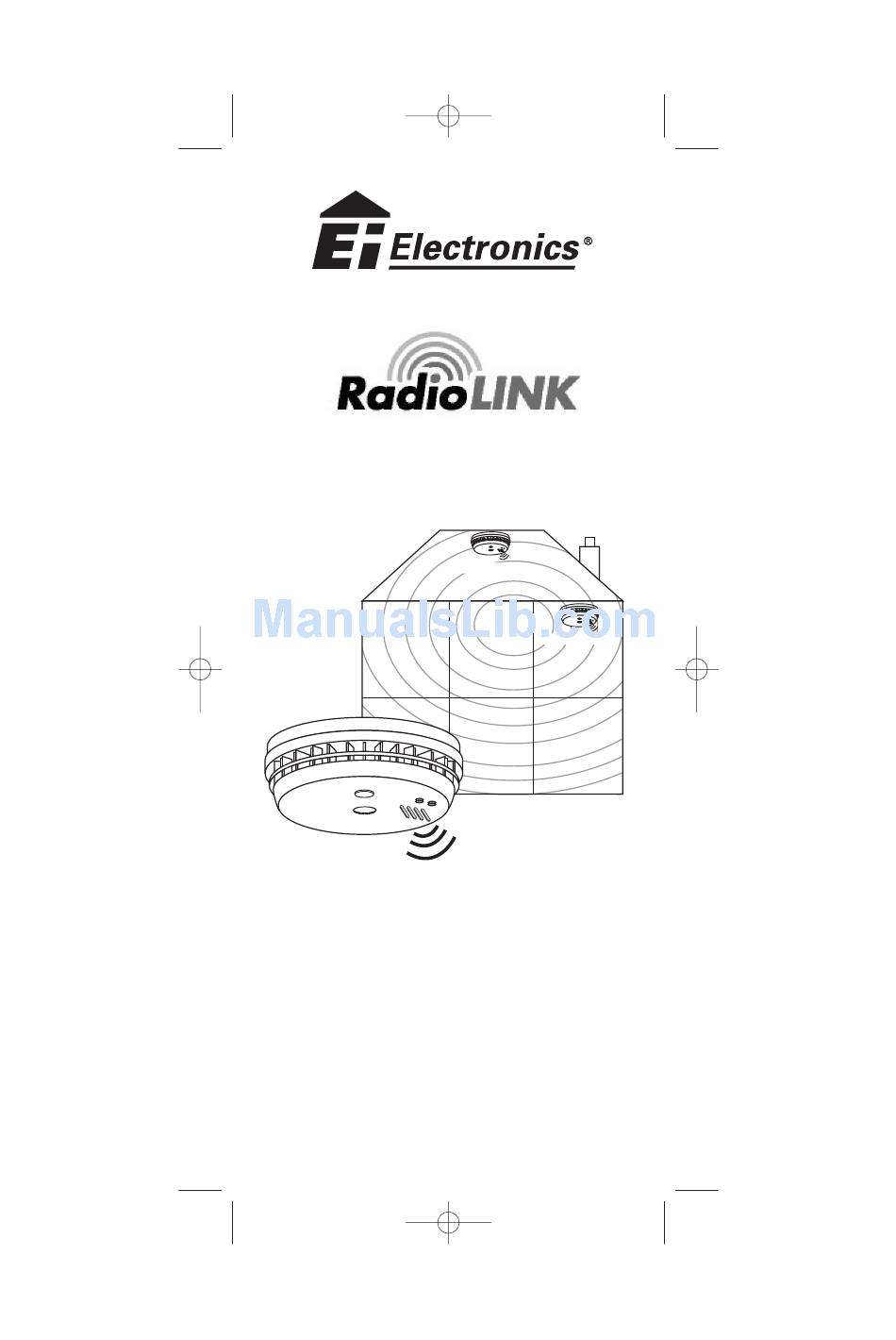

- Page 1 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 1 S S M M O O K K E E A A L L A A R R M M Attic Alarms Upstairs Alarms Instruction Leaflet Contains vital information on unit operation and installation. Read and retain carefully.
-
Page 2: Table Of Contents
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 2 Table of Contents READ THIS FIRST INTRODUCTION LOCATING YOUR SMOKE ALARMS POSITIONING YOUR SMOKE ALARM INSTALLING YOUR SMOKE ALARMS HOUSE CODING YOUR ALARMS TESTING AND MAINTAINING YOUR SMOKE ALARMS TROUBLESHOOTING YOUR ALARMS IMPORTANT SAFEGUARDS PLANNING YOUR ESCAPE ROUTE FOR WHEN THE ALARM GOES OFF GETTING YOUR SMOKE ALARM SERVICED... -
Page 3: Introduction
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 3 coding your alarms to prevent interference from neighbour- ing systems (see section 6) Figure 1b: Attaching smoke alarm to the mounting plate 5. Test weekly. 6. Model Ei405 - When the Alarm beeps and the red light flashes at the same time replace the battery (see figure 7 to remove unit from the mounting plate). -
Page 4: Locating Your Smoke Alarms
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 4 The wireless interconnect will operate as received once the batteries are connected. To check operation, first connect all the batteries (see figure 1) and then hold down the test button on the first unit until the blue light comes on continuously for 3.5 seconds. - Page 5 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 5 Recommended locations, Figures 2, 3, & 4 for minimum protection ¥ on each storey ¥ in each sleeping area ¥ every 7.5 metres of hallways & rooms ¥ within 3 metres of all bedroom doors ¥...
-
Page 6: Positioning Your Smoke Alarm
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 6 (apart from the locations to avoid, mentioned below). The liv- ing room is the most likely place for a fire to start at night, fol- lowed by the kitchen and then the dining room. You should also consider putting Smoke Alarms in any bedrooms where fires might occur, for instance, where there is an electrical appliance such as an electric blanket or heater, or where the... - Page 7 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 7 and 0.30m below the ceiling. Keep at least 0.30m from cor- ners (see figure 5). 4.3 On a sloping Ceiling In areas with sloping or peaked ceilings install your Smoke Alarm 0.90m from the highest point measured horizontally (see figure 6), because dead air at the apex may prevent smoke from reaching the unit.
-
Page 8: Installing Your Smoke Alarms
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 8 5. INSTALLING YOUR SMOKE ALARMS We recommend that up to 12 smoke alarms can be intercon- nected with the radio link. We strongly recommend that all alarms are house coded during the installation (see section 5.1 Installation Procedure 1. -
Page 9: House Coding Your Alarms
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 9 ton down until the blue light has come on continuously — this indicates that the alarm is now transmitting radio link signals. You should now be able to hear the other alarm(s) in the dis- tance. - Page 10 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 10 beginning the house code procedure 1. Insert a small screwdriver into the vertical slot in the base to turn on the house code switch (see figure 9) and hold until the blue light comes on. The blue light will then flash rapidly for about 1 second to indicate the unit is now in the house code mode.
-
Page 11: Testing And Maintaining Your Smoke Alarms
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 11 alarms. However, in certain circumstances some alarms may not receive the radio link signals and then it will be necessary to set up an alarm as a repeater smoke alarm. The function of the repeater smoke alarm is to receive and re-broadcast the signals, so effectively boosting the signal range through- out the installation. - Page 12 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 12 Press and hold the Test Button until the alarm sounds (see fig- ure 8). The alarm will stop sounding shortly after the button is released. If you press and hold the button longer, so that the blue light also comes on, you will hear the radio link inter- connected alarms sounding after the present alarm stops.
- Page 13 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 13 unit has been silenced. It can also be silenced using the Hush Button on the optional remote control Ei 410 (provided the smoke alarm is sensing smoke itself). 2. The unit will reset to normal sensitivity at the end of the silenced period.
- Page 14 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 14 beyond our control, it is totally unpredictable and is consid- ered normal wear and tear. For this reason, contamination is not covered by the guarantee and a charge is made for all servicing work. If you experience persistent false alarms, in particular loca- tions, due to contamination of the smoke chamber you could consider fitting an ionisation type Smoke Alarm.
-
Page 15: Troubleshooting Your Alarms
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 15 on Model Ei405TY by sliding the switches on the base of the unit to the off position (see figure 10). With the Ei405 model just disconnect the battery. Do not put the Smoke Alarm into a fire. 8. -
Page 16: Important Safeguards
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 16 unit — this effectively boosts the signal strength between the units (see section 6.2). 9. IMPORTANT SAFEGUARDS When using household protective devices, basic safety pre- cautions should always be followed, including those listed below §... - Page 17 9.2 Limitations of Radio Frequency Signals Ei Electronics radio communication systems are very reliable and are tested to high standards. However, due to their low transmitting power and limited range (required by regulatory...
- Page 18 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 18 may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be verified by turning the device on and off (by removing the battery (Ei405) or knocking off the switches (Ei405TY)), the user is encour- aged to eliminate the interference by one or more of the fol-...
-
Page 19: Planning Your Escape Route For When The Alarm Goes Off
B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 19 10. PLANNING YOUR ESCAPE ROUTE FOR WHEN THE ALARM GOES OFF 1. Check room doors for heat or smoke. Do not open a hot door. Use an alternate escape route. Close doors behind you as you leave. -
Page 20: Five Year Guarantee
This guarantee does not cover costs associated with the removal and/or installation of alarms. If this smoke alarm should become defective within the guarantee period, it must be returned to Ei Electronics, with proof of purchase, careful- ly packaged, and with the problem clearly stated. (see "Getting Your Alarm Serviced"). - Page 21 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 21 Humidity Range: 15% to 95% RH (non-condensing). Audible Alarm: 85dB at 3m (minimum). Chamber Fault: The unit checks the sensing chamber every 40 seconds, and it beeps if a fault is found (without red light flashing at the same time).
- Page 22 Remote Hush: It silences its horn for ten minutes Remote Locate: Stops smoke alarm sounding unless it is in local alarm itself i.e. detecting smoke. Will also identify the smoke alarm that initiated the alarm Ei Electronics Shannon Industrial Estate, Shannon, Co. Clare, Ireland. Telephone: +353 61 471277...
- Page 23 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 23...
- Page 24 B15026/R0/RF/UC/ENG/405 1/3/04 5:05 PM Page 24...
