RF Modules
for Battery Powered
Smoke & Heat Alarms
EiA600 Series

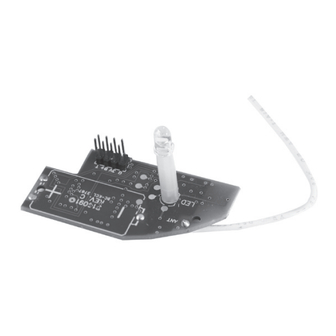

EiA605MRF Module
Instructions
Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation
of your Smoke Alarm. The leaflet should be regarded as part of the product.
If you are just installing the unit, the leaftet must be given to the householder. The leaflet is to be given to any subsequent
user.
Advertisement
Related Manuals for Ei Electronics EiA605MRF
Summary of Contents for Ei Electronics EiA605MRF
- Page 1 Battery Powered Smoke & Heat Alarms EiA600 Series EiA605MRF Module Instructions Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Smoke Alarm. The leaflet should be regarded as part of the product.
-
Page 2: Installation
Introduction Congratulations on purchasing an EiA600 Series RF RadioLINK module. These RF modules can be easily installed in the EiA600 Series Alarm to provide you with an RF interconnected fire warning system – when one Alarm senses fire and sounds a warning, all the other Alarms will also sound a warning. - Page 3 INSERT RF MODULE BY PLUGGING IN PINS & ALSO INSERT ITS ANTENNA IN THE HOLE PROVIDED - HOLD BY PULL TAG PULL TAG ANTENNA HOLE ANTENNA Figure 1 7. When in the House Code mode, the blue light (on the front of the Alarm - see figure 2b) will flash a number of times every 5 seconds to indicate: (a) that the Alarm is in House Code mode, (b) the number of Alarms that have been identified and added to your system.
- Page 4 RED LIGHT HOUSECODE BLUE LIGHT SWITCH Figure 2b Figure 2a 8. The Alarms will stay in House Code mode for 30 minutes and then reset automatically. Alternatively they can be taken out of House Code mode by removing one Alarm from its mounting plate and quickly pressing and holding the House Code switch until the red light comes on solidly again.
- Page 5 Additional RadioLINK Alarms can be added to the system at any time. Simply put all the Alarms into the House Code mode at the same time and again check the number of blue light flashes on each Alarm. RadioLINK Troubleshooting It is imperative that all Alarms in your system communicate with each other.
- Page 6 then House Coded again in their final positions (see above). The RadioLINK interconnection should then be checked again by button testing all units. (Note: The RadioLINK module can be returned to the originally factory settings by pressing and holding the House Code switch on until the red light turns on solidly and then flashes slowly.
- Page 7 Interconnection with RadioLINK Modules A combined maximum of 18 Alarms (12 Smoke & 6 Heat / CO) with RF RadioLINK Modules may be interconnected so that if one of the Alarms senses fire, and sounds a warning, all the other Alarms will also sound a warning. This helps to ensure the alarm will be heard throughout the property.
- Page 8 Testing Your Alarm is a life saving device and should be checked periodically. Regularly check that the red light on the Alarm flashes approx once a minute to show the units are powered. Replace the Alarm if the flashing stops. Manually Testing your Alarms It is recommended that you test your Alarms after installation and then at least weekly to ensure the units are working.
-
Page 9: Getting Your Alarm Serviced
RadioLINK Limitations Limitations of RadioLINK Radio Frequency Signals Ei Electronics radio communication systems are very reliable and are tested to high standards. However, due to their low transmitting power and limited range (required by regulatory bodies) there are some limitations to be considered: (i) Receivers may be blocked by radio signals occurring on or near their operating frequencies, regardless of the House Coding. -
Page 10: Five Year Guarantee
Five Year Guarantee Ei Electronics guarantees this RF RadioLINK module for five years from date of purchase against any defects that are due to faulty materials or workmanship. This guarantee only applies to normal conditions of use and service, and does not include damage resulting from accident, neglect, misuse, unauthorised dismantling, or contamination howsoever caused. -
Page 11: Technical Specification
Technical Specification Operating Freq: 902.5MHz +/- 20 kHz Output power: 0dBm Range: 100m in free air (min) Protocol: Radiolink Alarm Transmit Interval: 10 sec Initial Alarm duration: 3.5 sec Short Alarm duration: 50 ms Status Message duration: 50 ms Weight: 8 grams FCC Notice: This device complies with Part 15 of the FCC rules. - Page 12 Contact Us Please return to: Customer Service Ei Electronics Shannon, Co Clare, Ireland Phone: +353 61 471277 Email: sales@eielectronics.ie Web: www.eielectronics.com © Ei Electronics 2012 P/N B17445 RevE...
