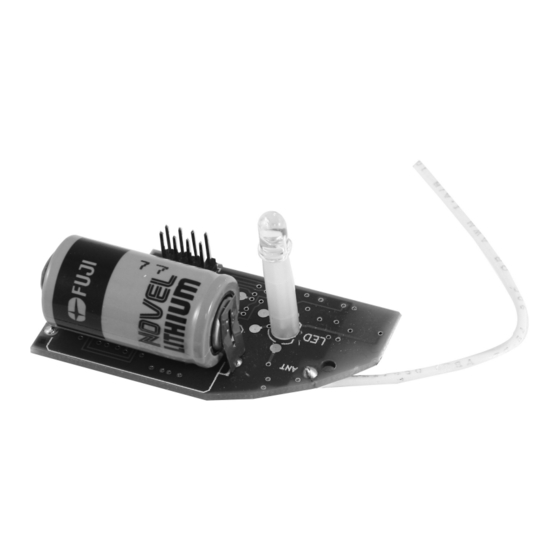

Ei605MTYRF Module
Ei605MRF Module
Instructions
Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation
of your Smoke Alarm. The leaflet should be regarded as part of the product.
If you are just installing the unit, the leaftet must be given to the householder. The leaflet is to be given to any subsequent user.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ei605MTYRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ei Electronics Ei605MTYRF

Summary of Contents for Ei Electronics Ei605MTYRF

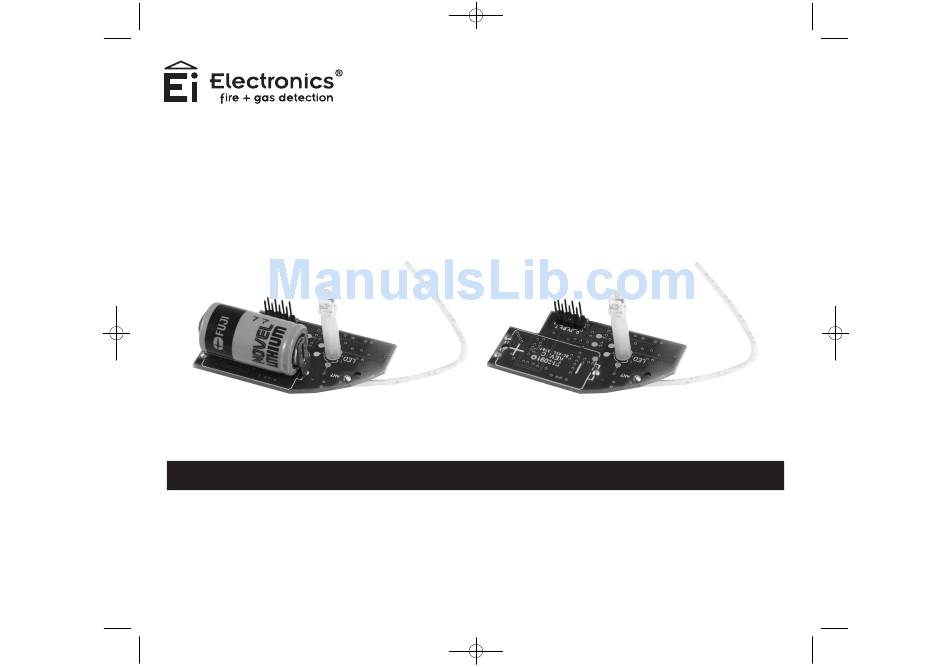

  • Page 1 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 1 RF Modules for Battery Powered Smoke & Heat Alarms Ei600 Series Ei605MTYRF Module Ei605MRF Module Instructions Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Smoke Alarm.

  • Page 2: Installation

    B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 2 Introduction Congratulations on purchasing an Ei600 Series RF RadioLINK module. These RF modules can be easily installed in the Ei600 Series Alarm to provide you with an RF interconnected fire warning system – when one Alarm senses fire and sounds a warning, all the other Alarms will also sound a warning.
  • Page 3 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 3 INSERT RF MODULE BY PLUGGING IN PINS & ALSO INSERT ITS ANTENNA IN THE HOLE PROVIDED - HOLD BY PULL TAG PULL TAG ANTENNA HOLE ANTENNA Figure 1 7. When in the House Code mode, the blue light (on the front of the Alarm - see figure 2b) will flash a number of times every 5 seconds to indicate: (a) that the Alarm is in House Code mode, (b) the number of Alarms that have been identified and added to your system.
  • Page 4 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 4 RED LIGHT HOUSECODE BLUE LIGHT SWITCH Figure 2b Figure 2a 8. The Alarms will stay in House Code mode for 30 minutes and then reset automatically. Alternatively they can be taken out of House Code mode by removing one Alarm from its mounting plate and quickly pressing and holding the House Code switch until the red light comes on solidly again.
  • Page 5 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 5 Additional RadioLINK Alarms can be added to the system at any time. Simply put all the Alarms into the House Code mode at the same time and again check the number of blue light flashes on each Alarm. RadioLINK Troubleshooting It is imperative that all Alarms in your system communicate with each other.
  • Page 6 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 6 shorten the path and/or by-pass an obstacle which is blocking the signal. When the new Alarm is fitted, house code all Alarms again, as described above. (ii) Remove the module and extend the antenna vertically (or horizontally) as shown in figure 3.

  • Page 7: Interconnection With Radiolink Modules

    B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 7 It is important to check that all Alarms are communicating in their final installed positions. If Alarms are rotated, have had their antennas extended and/or resited, we would recommend that all the Alarms are returned to the factory settings and then House Coded again in their final positions (see above).
  • Page 8 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 8 Depending on the Alarm models you purchased, the RadioLINK module may have been supplied with the unit or you may have to purchase it separately. When fitting or removing the RadioLINK module, please hold using the pull tab attached to it.

  • Page 9: Getting Your Alarm Serviced

    RadioLINK Limitations Limitations of RadioLINK Radio Frequency Signals Ei Electronics radio communication systems are very reliable and are tested to high standards. However, due to their low transmitting power and limited range (required by regulatory bodies) there are some limitations to be considered: (i) Receivers may be blocked by radio signals occurring on or near their operating frequencies, regardless of the House Coding.

  • Page 10: Five Year Guarantee

    This guarantee excludes incidental and consequential damage. If this RF RadioLINK Module should become defective within the guarantee period, it must be returned to Ei Electronics, with proof of purchase, carefully packaged, with the problem clearly stated. We shall at our discretion repair or replace the faulty unit.
  • Page 11 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 11...
  • Page 12 B16971-R0-Ei600 RF-U&C 28/6/10 12:13 PM Page 12 Aico Ltd. Mile End Business Park, Maesbury Rd, Oswestry, Shropshire SY10 8NN, U.K. Tel: 0870 758 4000 www.aico.co.uk Ei Electronics. Shannon, Co Clare, Ireland. Tel: 061 471277 www.eielectronics.com © Ei Electronics 2010 P/N B16971 Rev 0...
