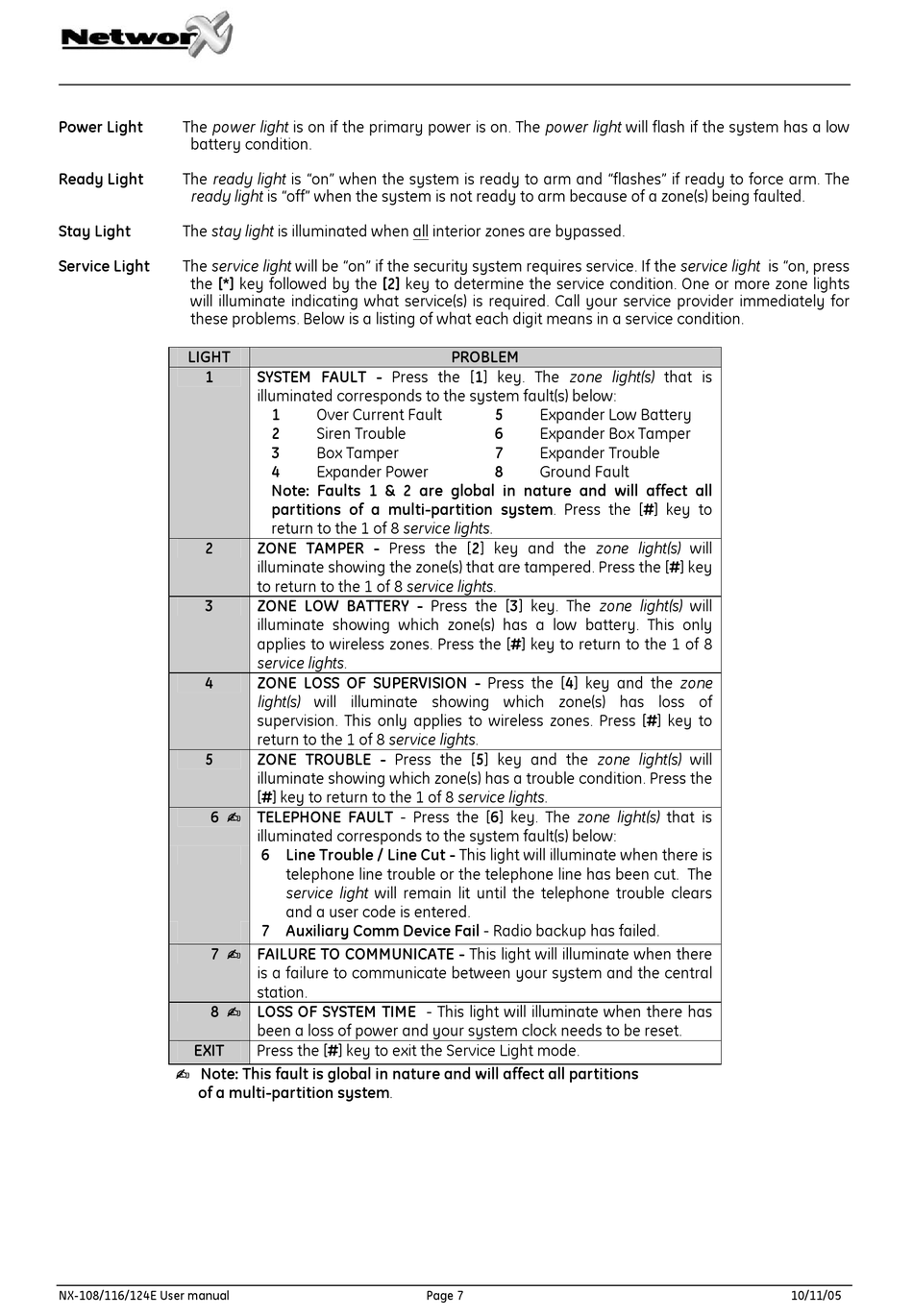

GE NX-108E - Security NetworX NX-4 System User Manual page 7

Power Light The power light is on if the primary power is on. The power light will flash if the system has a low
battery condition.
Ready Light The ready light is "on" when the system is ready to arm and "flashes" if ready to force arm. The
ready light is "off" when the system is not ready to arm because of a zone(s) being faulted.
Stay Light The stay light is illuminated when all interior zones are bypassed.
Service Light The service light will be "on" if the security system requires service. If the service light is "on, press
the [*] key followed by the [2] key to determine the service condition. One or more zone lights
will illuminate indicating what service(s) is required. Call your service provider immediately for
these problems. Below is a listing of what each digit means in a service condition.
LIGHT
1
2
3
4
5
6 N TELEPHONE FAULT - Press the [6] key. The zone light(s) that is
7 N FAILURE TO COMMUNICATE - This light will illuminate when there
8 N LOSS OF SYSTEM TIME - This light will illuminate when there has
EXIT
N Note: This fault is global in nature and will affect all partitions
of a multi-partition system.
NX-108/116/124E User manual
SYSTEM FAULT - Press the [1] key. The zone light(s) that is
illuminated corresponds to the system fault(s) below:
1 Over Current Fault
2 Siren Trouble
3 Box Tamper
4 Expander Power
Note: Faults 1 & 2 are global in nature and will affect all
partitions of a multi-partition system. Press the [#] key to
return to the 1 of 8 service lights.
ZONE TAMPER - Press the [2] key and the zone light(s) will
illuminate showing the zone(s) that are tampered. Press the [#] key
to return to the 1 of 8 service lights.
ZONE LOW BATTERY - Press the [3] key. The zone light(s) will
illuminate showing which zone(s) has a low battery. This only
applies to wireless zones. Press the [#] key to return to the 1 of 8
service lights.
ZONE LOSS OF SUPERVISION - Press the [4] key and the zone
light(s) will illuminate showing which zone(s) has loss of
supervision. This only applies to wireless zones. Press [#] key to
return to the 1 of 8 service lights.
ZONE TROUBLE - Press the [5] key and the zone light(s) will
illuminate showing which zone(s) has a trouble condition. Press the
[#] key to return to the 1 of 8 service lights.
illuminated corresponds to the system fault(s) below:
6 Line Trouble / Line Cut - This light will illuminate when there is
telephone line trouble or the telephone line has been cut. The
service light will remain lit until the telephone trouble clears
and a user code is entered.
7 Auxiliary Comm Device Fail - Radio backup has failed.
is a failure to communicate between your system and the central
station.
been a loss of power and your system clock needs to be reset.
Press the [#] key to exit the Service Light mode.
Page 7
PROBLEM
5 Expander Low Battery
6 Expander Box Tamper
7 Expander Trouble
8 Ground Fault
