Reviewing the Front Panel Design

Figure 1 shows the Total Access 900 Series products' front panels (the Total Access 904 contains 4 FXS
ports, the Total Access 908 contains 8 FXS ports, the Total Access 912 contains 12 FXS ports,
the Total Access 916 contains 16 FXS ports, and the Total Access 924 contains 24 FXS ports or 16 FXS
ports plus 8 FXO ports with octal FXO daughterboard).
61210916L1-34G
Total Access 904
Total Access 908
Total Access 912
Total Access 916
Total Access 924

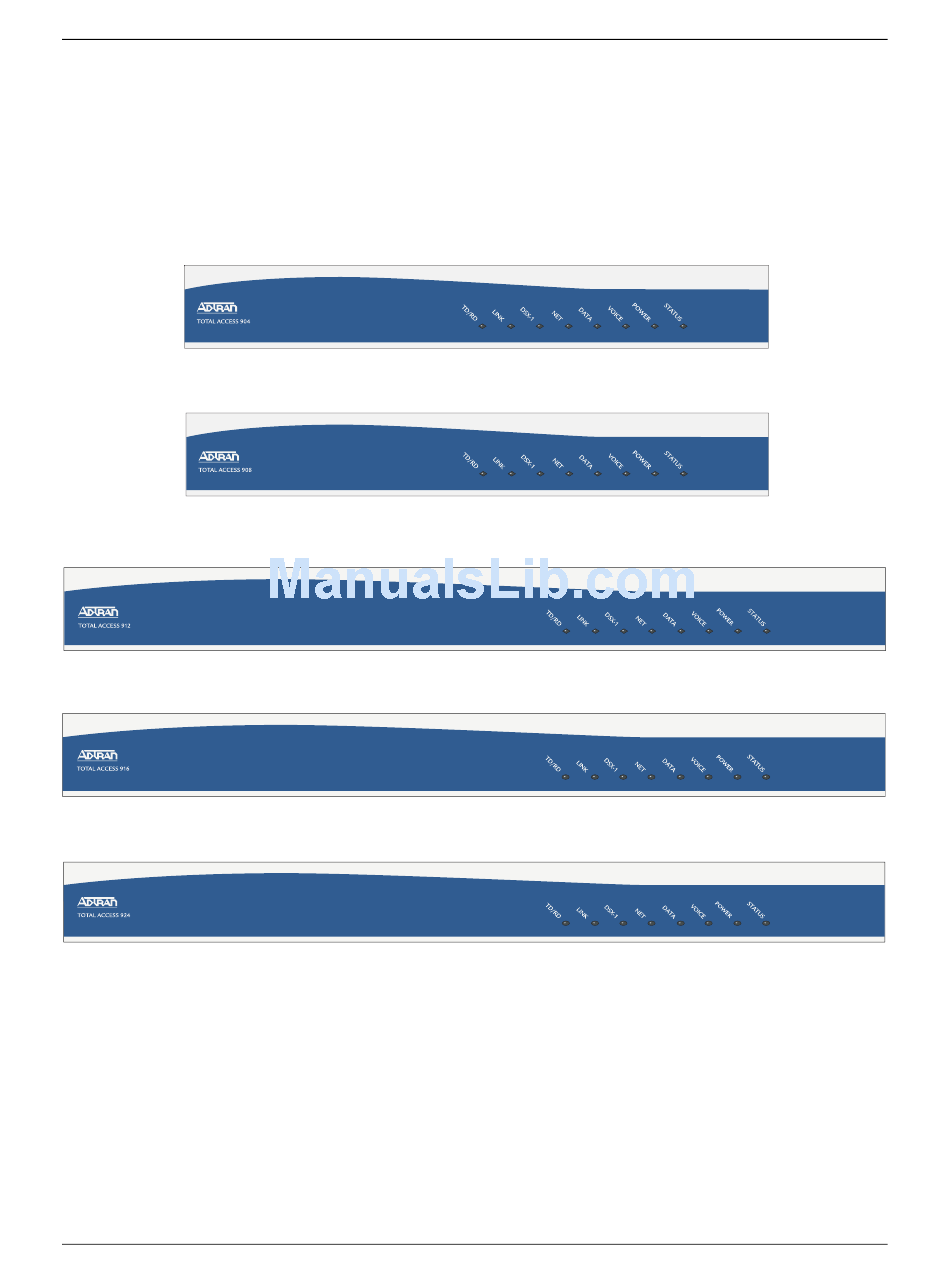

Figure 1. Total Access 900 Series Front Panel Layouts
