11.. System.panel.connector.(10-1.pin.PANEL)
This connector supports several chassis-mounted functions.
P5QL SE

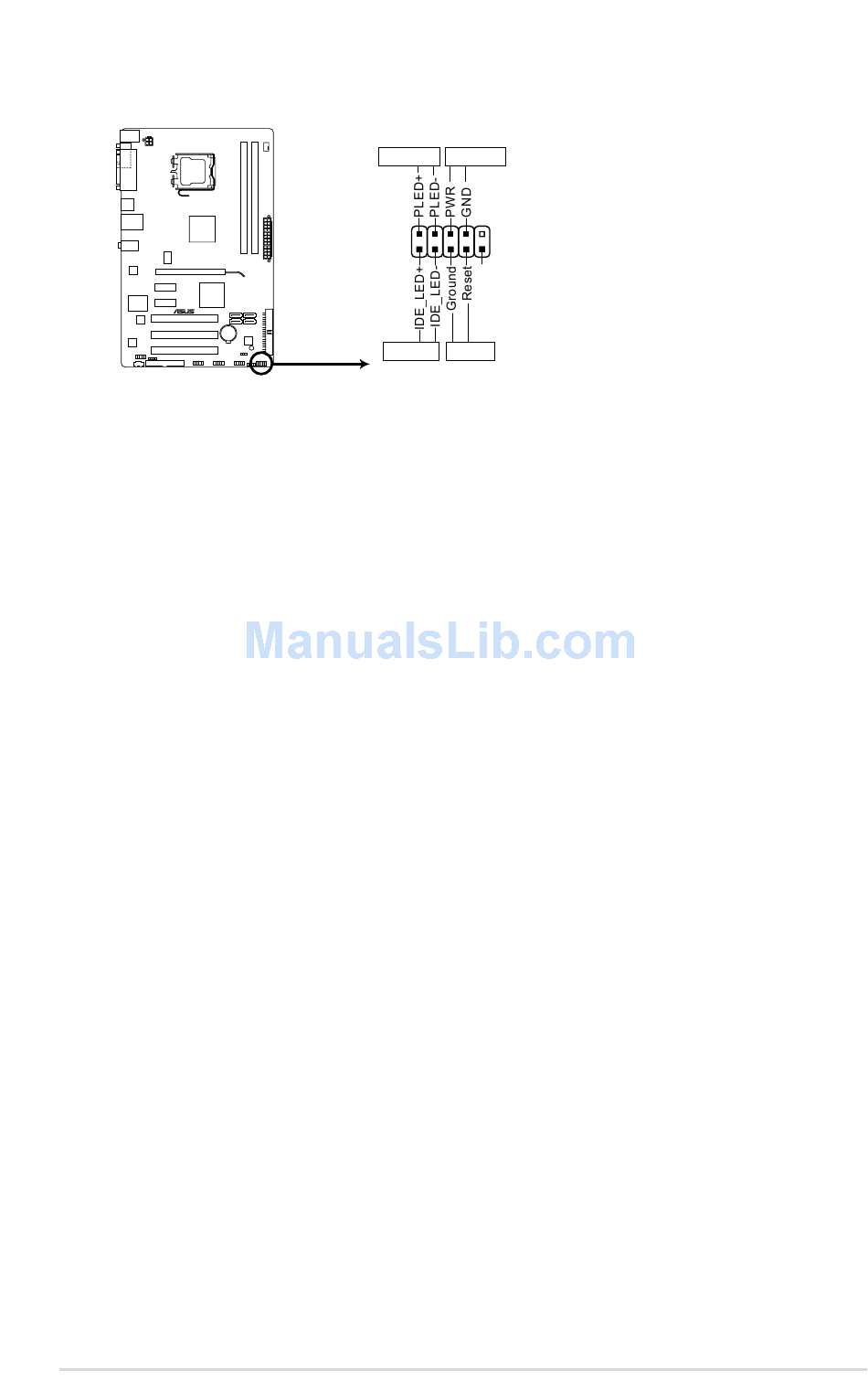

P5QL SE System panel connector
•.
System.power.LED.(2-pin.PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
•.
Hard.disk.drive.activity.LED.(2-pin.IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or flashes when data is read from or written to
the HDD.
•.
ATX.power.button/soft-off.button.(2-pin.PWRSW)
This connector is for the system power button. Pressing the power button turns
the system on or puts the system in sleep or soft-off mode depending on the BIOS
settings. Pressing the power switch for more than four seconds while the system is ON
turns the system OFF.
•.
Reset.button.(2-pin.RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
ASUS P5QL SE
PWR LED
PWR BTN
F_PANEL
PIN 1
HD_LED
RESET
1-25
