7..

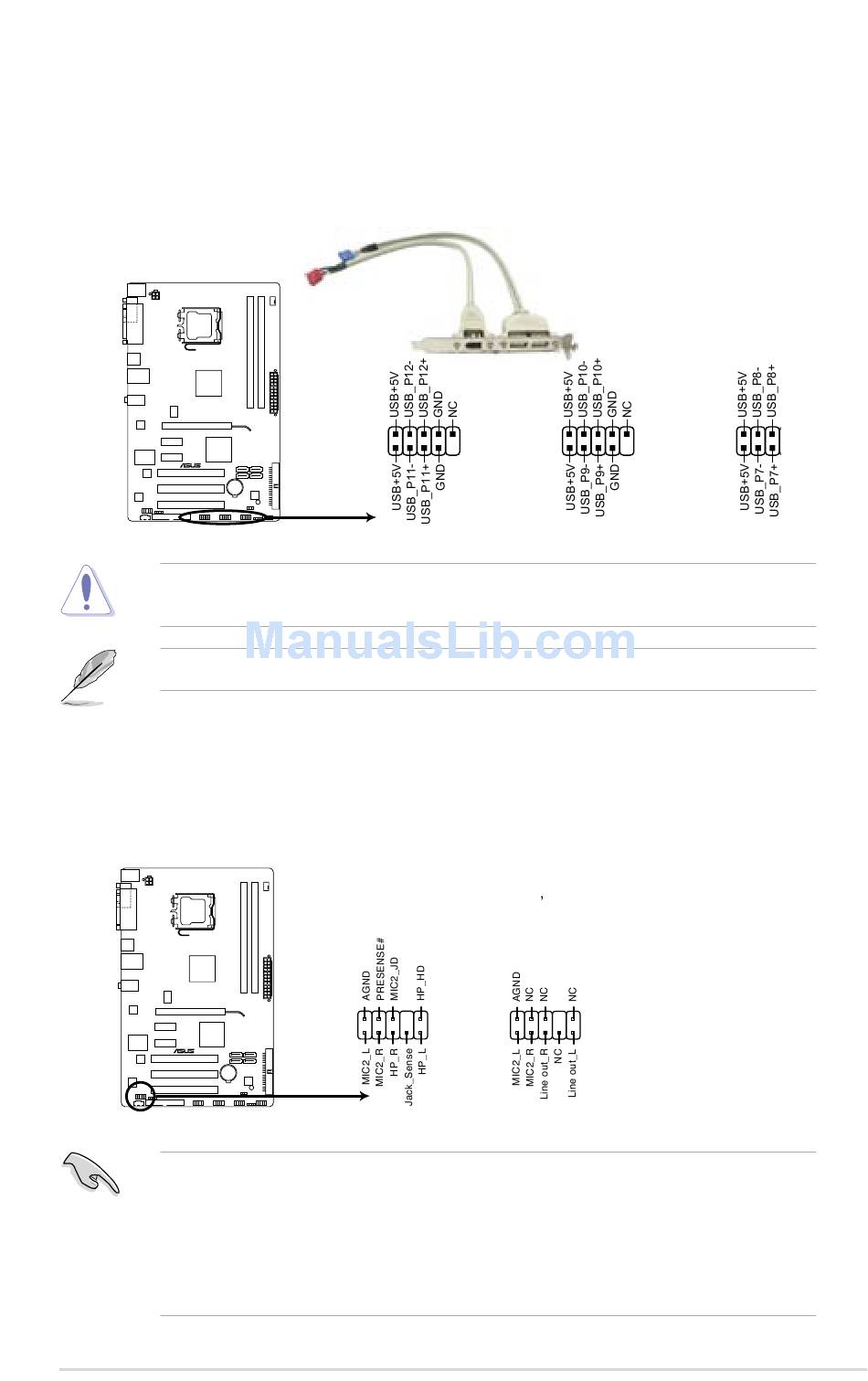

USB.connectors.(10-1.pin.USB78,.USB910,.USB1112)
These connectors are for USB 2.0 ports. Connect a USB module cable to any of these
connectors, then install the module to a slot opening at the back of the system chassis.
These USB connectors comply with USB 2.0 specification that supports up to 480Mbps
connection speed.
P5QL SE
P5QL SE USB2.0 connectors
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module cable is purchased separately.
8..
Front.panel.audio.connector.(10-1.pin.AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
P5QL SE
P5QL SE Analog front panel connector
• We recommend that you connect a high-definition front panel audio module to this
connector to get the motherboard's high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector, set
the Front.Panel.Type item in the BIOS setup to [HD.Audio];.if you want to connect an
AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this
item is set to [HD.Audio]..See section 2.4.3.Chipset for details.
ASUS P5QL SE
USB1112
PIN 1
Azalia-compliant
pin definition
AAFP
USB910
PIN 1
Legacy AC 97-compliant
pin definition
USB78
PIN 1
1-23
