LED Indicators
• PWR (Green) - Power indicator
• Data (Red) - Data sent and received indicator
• 10/100 (Green) - Network signal indicator. When illuminated,
network connection is present.
• LED (Red) - Device status indicator. When operating under normal
status, this LED will blink once per second.

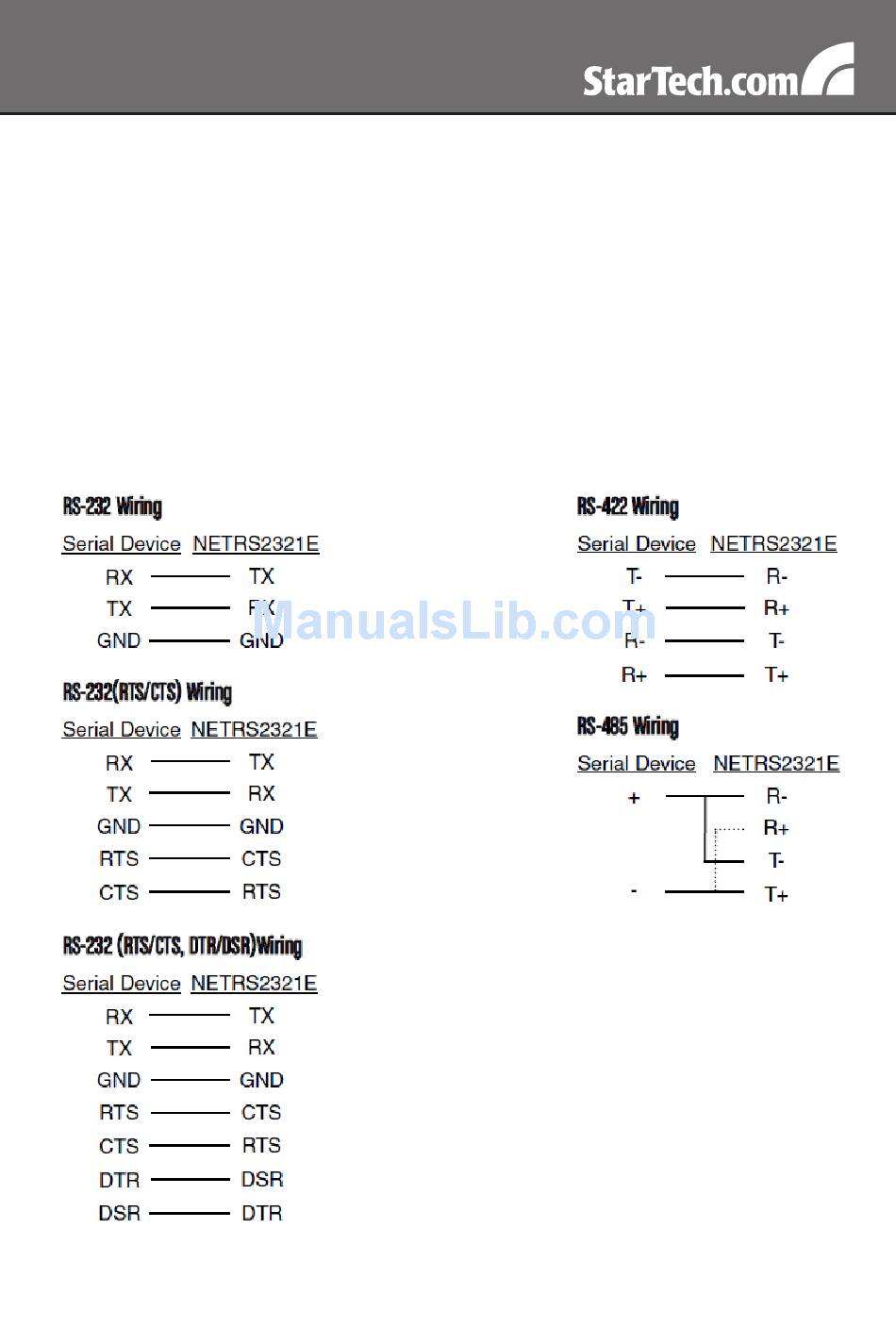

Wiring Architecture
