StarTech.com PEX10000SRI Quick Start Manual

Quick-start guide
1-Port 10G SFP+ Fiber Optic Network Card - PCIe - Intel Chip - MM
PEX10000SRI
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Introduction
To experience reliable high-performance network connectivity over
multi-mode fiber, you can use the PEX10000SRI to add a 10GBase-SR
port to your server or workstation. This SFP+ network card offers up
to 10Gbps of network speed and features the Intel® 82599 chipset.
The PEX10000SRI can be mounted in both low-profile and full-profile
computer systems.

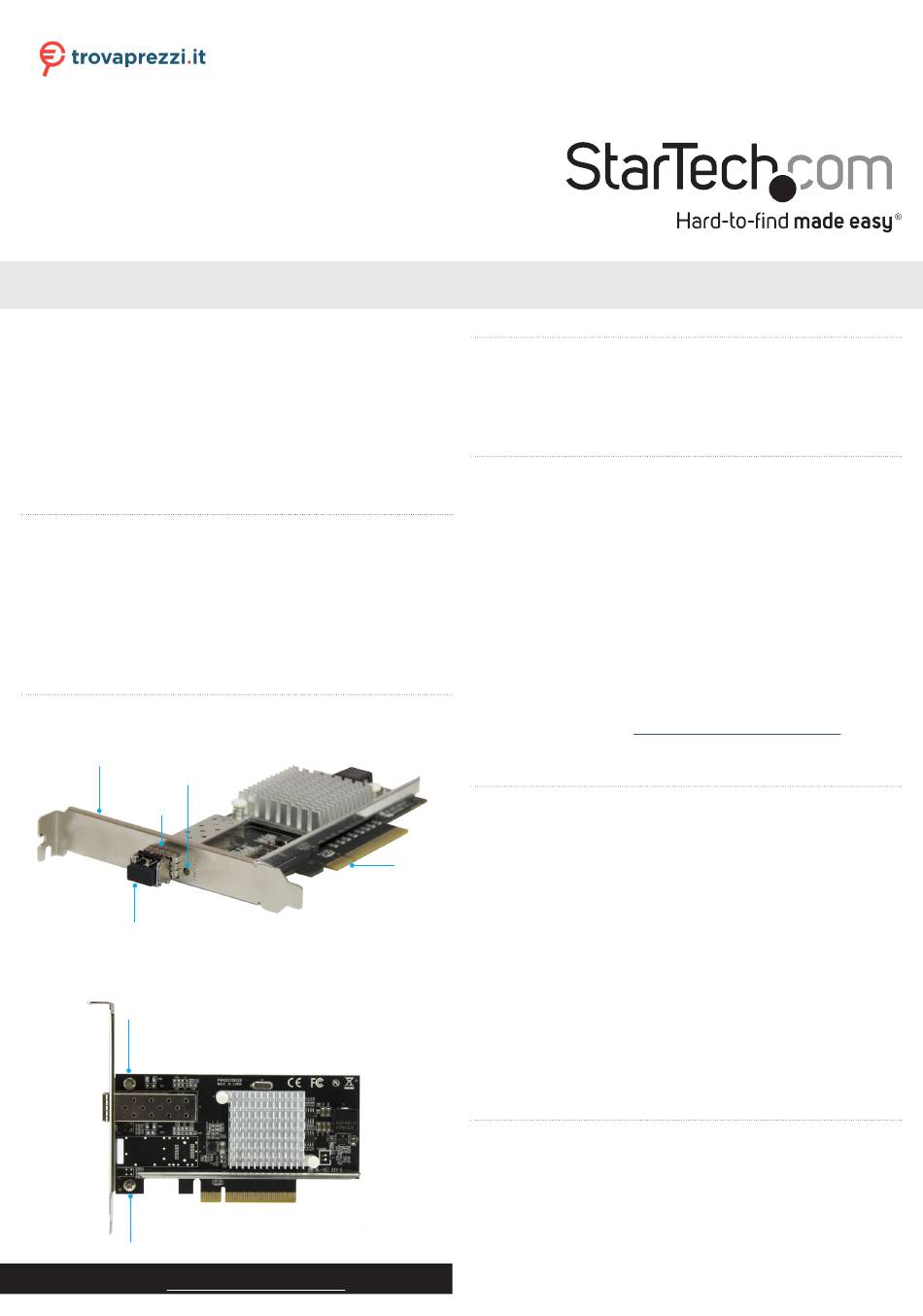

Product diagram
Mounting bracket
(full-profile pictured)
Link or activity LED
SFP+ slot
10GBase-SR SFP+
transceiver module
Bracket screw
Bracket screw
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/PEX10000SRI.
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
PEX10000SRI o cerca il tuo prodotto tra le
PCIe x8
connector
*actual product may vary from photos
migliori offerte di Schede di Rete
Package contents
• 1 x 10G SFP+ fiber network card
• 1 x 10GBase-SR SFP+ transceiver module (preinstalled)
• 1 x low-profile bracket
• 1 x quick-start guide
System requirements
• PCI Express® enabled computer with an available PCI Express slot
(x8 or x16)
• Any of the following operating systems:
• Windows® 10 (32-bit and 64-bit)
• Windows 8.1 (32-bit and 64-bit)
• Windows 8 (32-bit and 64-bit)
• Windows 7 (32-bit and 64-bit)
• Windows Server® 2008 R2
• Windows Server 2012
• Linux® Kernel 2.6.24 and later
• Microsoft® Hyper-V®
• Phillips head screwdriver (optional)
System requirements are subject to change. For the latest
requirements, please visit www.StarTech.com/PEX10000SRI.
Install the low-profile bracket
The PEX10000SRI can be mounted in both low-profile and
full-profile computer systems. The full-profile bracket comes
preinstalled, but you can install the low-profile bracket instead.
1. Remove the 10GBase-SR SFP+ transceiver module from the
SFP+ slot on the SFP+ network card.
2. Use a Phillips head screwdriver to remove the two bracket screws
from the PEX10000SRI.
3. Remove the full-profile bracket from the SFP+ network card.
4. Line up the low-profile bracket with the bracket holes on the back
of the SFP+ network card.
5. Insert the two bracket screws that you removed in step 2 and
tighten them into place.
6. Insert the 10GBase-SR SFP+ transceiver module into the SFP+
slot on the network card
Install the network card in a computer
Warning! PC components can be severely damaged by static
electricity. If an anti-static strap isn't available, discharge any built-
up static electricity by touching a large, grounded metal surface for
several seconds.
1. Turn off your computer and any devices or peripherals that are
connected to it (for example, printers, external storage, and
so on).
StarTech.com
Manual Revision: 07/15/2016
