Connecting Disk Array Power Cords

1. Connect a power cord to each of the three power receptacles on the rear of the disk array.
2. Plug the other end of the power cords into the cabinet power strips as shown in Figure 7.
NOTE The disk array cannot operate on a single power supply; consequently, the disk array will
shutdown if power to two of the power supplies is lost. However, by connecting the third
power supply to a different power strip, the disk array will shut down properly if power
is lost to the other two supplies. Connecting all three supplies to the same power strip
will not allow the disk array to shutdown properly if power to the strip is lost.

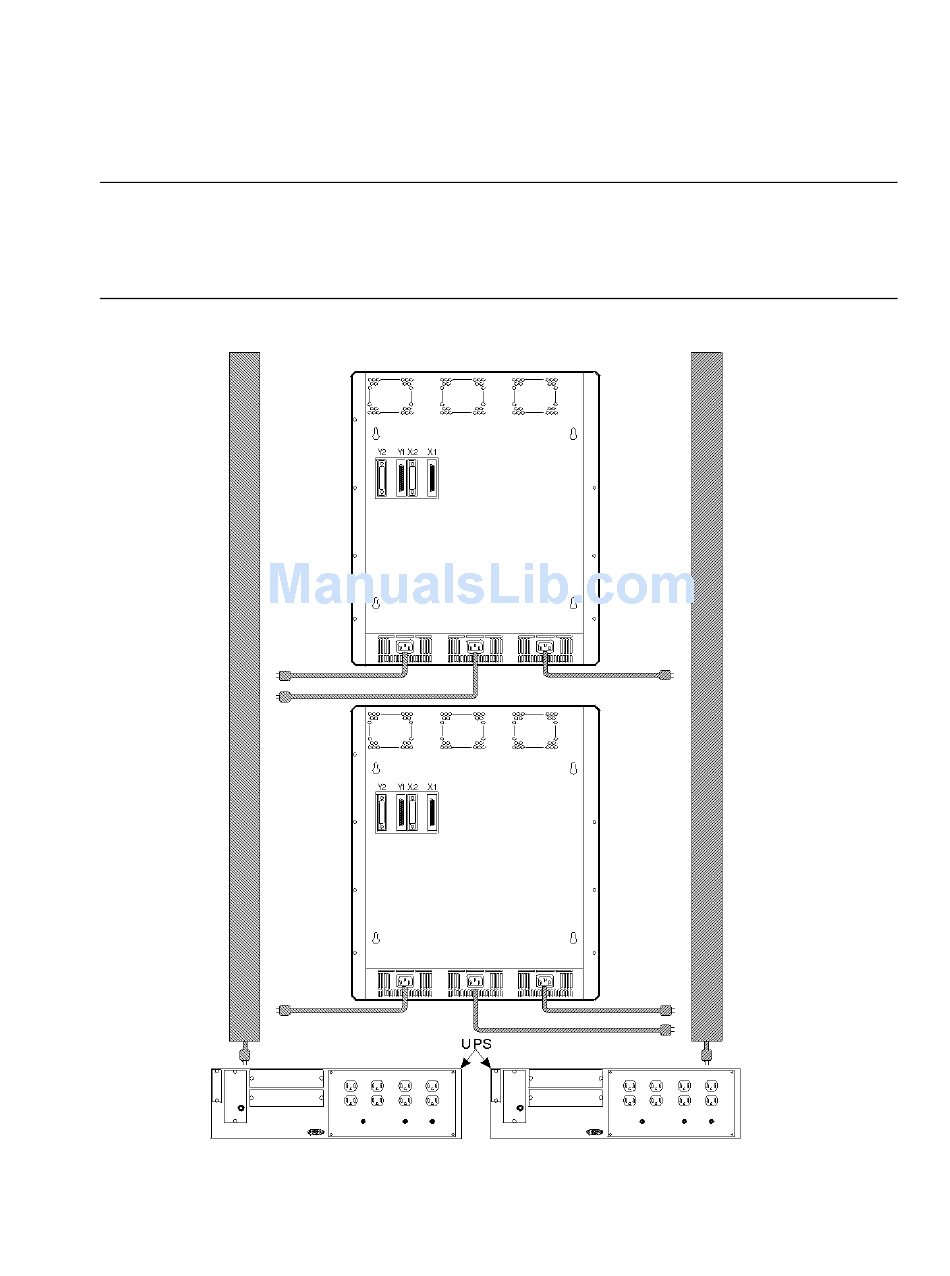

Figure 7. Connecting Disk Array Power Cables
