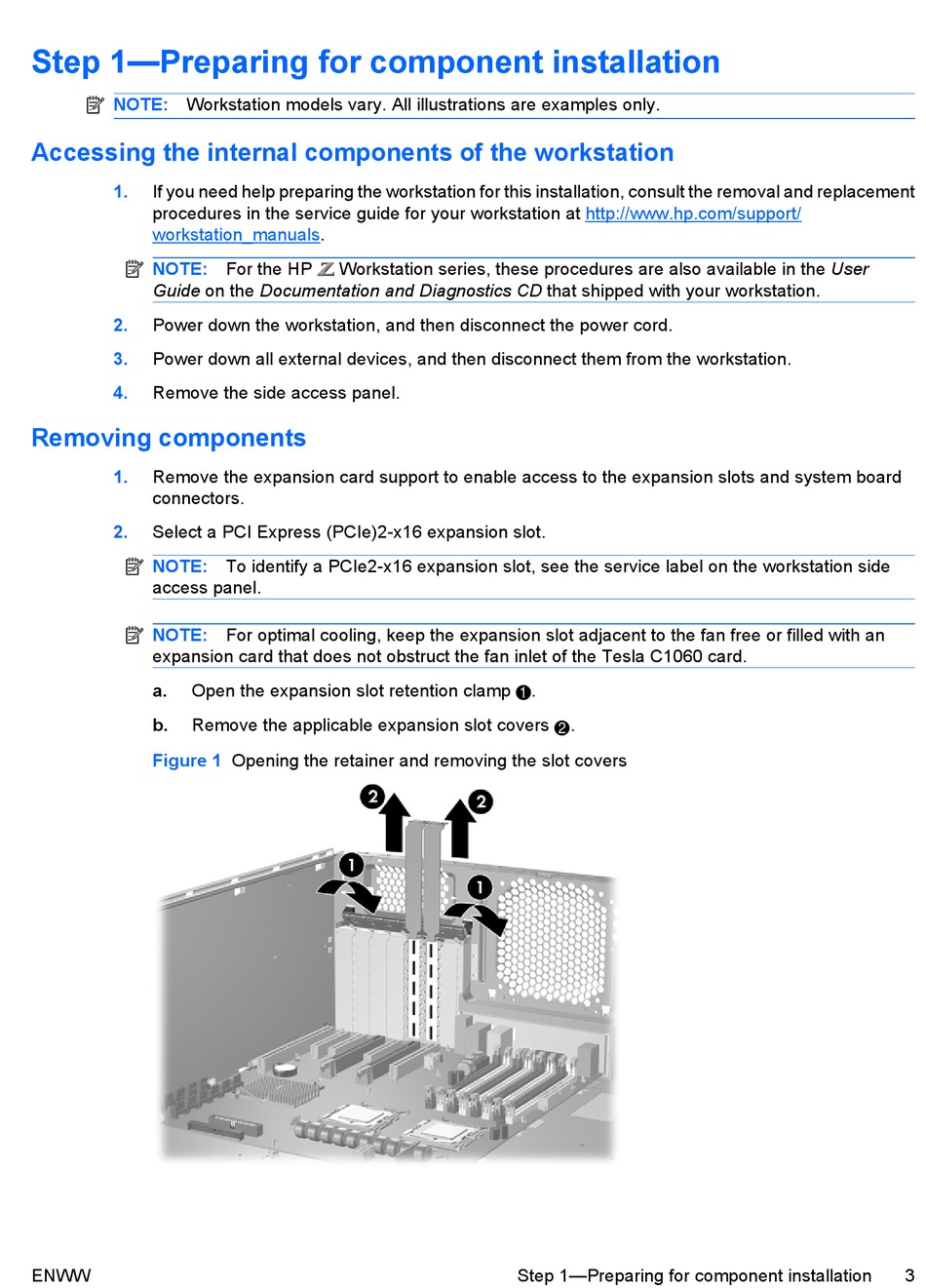

Step 1—Preparing for component installation
NOTE:
Workstation models vary. All illustrations are examples only.
Accessing the internal components of the workstation
1.
If you need help preparing the workstation for this installation, consult the removal and replacement
procedures in the service guide for your workstation at
workstation_manuals.
NOTE:
Guide on the Documentation and Diagnostics CD that shipped with your workstation.
2.
Power down the workstation, and then disconnect the power cord.
3.
Power down all external devices, and then disconnect them from the workstation.
4.
Remove the side access panel.

Removing components

1.
Remove the expansion card support to enable access to the expansion slots and system board
connectors.
2.
Select a PCI Express (PCIe)2-x16 expansion slot.
NOTE:
access panel.
NOTE:
expansion card that does not obstruct the fan inlet of the Tesla C1060 card.
a.
Open the expansion slot retention clamp
b.
Remove the applicable expansion slot covers
Figure 1
ENWW
For the HP
Workstation series, these procedures are also available in the User
To identify a PCIe2-x16 expansion slot, see the service label on the workstation side
For optimal cooling, keep the expansion slot adjacent to the fan free or filled with an
Opening the retainer and removing the slot covers
http://www.hp.com/support/
.
.
2
Step 1—Preparing for component installation
3
