Removing the Bezel Blank

On some models, a bezel blank covering the 5.25-inch external drive bay must be removed before
installing a drive. To remove a bezel blank:
1. Remove the computer cover and place it upside down on a stable surface.
2. Push the bezel blank outward from the center of the blank so that it is bowed out.
Figure 2-4
3. While keeping the bezel blank bowed out, push in on the end of the bezel blank nearest to the
power button until the end of the bezel blank is released. Remove the bezel blank from the computer
cover.
Figure 2-5
4. Replace the computer cover.
12 Chapter 2 Hardware Upgrades

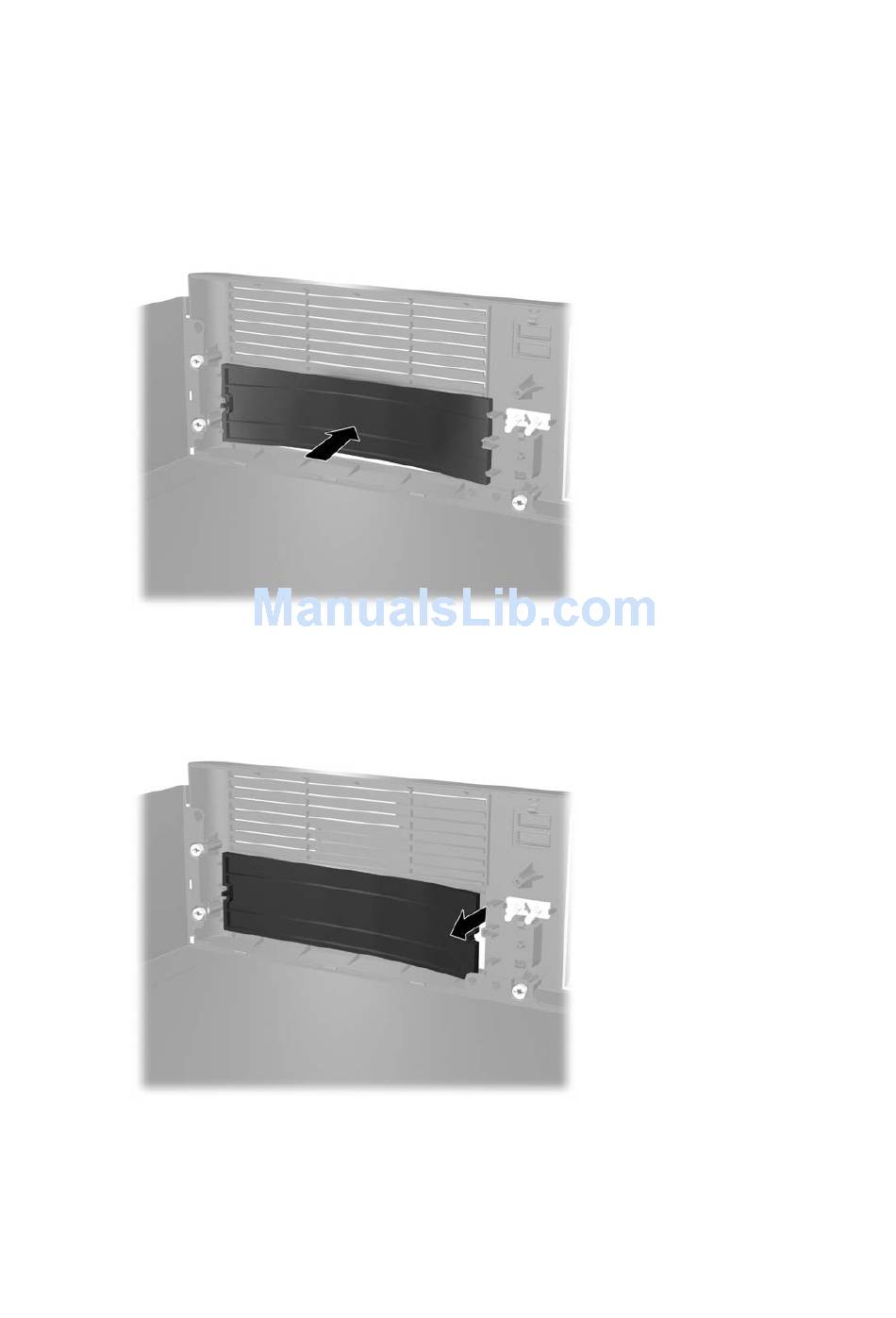

Beginning to Remove a Bezel Blank
Removing a Bezel Blank
