13. To install a new expansion card in the riser card, align the bracket on the expansion card with the
open slot on the rear of the chassis and press the card straight into the expansion socket.

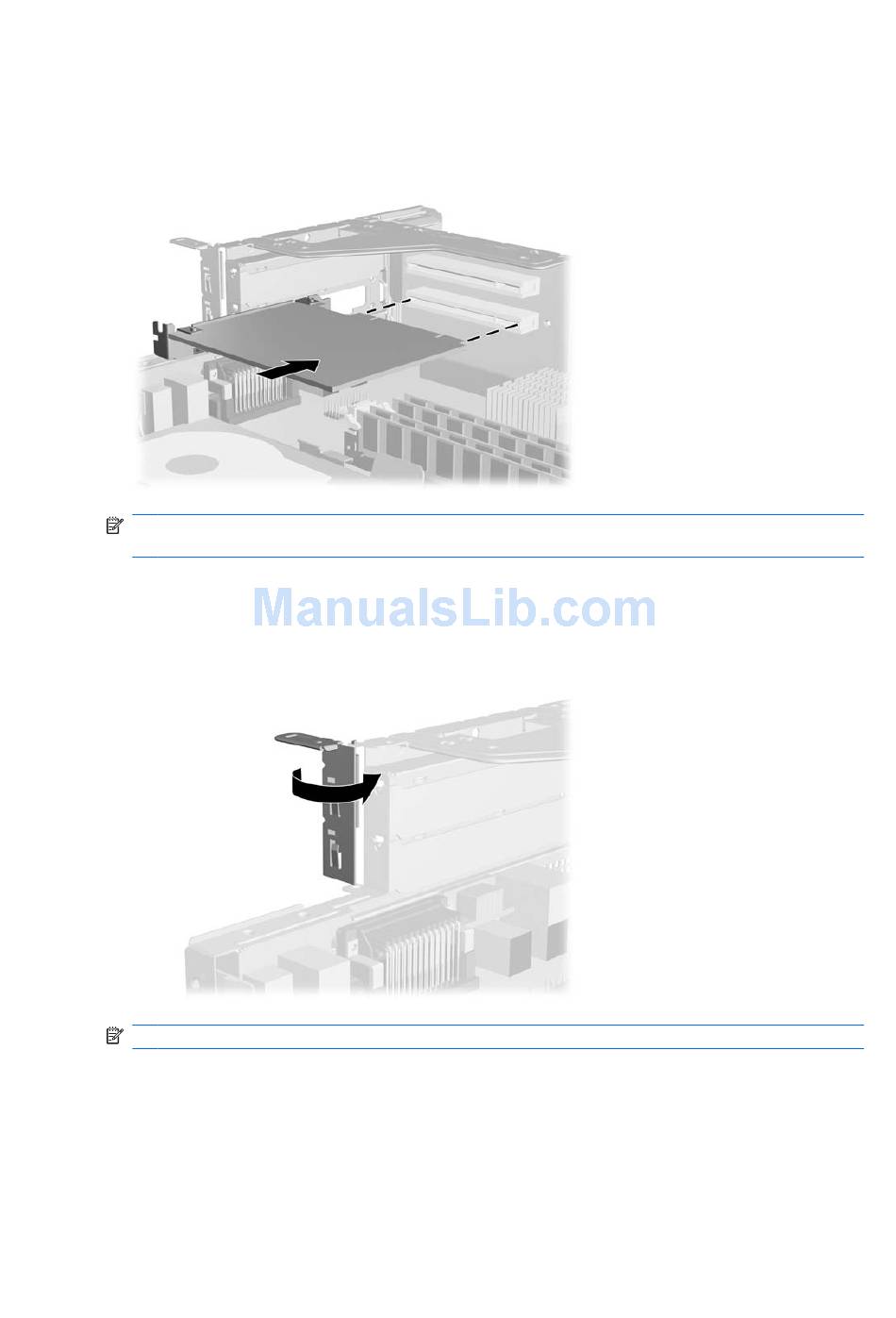

Figure 2-21
NOTE:
seats properly in the expansion card slot.
14. Close the slot cover retainer.
Figure 2-22
NOTE:
15. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
16. Return the power supply to the down position until it locks.
17. Replace the computer cover.
18. If the computer was on a stand, replace the stand.
19. Reconnect the power cord and any external devices, then turn on the computer.
26 Chapter 2 Hardware Upgrades
Installing a PCI Expansion Card
When installing an expansion card, press firmly on the card so that the whole connector
Closing the Riser Card Slot Cover Retainer
The slot cover retainer is secured in place by the computer cover.
