2.10.2 I/O Shield

The back panel I/O shield for the board must meet specific dimension and material requirements.
Systems based on this board need the back panel I/O shield to pass certification testing. Figure 26
shows the I/O shield for boards with the 8-channel (7.1) audio subsystem. Figure 27 shows the I/O
shield for boards with the 6-channel (5.1) audio subsystem. Dimensions are given in millimeters
[inches]. The figures also indicate the position of each cutout. Additional design considerations for
I/O shields relative to chassis requirements are described in the ATX specification.
NOTE
The I/O shield drawings in this document are for reference only. I/O shields compliant with the
ATX chassis specification 2.03 are available from Intel.
9.65
[0.380]
Ø 1.00
[0.039]
0.00
[0.00]
9.18
[0.36]
9.40
[0.370]

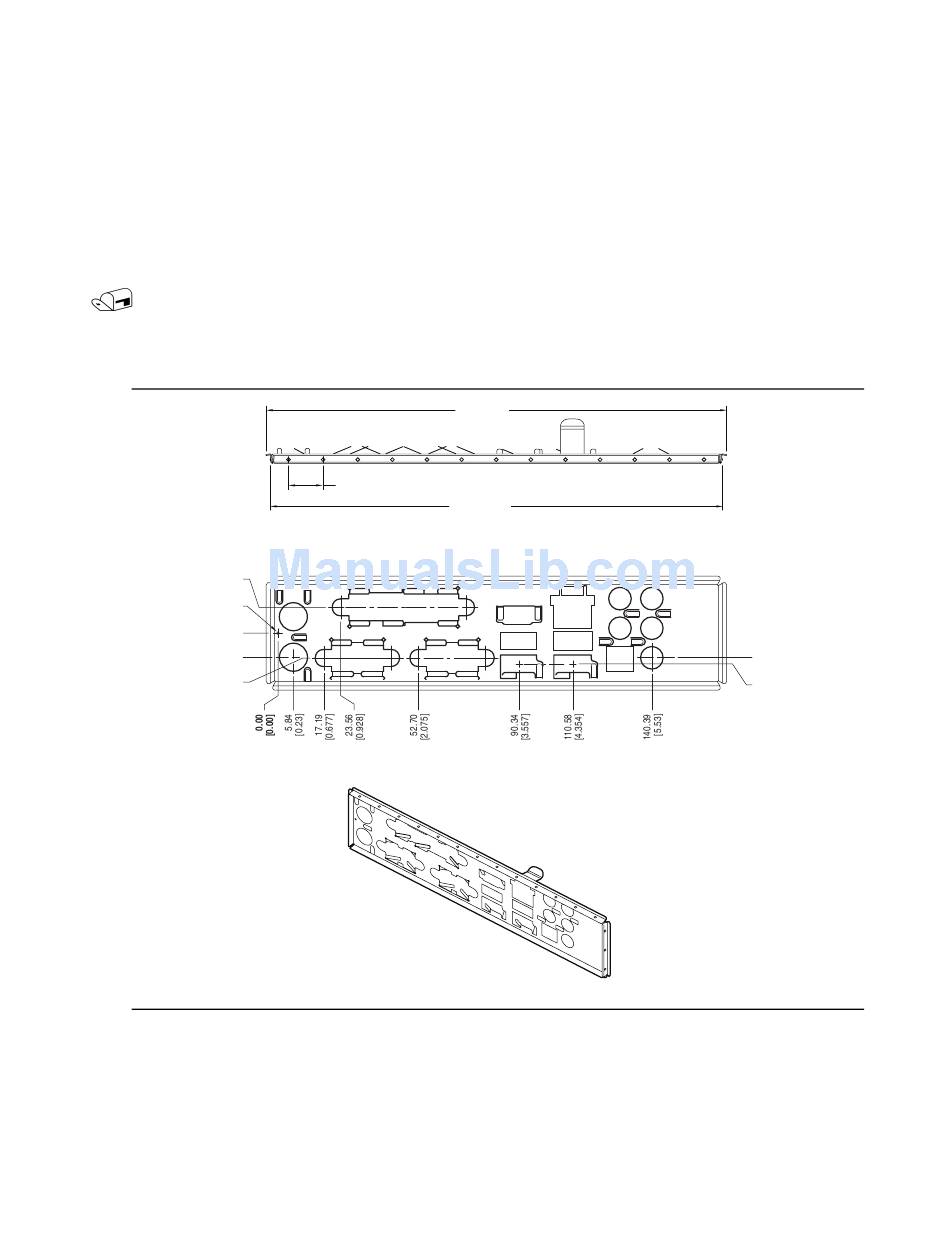

Figure 26. I/O Shield Dimensions for Boards with the 8-Channel (7.1) Audio Subsystem
66
172.93 REF
[6.808]
13.00 TYP
[0.512]
+0.12
169.98
- 0.13
+ 0.004
[6.692 ]
- 0.005
9.18
[0.361]
11.55
[0.455]
Pictorial
View
OM17948
