Intel D945GCZ Specification Update
Desktop board
Hide thumbs
Also See for D945GCZ:
- Technical product specification (92 pages) ,
- Product manual (70 pages)
Advertisement
Quick Links
Intel® Desktop Board
D945GCZ
Specification Update
December 2007
Order Number D23991-007US
The Intel
®
Desktop Board D945GCZ may contain design defects or errors known as errata, which may cause the product to deviate
from published specifications. Current characterized errata are documented in this Specification Update.
Advertisement
Related Manuals for Intel D945GCZ
Summary of Contents for Intel D945GCZ

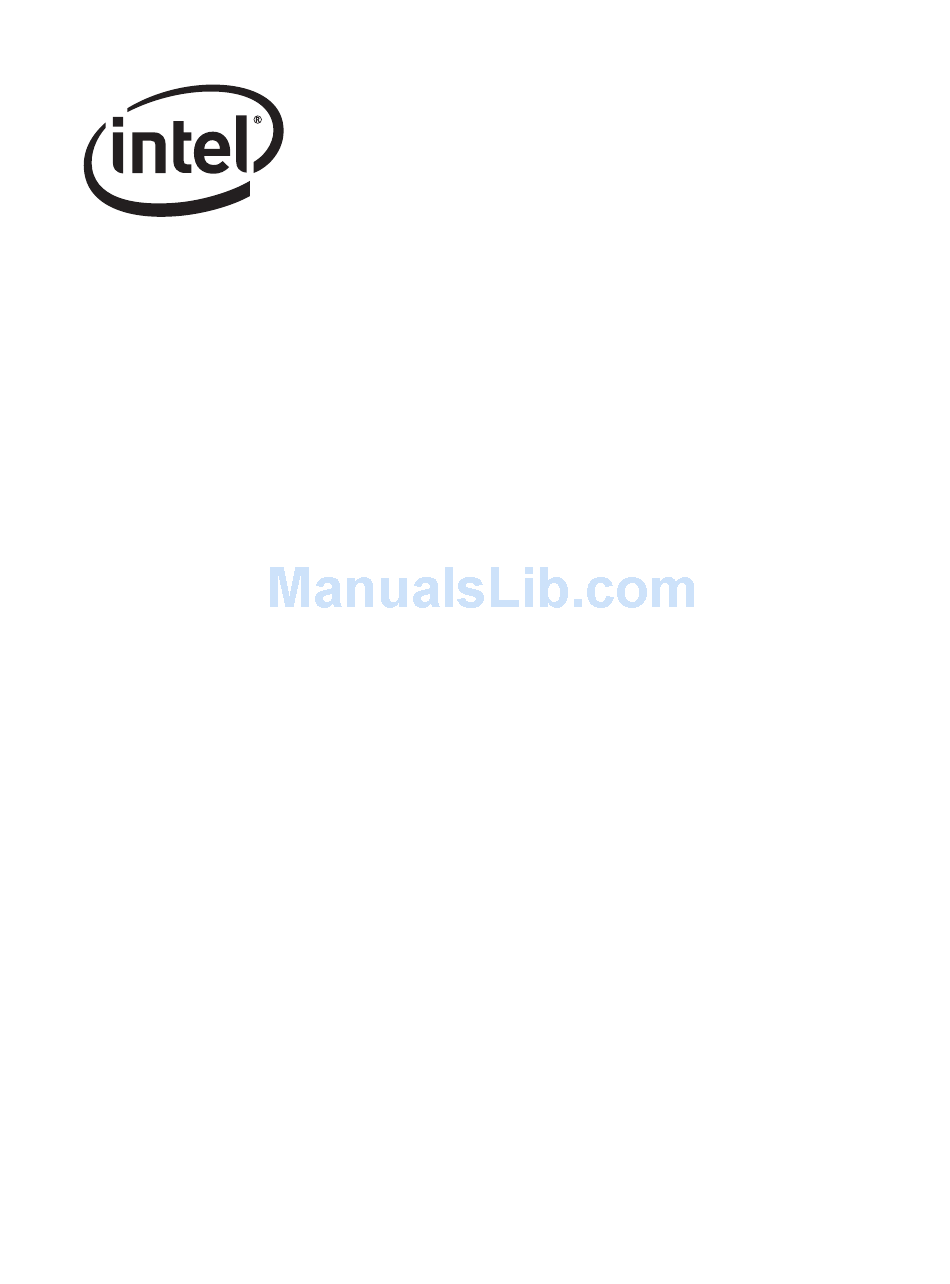

- Page 1 Specification Update December 2007 Order Number D23991-007US The Intel ® Desktop Board D945GCZ may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are documented in this Specification Update.
-
Page 2: Revision History
Desktop Board D945GCZ may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request. Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order. -
Page 3: Table Of Contents
Contents ® Specfication Update for the Intel Desktop Board D945GCZ Terminology .................... 5 General Information ................. 5 Summary of Changes ................7 Specification Changes ................8 Errata..................... 9 Intel Desktop Board D945GCZ Specification Update... -
Page 4: Specfication Update For The Intel Desktop Board D945Gcz
82801GR ICH7R I/O Controller Hub and that may apply to the desktop board D945GCZ. Unless otherwise noted in this document, it should be assumed that any ICH 7 errata for a given stepping are applicable to the Altered Assembly (AA) revision(s) associated with that stepping. -
Page 5: Terminology
Documentation Changes include typos, errors, or omissions from the current published specifications. These changes will be incorporated in the next release of the specifications. General Information Basic Desktop Board D945GCZ Identification Information AA Revision BIOS Revision Notes C99368-402 NT94510J,86A.0980... - Page 6 The AA number is found on a small label on the component side of the board. The 82945P Chipset kit used on this AA revision consists of two components as follows: Device Stepping S-Spec Numbers 82945G GMCH SL8FU 82801GB ICH7 SL8FX 82801GR ICH7R SL8FY Intel Desktop Board D945GCZ Specification Update...
-
Page 7: Summary Of Changes
Clarifications, or Documentation Changes that apply to the Intel Desktop Board D945GCZ. Intel intends to fix some of the errata in a future revision of the desktop board, and to account for the other outstanding issues through documentation or specification changes as noted. -
Page 8: Specification Changes
10/100/1000 IEEE 802.3 compliant • Compliant to IEEE 802.3x flow control support • TCP, IP, UDP checksum offload • Transmit TCP segmentation • Advanced packet filtering • Full device driver compatibility • PCI Express Power Management Support Intel Desktop Board D945GCZ Specification Update... -
Page 9: Errata
The Hardware Monitoring and Fan Control may only support up to 3.6V ROBLEM on its Pulse Width Modulation (PWM) outputs. The 4-pin fans used with the Intel Desktop board could have a pull up voltage as high as 5.25V, potentially causing failures in the circuit used for fan control on this Intel Desktop Board.
